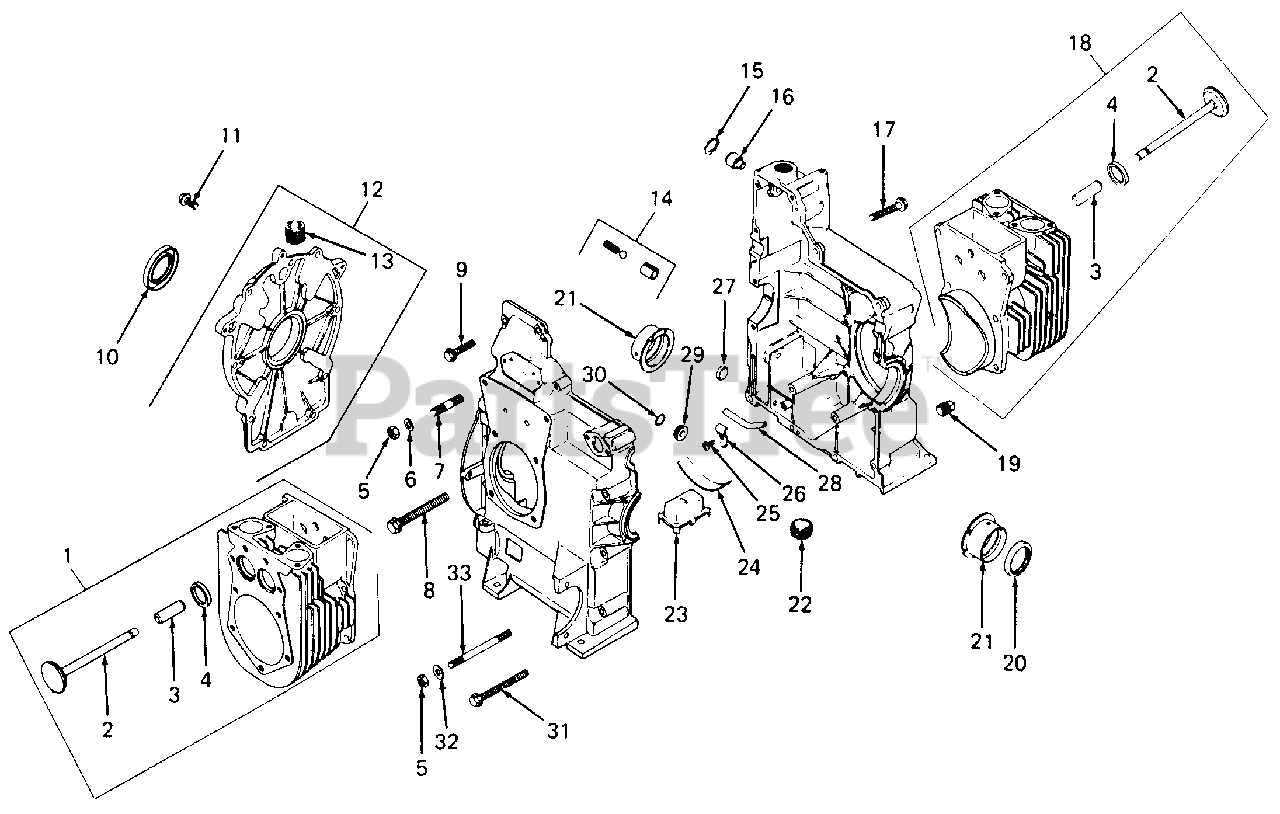

2082 (140-731-100) - Cub Cadet Super Garden Tractor (SN: 800000 - 821059) Crankcase Parts Diagram

Super Garden Tractor

Crankcase Parts Diagram

  • Title

Cub Cadet KH-49584

Engine, Complete

$

$

Currently unavailable

Cub Cadet KH-52-522-79

Short Block

$

$

Not available

1

Cub Cadet KH-82-755-19

Kit, #2 Cylinder Barrel

Note: (Includes Ref No. 2, 3 & 4)

$

$

Not available

2

Cub Cadet KH-52-016-06

Valve, Exhaust

$

$

Not available

3

Cub Cadet KH-52-316-06

Guide, Valve
(Superseded to KH-52-316-08)

$

$

Not available

4

Cub Cadet KH-52-031-01

Insert, Valve Seat

$

$

Not available

5

Cub Cadet KH-X-82-2

Nut, Hex, 5/16-18

$

$

Not available

6

Cub Cadet KH-52-468-12

Washer, Flat, 5/16

$

$

Not available

7

Cub Cadet KH-52-072-12

Stud, Step, 5/16-18 X .75, 3/8-16 X .62, 2.0 Lg

$

$

Not available

8

Cub Cadet KH-25-086-13

Screw, Hex Flange, 3/8-16 X 3.62 Lg

$

$

Not available

9

Cub Cadet KH-25-086-10

Screw, Hex Flange, 5/16-18 X 1.5 Lg

$

$

Not available

10

Cub Cadet KH-52-032-08

Seal, Rear Oil
(Superseded to KH-25-032-06-S)

$10.99

$

In Stock, Qty 20+

0

11

Cub Cadet KH-X-802-9

Screw, Wash Hd, 5/16-18 X 1.0 Lg

$

$

Not available

12

Cub Cadet KH-52-755-56

Kit, Closure Plate

Note: (Includes Ref No. 13)

$

$

Not available

13

Cub Cadet KH-X-75-23

Plug, Hex Ctsk, 1/8 NPTF
(Superseded to KH-25-139-60-S)

$3.49

$

In Stock, only 2 left!

0

14

Cub Cadet KH-52-755-50

Kit, Oil Relief

$

$

Not available

15

Cub Cadet KH-X-269-43

Ring, Retaining

$

$

Not available

16

Cub Cadet KH-52-078-05

Shaft, Governor

$

$

Not available

17

Cub Cadet KH-25-086-12

Screw, Hex Flange, 5/16-18 X 2.0 Lg

$

$

Not available

18

Cub Cadet KH-82-755-18

Kit, #1 Cylinder Barrel

Note: (Includes Ref No. 2, 3 & 4)

$

$

Not available

19

Cub Cadet KH-X-75-32

Plug, Hex Ctsk, 3/8 NPTF
(Superseded to KH-25-139-62-S)

$3.49

$

In Stock, only 2 left!

0

20

Cub Cadet KH-52-032-10

Seal, Front Oil
(Superseded to KH-52-032-10-S)

$23.99

$

In Stock, only 1 left!

0

21

Cub Cadet KH-52-030-10

Bearing, Sleeve (Std)
(Superseded to KH-52-030-10-S)

$120.99

$

Usually ships in 2-5 days

0

Cub Cadet KH-52-030-11

Bearing, Sleeve (.10)
(Superseded to KH-52-030-11-S)

$240.99

$

Usually ships in 2-5 days

0

Cub Cadet KH-52-030-12

Bearing, Sleeve (.20)

$

$

Not available

22

Cub Cadet KH-52-139-02

Plug, Bottom Drain, 3/8

$

$

Not available

23

Cub Cadet KH-52-095-03

Housing, Oil Pickup

$

$

Not available

24

Cub Cadet KH-52-237-02

Clamp, Spring

$

$

Not available

25

Cub Cadet KH-67-64

Screw, Hex Wash Hd, #10-32 X .43 Lg

$

$

Currently unavailable

26

Cub Cadet KH-52-237-05

Clamp, Tube

$

$

Not available

27

Cub Cadet KH-X-702-15

Plug, Cup
(Superseded to KH-25-139-46-S)

$2.99

$

Usually ships in 2-5 days

0

28

Cub Cadet KH-52-123-10

Tube, Oil Pickup

$

$

Not available

29

Cub Cadet KH-52-139-08

Plug, 3/4 OD

$

$

Not available

30

Cub Cadet KH-52-141-02

O-Ring

$

$

Not available

31

Cub Cadet KH-25-086-11

Screw, Hex Flange, 5/16-18 X 3.5 Lg

$

$

Not available

32

Cub Cadet KH-41-468-01

Washer, Plain

$

$

Not available

33

Cub Cadet KH-X-352-33

Stud, 5/16-18 X 4.12 Lg

$

$

Not available

Cub Cadet KH-52-755-94

Gasket Set
(Superseded to KH-25-755-37-S)

$225.99

$

Usually ships in 2-5 days

0
