20818 - Toro 48cm Recycler Walk-Behind Mower (SN: 220000001 - 220999999) (2002) ENGINE AND BLADE ASSEMBLY Parts Diagram

48cm Recycler Walk-Behind Mower

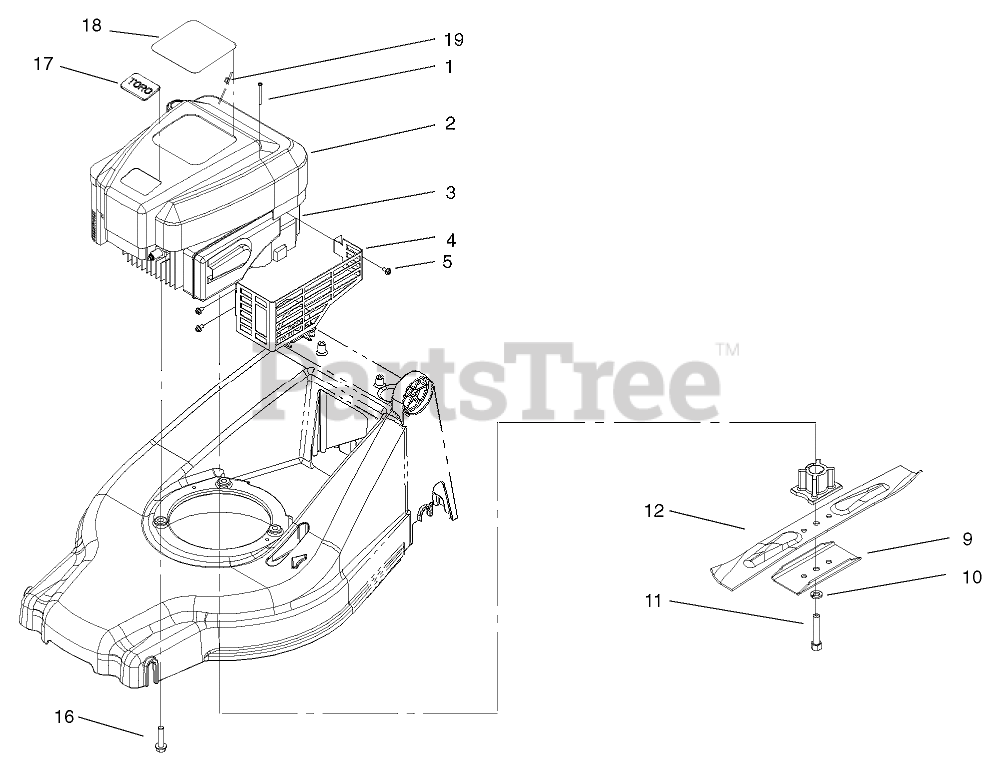

ENGINE AND BLADE ASSEMBLY Parts Diagram

  • Title

1

Toro 32144-121

SCREW-PPH
(Superseded to 32144-88)

$1.99

$

In Stock, only 2 left!

0

2

Toro 93-0243

SHROUD-ENGINE

$59.99

$

Usually ships in 3-6 days

0

3

Engine-B & S 12F802-1770-B1

$

$

Not available

4

Toro 104-7577-03

SHIELD-MUFFLER

$26.99

$

Usually ships in 3-6 days

0

5

Toro 104-2065

SCREW-HWH

$0.99

$

In Stock, Qty 20+

0

9

Toro 80-0510-03

STIFFENER-BLADE

$19.99

$

In Stock, Qty 7

0

10

Toro 3253-22

WASHER-LOCK

$2.99

$

In Stock, only 3 left!

0

11

Toro 100-4368

BOLT-BLADE

$20.99

$

Usually ships in 3-6 days

0

12

Toro 71-9260-03

BLADE

$34.99

$

Usually ships in 3-6 days

0

13

Toro 104-7554

RETAINER-BLADE

$

$

Not available

16

Toro 32144-102

SCREW-HWH

$3.49

$

Usually ships in 3-6 days

0

17

Toro 92-2289

PLATE-LOGO
(Superseded to 98-3206)

$2.49

$

In Stock, only 2 left!

0

18

Toro 100-5952

Decal-Engine (only on: 20814)

$

$

Not available

18

Toro 100-9122

Decal-Engine (only on: 20818)

$42.99

$

Usually ships in 3-6 days

0

19

Toro 2210-316

STOP-ROPE

$7.99

$

Usually ships in 3-6 days

0
