20818 - Toro 48cm Recycler Walk-Behind Mower (SN: 210000001 - 210999999) (2001) GOVERNOR ASSEMBLY BRIGGS AND STRATTON MODEL 12F802-1770-B1 Parts Diagram

48cm Recycler Walk-Behind Mower

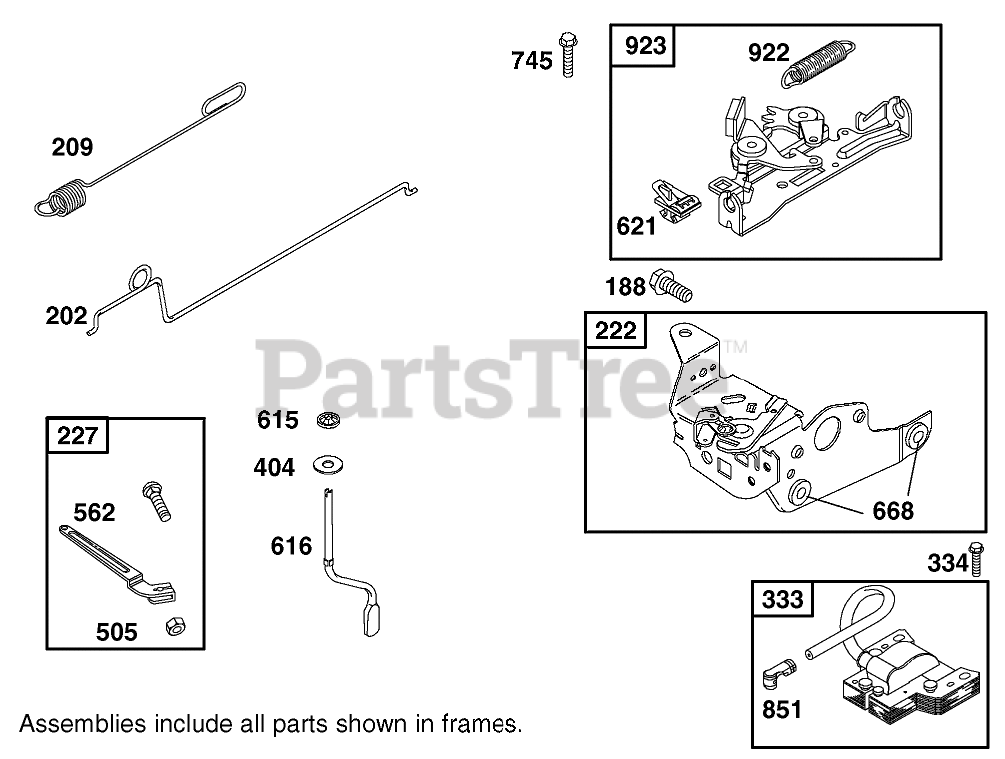

GOVERNOR ASSEMBLY BRIGGS AND STRATTON MODEL 12F802-1770-B1 Parts Diagram

  • Title

188

Briggs & Stratton 690877

Screw

$3.99

$

In Stock, Qty 5

0

202

Briggs & Stratton 691829

Link-Governor, Mechanical

$8.49

$

Usually ships in 2-12 days

0

209

Briggs & Stratton 691852

Spring-Governor

$8.49

$

Usually ships in 2-12 days

0

222

Briggs & Stratton 692467

Bracket-Control
(Superseded to 793754)

$43.99

$

Usually ships in 2-12 days

0

227

Briggs & Stratton 690783

Lever-Control, Governor

$15.99

$

Usually ships in 2-12 days

0

333

Briggs & Stratton 802574

Armature-Magneto
(Superseded to 590454)

$57.99

$

In Stock, Qty 20+

0

334

Briggs & Stratton 691061

Screw

$3.49

$

In Stock, Qty 20+

0

404

Briggs & Stratton 690272

Washer

$3.99

$

In Stock, only 1 left!

0

505

Briggs & Stratton 231082

Nut (Governor Control Lever)
(Superseded to 691251)

$3.49

$

In Stock, Qty 9

0

562

Briggs & Stratton 92613

Bolt

$

$

Not available

615

Briggs & Stratton 690340

Retainer-Shaft, Governor

$4.49

$

In Stock, Qty 10

0

616

Briggs & Stratton 691306

Crank-Governor
(Superseded to 698801)

$10.99

$

Usually ships in 2-12 days

0

621

Briggs & Stratton 692310

Switch-Stop

$5.99

$

In Stock, Qty 20+

0

668

Briggs & Stratton 493823

Spacer (Includes 2)

Note: Included in Engine Gasket Set-Ref. 358.

$6.49

$

In Stock, only 1 left!

0

745

Briggs & Stratton 691648

Screw

$4.99

$

Usually ships in 2-12 days

0

851

Briggs & Stratton 493880

Terminal-Spark Plug
(Superseded to 493880S)

$3.49

$

In Stock, Qty 20+

0

922

Briggs & Stratton 691831

Spring-Brake

$10.99

$

In Stock, only 2 left!

0

923

Briggs & Stratton 691994

Brake ASM
(Superseded to 796387)

$

$

Not available
