20817 - Toro 48cm Recycler Walk-Behind Mower (SN: 230000001 - 230999999) (2003) STARTER ASSEMBLY BRIGGS AND STRATTON MODEL 12H802-1720-B1 Parts Diagram

48cm Recycler Walk-Behind Mower

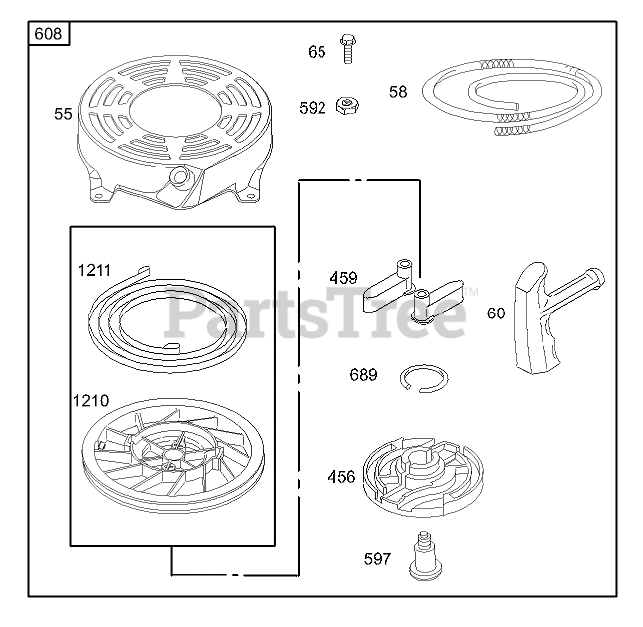

STARTER ASSEMBLY BRIGGS AND STRATTON MODEL 12H802-1720-B1 Parts Diagram

  • Title

55

Briggs & Stratton 691421

Housing-Starter, Rewind

Note: Obtain parts from www.briggsandstratton.com

$64.99

$

Usually ships in 2-12 days

0

58

Briggs & Stratton 280399

Rope?Starter (Cut to Required Length)
(Superseded to 280399S)

Note: Obtain parts from www.briggsandstratton.com

$5.99

$

In Stock, Qty 8

0

60

Briggs & Stratton 281434

Grip-Rope, Starter
(Superseded to 281434S)

Note: Obtain parts from www.briggsandstratton.com

$3.99

$

In Stock, only 4 left!

0

65

Briggs & Stratton 690837

Screw

Note: Obtain parts from www.briggsandstratton.com

$3.49

$

In Stock, Qty 20+

0

456

Briggs & Stratton 692299

Plate-Friction, Pawl

Note: Obtain parts from www.briggsandstratton.com

$4.99

$

In Stock, only 2 left!

0

459

Briggs & Stratton 281505

Ratchet-Pawl
(Superseded to 281505S)

Note: Obtain parts from www.briggsandstratton.com

$3.49

$

In Stock, Qty 13

0

592

Briggs & Stratton 690800

Nut

Note: Obtain parts from www.briggsandstratton.com

$3.99

$

In Stock, Qty 13

0

597

Briggs & Stratton 691696

Screw

Note: Obtain parts from www.briggsandstratton.com

$11.99

$

In Stock, Qty 6

0

608

Briggs & Stratton 497680

Starter-Rewind

Note: Obtain parts from www.briggsandstratton.com

$49.99

$

In Stock, Qty 20+

0

689

Briggs & Stratton 691855

Spring-Friction

Note: Obtain parts from www.briggsandstratton.com

$4.49

$

In Stock, only 3 left!

0

1210

Briggs & Stratton 498144

Pulley and Spring ASM

Note: Obtain parts from www.briggsandstratton.com

$19.99

$

In Stock, Qty 20+

0

1211

Briggs & Stratton 498144

Pulley and Spring ASM

Note: Obtain parts from www.briggsandstratton.com

$19.99

$

In Stock, Qty 20+

0
