20817 - Toro 48cm Recycler Walk-Behind Mower (SN: 230000001 - 230999999) (2003) CARBURETOR ASSEMBLY BRIGGS AND STRATTON MODEL 12H802-1720-B1 Parts Diagram

48cm Recycler Walk-Behind Mower

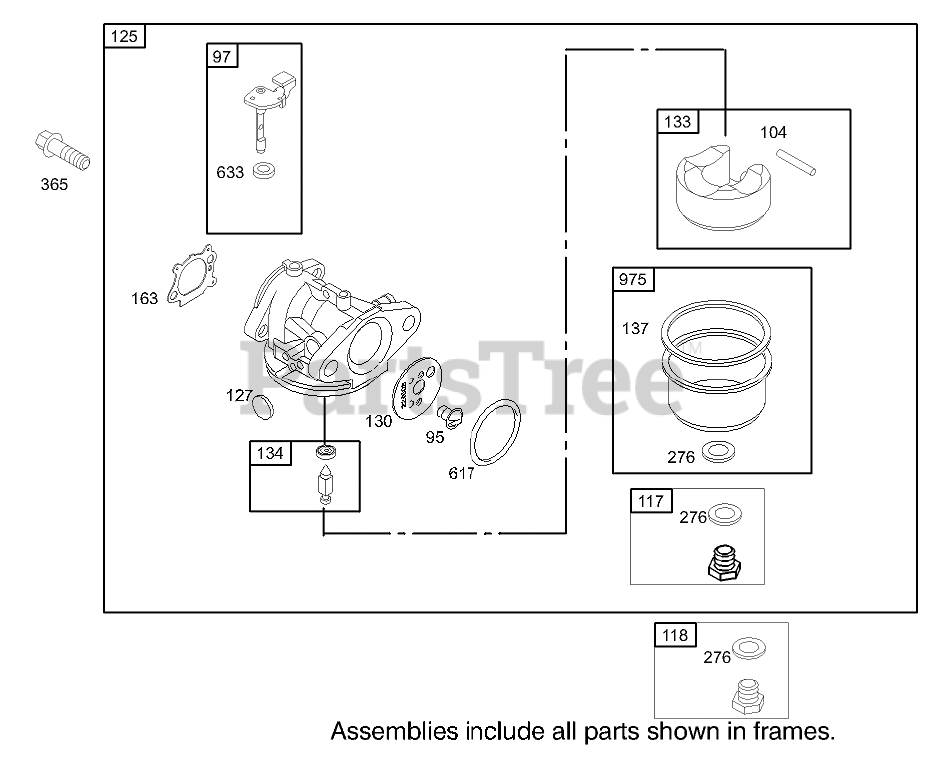

CARBURETOR ASSEMBLY BRIGGS AND STRATTON MODEL 12H802-1720-B1 Parts Diagram

  • Title

95

Briggs & Stratton 691636

Screw

Note: Obtain parts from www.briggsandstratton.com

$3.99

$

Usually ships in 2-12 days

0

97

Briggs & Stratton 696565

Shaft-Throttle

Note: Obtain parts from www.briggsandstratton.com

$15.99

$

In Stock, only 3 left!

0

104

Briggs & Stratton 691242

Pin-Hinge, Float
(Superseded to 797622)

Note: Obtain parts from www.briggsandstratton.com

$3.99

$

In Stock, Qty 10

0

104

Briggs & Stratton 691242

Pin-Hinge, Float
(Superseded to 797622)

Note: Included in Carburetor Overhaul Kit-Ref. 121.

$3.99

$

In Stock, Qty 10

0

117

Briggs & Stratton 498978

Jet-Main

Note: Obtain parts from www.briggsandstratton.com

$

$

Not available

118

Briggs & Stratton 497466

Jet-Main

Note: Obtain parts from www.briggsandstratton.com

$17.99

$

Usually ships in 2-12 days

0

125

Briggs & Stratton 498170

Carburetor
(Superseded to 799868)

Note: Obtain parts from www.briggsandstratton.com

$63.99

$

Usually ships in 2-12 days

0

127

Briggs & Stratton 694468

Plug-Welch

Note: Obtain parts from www.briggsandstratton.com

$4.49

$

In Stock, only 3 left!

0

127

Briggs & Stratton 694468

Plug-Welch

Note: Included in Carburetor Overhaul Kit-Ref. 121.

$4.49

$

In Stock, only 3 left!

0

130

Briggs & Stratton 696564

Valve-Throttle

Note: Obtain parts from www.briggsandstratton.com

$8.99

$

Usually ships in 2-12 days

0

133

Briggs & Stratton 398187

Float-Carburetor

Note: Obtain parts from www.briggsandstratton.com

$9.99

$

In Stock, Qty 20+

0

134

Briggs & Stratton 398188

Needle and Seat Kit

Note: Obtain parts from www.briggsandstratton.com

$6.49

$

In Stock, Qty 20+

0

134

Briggs & Stratton 398188

Needle and Seat Kit

Note: Included in Carburetor Overhaul Kit-Ref. 121.

$6.49

$

In Stock, Qty 20+

0

137

Briggs & Stratton 693981

Gasket-Bowl, Float

Note: Included in Carburetor Overhaul Kit-Ref. 121.

$3.99

$

In Stock, Qty 20+

0

137

Briggs & Stratton 693981

Gasket-Bowl, Float

Note: Included in Carburetor Gasket Set-Ref. 977.

$3.99

$

In Stock, Qty 20+

0

137

Briggs & Stratton 693981

Gasket-Bowl, Float

Note: Obtain parts from www.briggsandstratton.com

$3.99

$

In Stock, Qty 20+

0

163

Briggs & Stratton 272653

Gasket-Cleaner, Air
(Superseded to 795629)

Note: Included in Carburetor Gasket Set-Ref. 977.

$3.49

$

In Stock, Qty 20+

0

163

Briggs & Stratton 272653

Gasket-Cleaner, Air
(Superseded to 795629)

Note: Obtain parts from www.briggsandstratton.com

$3.49

$

In Stock, Qty 20+

0

163

Briggs & Stratton 272653

Gasket-Cleaner, Air
(Superseded to 795629)

Note: Included in Carburetor Overhaul Kit-Ref. 121.

$3.49

$

In Stock, Qty 20+

0

163

Briggs & Stratton 272653

Gasket-Cleaner, Air
(Superseded to 795629)

Note: Included in Engine Gasket Set-Ref. 358.

$3.49

$

In Stock, Qty 20+

0

276

Briggs & Stratton 271716

Washer-Sealing

Note: Included in Carburetor Overhaul Kit-Ref. 121.

$6.99

$

In Stock, Qty 16

0

276

Briggs & Stratton 271716

Washer-Sealing

Note: Obtain parts from www.briggsandstratton.com

$6.99

$

In Stock, Qty 16

0

365

Briggs & Stratton 692524

Screw
(Superseded to 691688)

Note: Obtain parts from www.briggsandstratton.com

$4.49

$

In Stock, only 1 left!

0

617

Briggs & Stratton 270344

Seal-O Ring
(Superseded to 270344S)

Note: Obtain parts from www.briggsandstratton.com

$3.49

$

In Stock, Qty 20+

0

617

Briggs & Stratton 270344

Seal-O Ring
(Superseded to 270344S)

Note: Included in Carburetor Gasket Set-Ref. 977.

$3.49

$

In Stock, Qty 20+

0

617

Briggs & Stratton 270344

Seal-O Ring
(Superseded to 270344S)

Note: Included in Carburetor Overhaul Kit-Ref. 121.

$3.49

$

In Stock, Qty 20+

0

633

Briggs & Stratton 691321

Seal-Shaft, Choke Throttle

Note: Included in Carburetor Overhaul Kit-Ref. 121.

$4.99

$

Usually ships in 2-12 days

0

633

Briggs & Stratton 691321

Seal-Shaft, Choke Throttle

Note: Obtain parts from www.briggsandstratton.com

$4.99

$

Usually ships in 2-12 days

0

633

Briggs & Stratton 691321

Seal-Shaft, Choke Throttle

Note: Included in Carburetor Gasket Set-Ref. 977.

$4.99

$

Usually ships in 2-12 days

0

975

Briggs & Stratton 493640

Bowl-Float
(Superseded to 796611)

Note: Obtain parts from www.briggsandstratton.com

$

$

Not available
