20817 - Toro 48cm Recycler Walk-Behind Mower (SN: 210000001 - 210001000) (2001) ENGINE BRIGGS & STRATTON MODEL 12F802-1769-B1 Parts Diagram

48cm Recycler Walk-Behind Mower

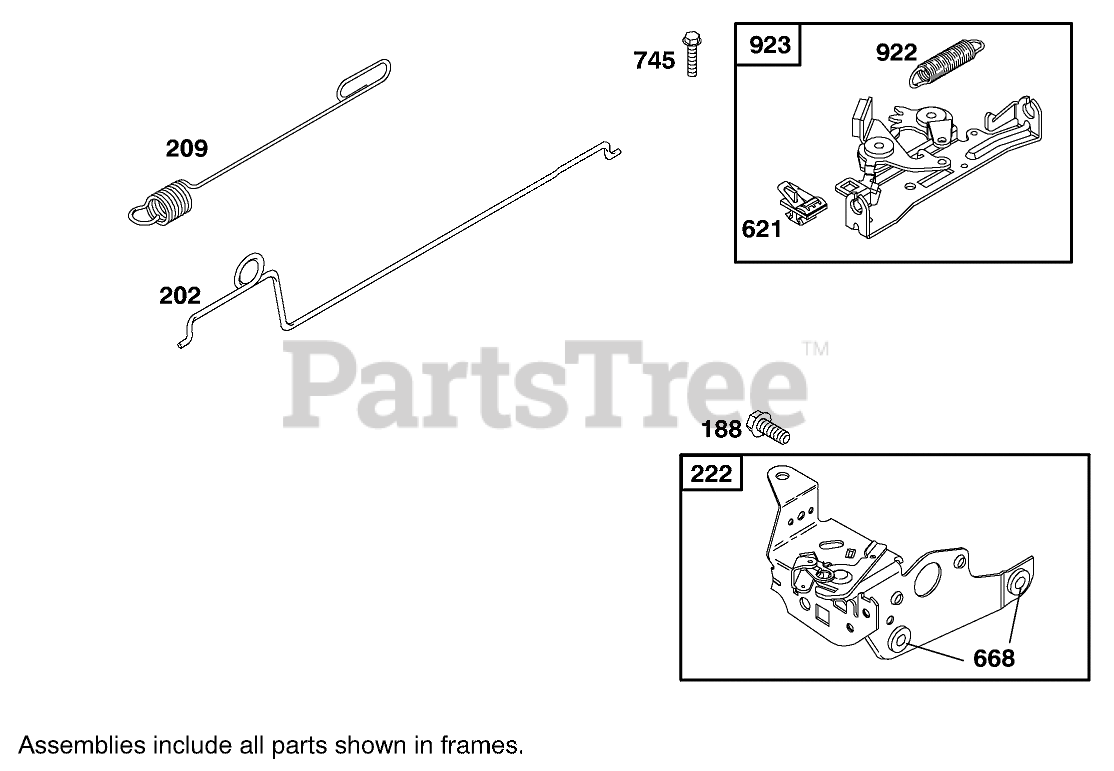

ENGINE BRIGGS & STRATTON MODEL 12F802-1769-B1 Parts Diagram

  • Title
188

Briggs & Stratton 94644

Screw-Hex.
(Superseded to 690877)

$3.99

$

In Stock, only 3 left!

0

202

Briggs & Stratton 262579

Link-Govemor
(Superseded to 691829)

$8.49

$

Usually ships in 2-12 days

0

209

Briggs & Stratton 263047

Governor Spring
(Superseded to 691852)

$8.49

$

Usually ships in 2-12 days

0

745

Briggs & Stratton 94512

Screw-Sem
(Superseded to 691648)

$4.99

$

Usually ships in 2-12 days

0

222

Briggs & Stratton 692467

Bracket-Control
(Superseded to 793754)

$43.99

$

Usually ships in 2-12 days

0

621

Briggs & Stratton 396847

Switch
(Superseded to 692310)

$5.99

$

In Stock, Qty 20+

0

668

Briggs & Stratton 493823

Spacer

Note: Included in Engine Gasket Set-Part No. 497316

$6.49

$

In Stock, only 1 left!

0

922

Briggs & Stratton 262640

Brake Spring
(Superseded to 691831)

$10.99

$

In Stock, only 2 left!

0

923

Briggs & Stratton 493442

Brake
(Superseded to 796387)

$

$

Not available
