20817 - Toro 48cm Recycler Walk-Behind Mower (SN: 210000001 - 210001000) (2001) ENGINE BRIGGS & STRATTON MODEL 12F802-1769-B1 Parts Diagram

48cm Recycler Walk-Behind Mower

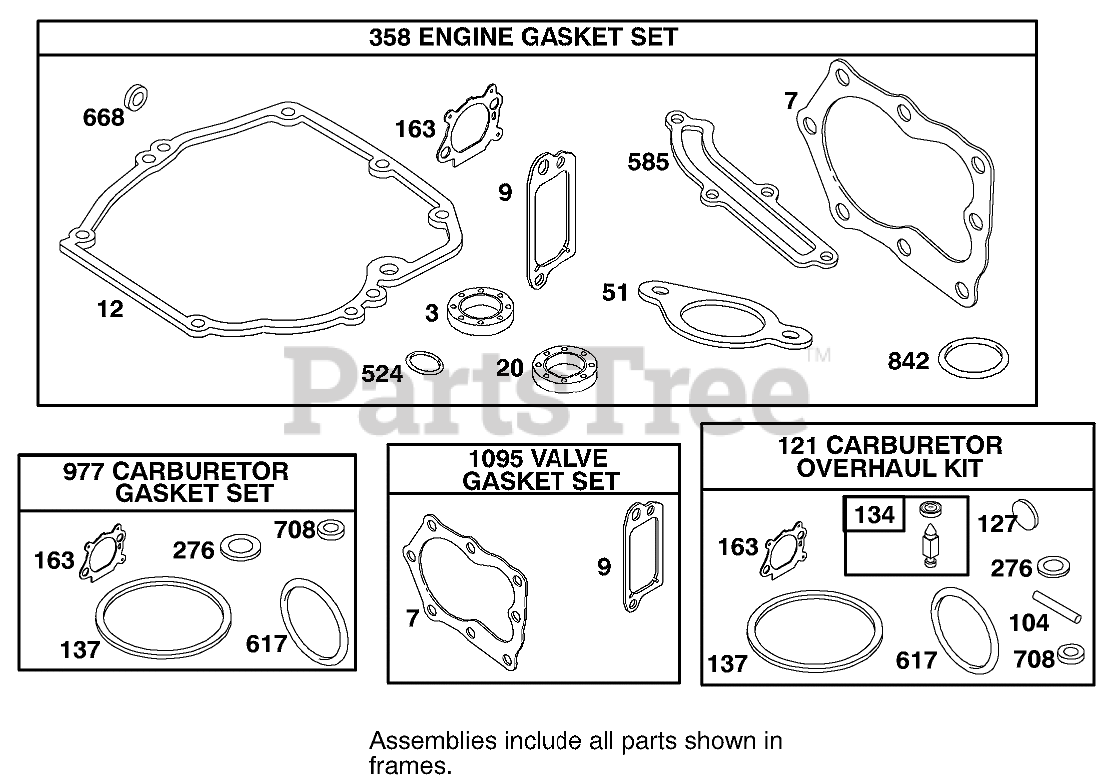

ENGINE BRIGGS & STRATTON MODEL 12F802-1769-B1 Parts Diagram

  • Title

3

Briggs & Stratton 299819

Seal-Oil
(Superseded to 299819S)

$5.49

$

In Stock, Qty 17

0

7

Briggs & Stratton 272916

Gasket-Cylinder Hd
(Superseded to 692249)

Note: Included in Valve Gasket Set-Part No. 498528

$8.49

$

In Stock, Qty 20+

0

9

Briggs & Stratton 272481

Gasket?Breather
(Superseded to 699833)

Note: Included in Valve Gasket Set-Part No. 498528

$5.49

$

In Stock, only 1 left!

0

12

Briggs & Stratton 272198

Gasket
(Superseded to 692232)

$5.99

$

In Stock, Qty 20+

0

20

Briggs & Stratton 399781

Seal-Oil
(Superseded to 399781S)

$7.99

$

In Stock, Qty 20+

0

51

Briggs & Stratton 272199

Gasket-Intake
(Superseded to 272199S)

$4.99

$

In Stock, only 1 left!

0

104

Briggs & Stratton 691242

Pin-Hinge, Float
(Superseded to 797622)

Note: Included in Carburetor Overhaul Kitt-Part No. 498260

$3.99

$

In Stock, Qty 10

0

276

Briggs & Stratton 271716

Washer-Sealing

Note: Included in Carburetor Gasket Set-Part No. 498261

$6.99

$

In Stock, Qty 5

0

276

Briggs & Stratton 271716

Washer-Sealing

Note: Included in Engine Gasket Set-Part No. 497316

$6.99

$

In Stock, Qty 5

0

121

Briggs & Stratton 498260

Carburetor Overhaul Kit

$16.99

$

In Stock, Qty 20+

0

127

Briggs & Stratton 694468

Plug-Welch

Note: Included in Carburetor Overhaul Kitt-Part No. 498260

$4.49

$

In Stock, only 3 left!

0

134

Briggs & Stratton 398188

Needle and Seat Kit

Note: Included in Carburetor Overhaul Kitt-Part No. 498260

$6.49

$

In Stock, Qty 20+

0

137

Briggs & Stratton 280492

Float Bowl Gasket
(Superseded to 693981)

Note: Included in Carburetor Gasket Set-Part No. 498261

$3.99

$

In Stock, Qty 20+

0

137

Briggs & Stratton 280492

Float Bowl Gasket
(Superseded to 693981)

Note: Included in Engine Gasket Set-Part No. 497316

$3.99

$

In Stock, Qty 20+

0

163

Briggs & Stratton 272653

Gasket-Cleaner, Air
(Superseded to 795629)

Note: Included in Engine Gasket Set-Part No. 497316

$3.49

$

In Stock, Qty 20+

0

163

Briggs & Stratton 272653

Gasket-Cleaner, Air
(Superseded to 795629)

Note: Included in Carburetor Gasket Set-Part No. 498261

$3.49

$

In Stock, Qty 20+

0

358

Briggs & Stratton 497316

Engine Gasket Set
(Superseded to 590508)

$37.99

$

In Stock, only 2 left!

0

524

Briggs & Stratton 280966

O-Ring Seal
(Superseded to 692296)

$4.99

$

In Stock, only 2 left!

0

585

Briggs & Stratton 272238

Gasket-Breather
(Superseded to 691879)

$6.99

$

In Stock, only 1 left!

0

617

Briggs & Stratton 270344

Seal-O Ring
(Superseded to 270344S)

Note: Included in Engine Gasket Set-Part No. 497316

$3.49

$

In Stock, Qty 20+

0

617

Briggs & Stratton 270344

Seal-O Ring
(Superseded to 270344S)

Note: Included in Carburetor Gasket Set-Part No. 498261

$3.49

$

In Stock, Qty 20+

0

708

Briggs & Stratton 691321

Seal-Shaft, Choke Throttle

Note: Included in Carburetor Gasket Set-Part No. 498261

$4.99

$

Usually ships in 2-12 days

0

708

Briggs & Stratton 691321

Seal-Shaft, Choke Throttle

Note: Included in Engine Gasket Set-Part No. 497316

$4.99

$

Usually ships in 2-12 days

0

668

Briggs & Stratton 493823

Spacer

$6.49

$

In Stock, only 1 left!

0

842

Briggs & Stratton 280393

O-Ring Seal
(Superseded to 691031)

$5.49

$

In Stock, Qty 20+

0

977

Briggs & Stratton 498261

Carburetor Gasket Set
(Superseded to 498260)

$16.99

$

In Stock, Qty 20+

0

1095

Briggs & Stratton 498528

Valve Gasket Set

$26.99

$

Usually ships in 2-12 days

0
