20815 - Toro Walk-Behind Mower (SN: 001000001 - 001999999) (1981) HANDLE ASSEMBLY Parts Diagram

Walk-Behind Mower

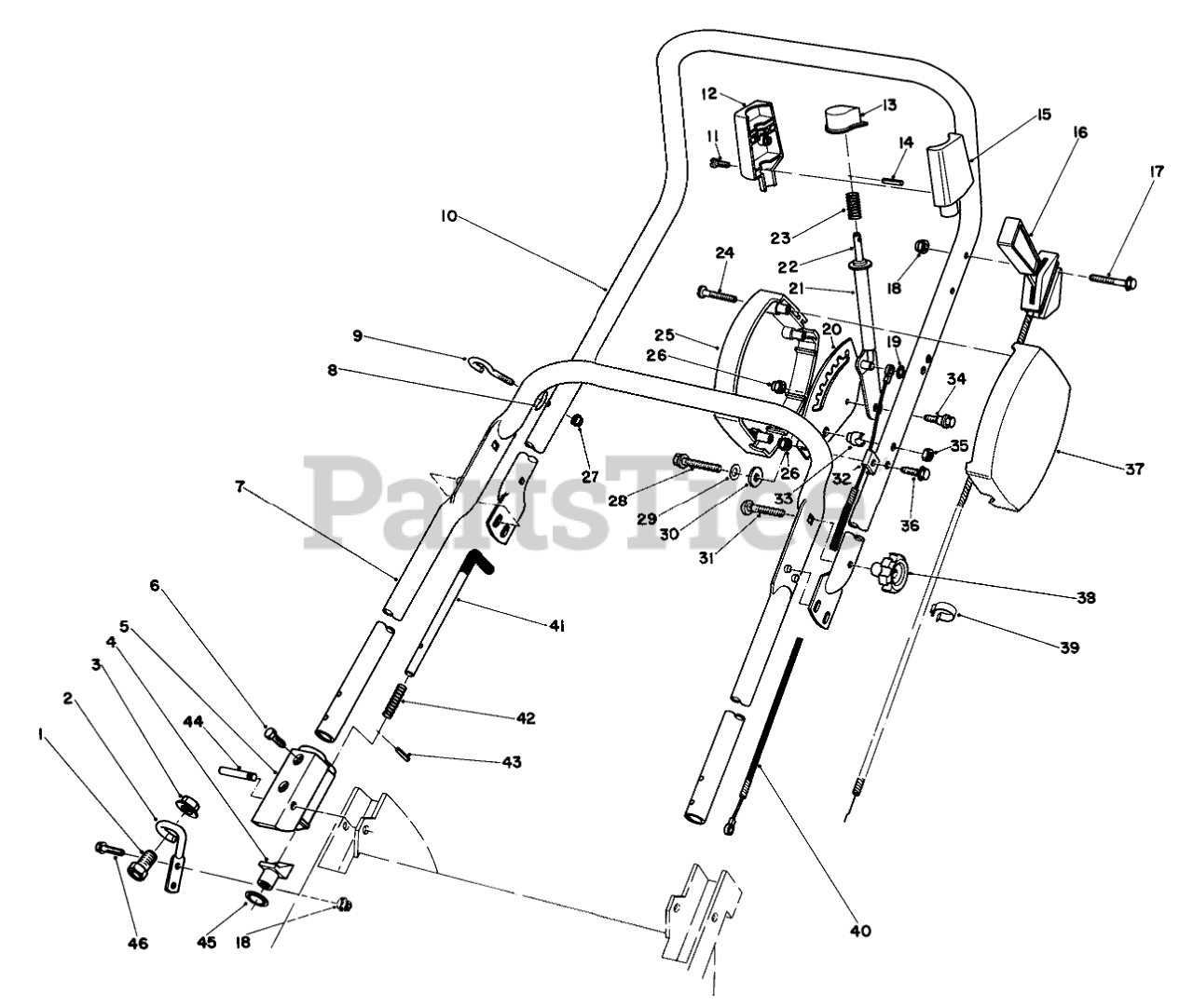

HANDLE ASSEMBLY Parts Diagram

  • Title
1

Toro 46-1570

Sleeve-Rope

$

$

Not available

2

Toro 46-1210

Guide-Rope

$

$

Not available

3

Toro 46-0090

NUT-LOCK

$

$

Currently unavailable

4

Toro 46-1180

Bushing-Insulated

$

$

Not available

5

Toro 46-0460

Block-Handle Mounting

$

$

Not available

6

Toro 32144-53

SCREW-SHWH, THREAD FORMING

$3.49

$

In Stock, Qty 10

0

7

Toro 46-1340

Lower Handle

$

$

Not available

8

Toro 46-1260

Washer-Curved

$

$

Not available

9

Toro 46-1250

Eyebolt

$

$

Not available

10

Toro 46-0500

UPPER HANDLE

$

$

Not available

11

Toro 32144-50

Screw-Pan Head

$

$

Not available

12

Toro 46-1070

Grip-Right Hand

$

$

Not available

13

Toro 46-1060

Button-Height of Cut

$

$

Not available

14

Toro 32121-50

PIN-SPRING

$3.49

$

In Stock, only 3 left!

0

15

Toro 46-1080

Grip-Left Hand

$

$

Not available

16

Toro 39-5871

Control-Throttle
(Superseded to 46-6020)

$

$

Not available

17

Toro 46-0070

Screw-Hex Washer Head

$

$

Not available

18

Toro 46-0410

NUT-LOCK

$4.99

$

Usually ships in 3-6 days

0

19

Toro 32112-5

PUSH NUT

$

$

Not available

20

Toro 46-0590

Bracket-Detent

$

$

Not available

21

Toro 46-1480

Handle-Height fo Cut

$

$

Not available

22

Toro 46-0920

Rod-Detent

$

$

Not available

23

Toro 46-0740

COMPRESSION SPRING O

$

$

Not available

24

Toro 32144-51

8 X1.25 SELF TAP SCRW

$

$

Not available

25

Toro 46-0610

Cover-Control R.H.

$

$

Not available

26

Toro 46-0400

M6 X 1 LOCKNUT

$

$

Not available

27

Toro 32111-7

NUT-CAP

$7.99

$

In Stock, only 2 left!

0

28

Toro 46-0030

Capscrew

$

$

Not available

29

Toro 3256-23

WASHER-PLAIN

$2.49

$

In Stock, Qty 20+

0

30

Toro 46-0700

Washer-Insulator

$

$

Not available

31

Toro 3230-21

SCREW-CARR

$

$

Not available

32

Toro 46-1270

Clamp-Cable

$

$

Not available

33

Toro 46-1100

Isolator-Control

$

$

Not available

34

Toro 46-0760

Shoulder Screw

$

$

Not available

35

Toro 46-0330

NUT-LOCK

$0.99

$

Usually ships in 3-6 days

0

36

Toro 46-0051

Screw-Cap Hex. Hd.

$

$

Not available

37

Toro 46-0620

Cover-Control L.H.

$

$

Not available

38

$17.99

$

In Stock, only 3 left!

0

39

$

$

Not available

40

Toro 46-0580

HOC UPPER CABLE

$

$

Currently unavailable

41

Toro 46-0940

Rod-Latch

$

$

Not available

42

Toro 46-0560

COMPRESSION SPRING

$

$

Not available

43

Toro 32121-107

PIN-ROLL, SLOTTED

$2.99

$

Usually ships in 3-6 days

0

44

Toro 46-0470

Pin-Handle Mounting

$

$

Not available

45

Toro 32112-4

SPEED NUT

$

$

Not available

46

Toro 46-0071

Screw-Hex Head

$

$

Not available
