20814 - Toro 48cm Recycler Walk-Behind Mower (SN: 260000001 - 260999999) (2006) AIR CLEANER ASSEMBLY BRIGGS AND STRATTON 12F802-1770-B1 Parts Diagram

48cm Recycler Walk-Behind Mower

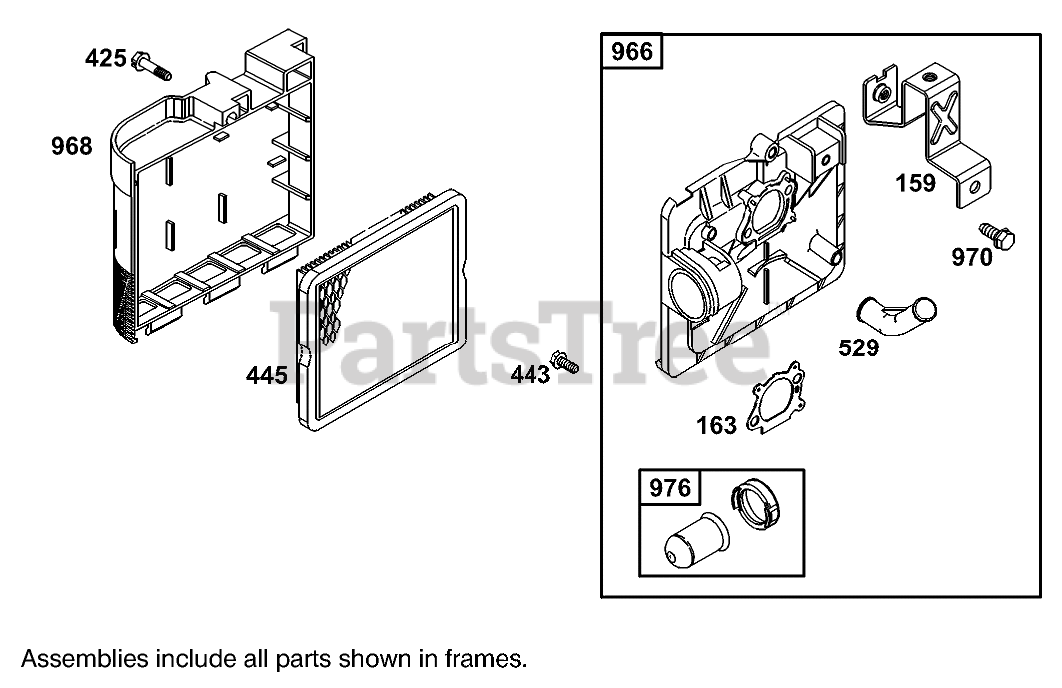

AIR CLEANER ASSEMBLY BRIGGS AND STRATTON 12F802-1770-B1 Parts Diagram

  • Title
159

Briggs & Stratton 691753

Primer Bracket-Air Cleaner
(Superseded to 795259)

Note: Obtain parts from www.briggsandstratton.com

$32.99

$

In Stock, only 3 left!

0

163

Briggs & Stratton 272653

Gasket-Cleaner, Air
(Superseded to 795629)

Note: Obtain parts from www.briggsandstratton.com

$3.49

$

In Stock, Qty 20+

0

163

Briggs & Stratton 272653

Gasket-Cleaner, Air
(Superseded to 795629)

Note: Included in Engine Gasket Set-Ref. 358.

$3.49

$

In Stock, Qty 20+

0

163

Briggs & Stratton 272653

Gasket-Cleaner, Air
(Superseded to 795629)

Note: Included in Carburetor Overhaul Kit-Ref. 121.

$3.49

$

In Stock, Qty 20+

0

163

Briggs & Stratton 272653

Gasket-Cleaner, Air
(Superseded to 795629)

Note: Included in Carburetor Gasket Set-Ref. 977

$3.49

$

In Stock, Qty 20+

0

425

Briggs & Stratton 690670

Screw

Note: Obtain parts from www.briggsandstratton.com

$5.99

$

In Stock, only 4 left!

0

443

Briggs & Stratton 692523

Screw

Note: Obtain parts from www.briggsandstratton.com

$7.49

$

In Stock, only 2 left!

0

445

Briggs & Stratton 491588

Filter-Air Cleaner, Cartridge
(Superseded to 491588S)

Note: Obtain parts from www.briggsandstratton.com

$6.49

$

In Stock, Qty 20+

0

529

Briggs & Stratton 691923

Grommet

Note: Obtain parts from www.briggsandstratton.com

$9.49

$

In Stock, only 1 left!

0

966

Briggs & Stratton 496116

Base-Primer, Air Cleaner
(Superseded to 795259)

Note: Obtain parts from www.briggsandstratton.com

$32.99

$

In Stock, only 3 left!

0

968

Briggs & Stratton 692298

Cover-Cleaner, Air

Note: Obtain parts from www.briggsandstratton.com

$27.99

$

In Stock, only 1 left!

0

970

Briggs & Stratton 691669

Screw (Air CleanerPrimer Bracket)

Note: Obtain parts from www.briggsandstratton.com

$3.99

$

In Stock, only 1 left!

0

976

Briggs & Stratton 694395

Primer-Carburetor

Note: Obtain parts from www.briggsandstratton.com

$4.49

$

In Stock, Qty 20+

0
