20814 - Toro 48cm Recycler Walk-Behind Mower (SN: 230000001 - 230999999) (2003) CRANKCASE/CRANKSHAFT/PISTON/AND VALVE ASSEMBLY BRIGGS AND STRATTON MODEL 12F802-1770-B1 Parts Diagram

48cm Recycler Walk-Behind Mower

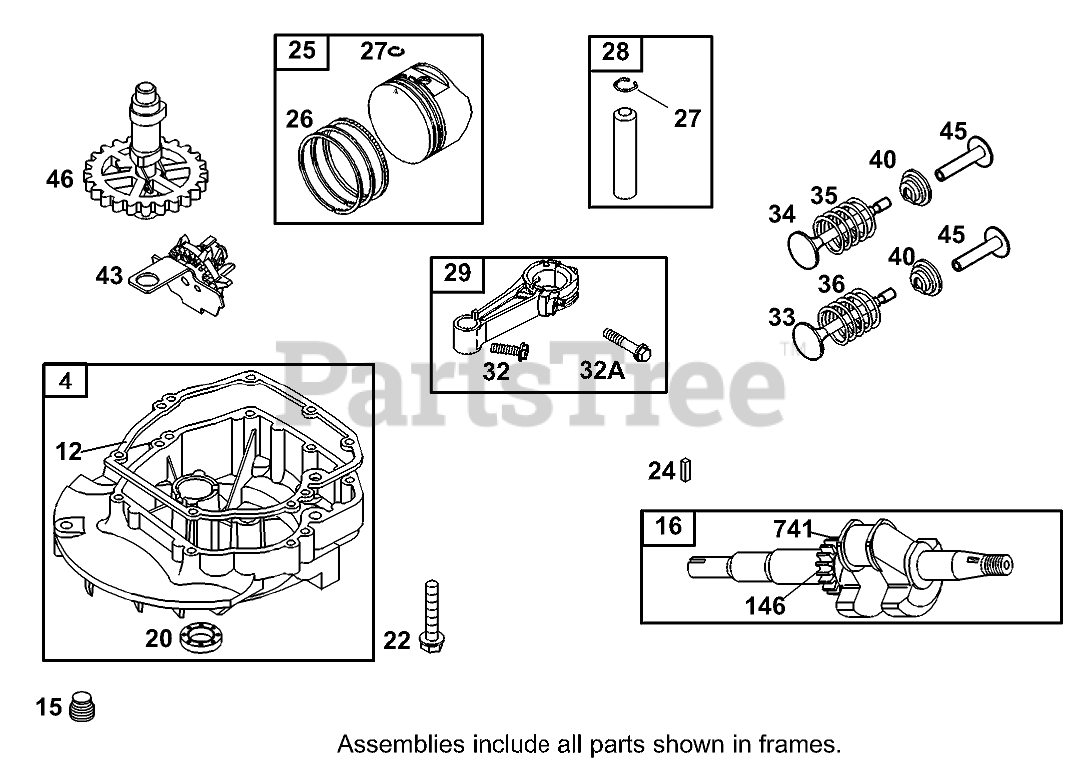

CRANKCASE/CRANKSHAFT/PISTON/AND VALVE ASSEMBLY BRIGGS AND STRATTON MODEL 12F802-1770-B1 Parts Diagram

  • Title

4

Briggs & Stratton 493279

Sump-Engine

Note: Obtain parts from www.briggsandstratton.com

$120.99

$

In Stock, only 2 left!

0

12

Briggs & Stratton 692232

Gasket-Crankcase

Note: Obtain parts from www.briggsandstratton.com

$5.99

$

In Stock, Qty 20+

0

12

Briggs & Stratton 692232

Gasket-Crankcase

Note: Included in Engine Gasket Set-Ref. 358.

$5.99

$

In Stock, Qty 20+

0

15

Briggs & Stratton 691680

Plug-Drain, Oil

Note: Obtain parts from www.briggsandstratton.com

$5.99

$

In Stock, only 1 left!

0

16

Toro 695376

Crankshaft

Note: Obtain parts from www.briggsandstratton.com

$

$

Currently unavailable

20

Briggs & Stratton 399781

Seal-Oil
(Superseded to 399781S)

Note: Obtain parts from www.briggsandstratton.com

$7.99

$

In Stock, Qty 20+

0

20

Briggs & Stratton 399781

Seal-Oil
(Superseded to 399781S)

Note: Included in Engine Gasket Set-Ref. 358.

$7.99

$

In Stock, Qty 20+

0

22

Briggs & Stratton 691092

Screw

Note: Obtain parts from www.briggsandstratton.com

$3.99

$

Usually ships in 2-12 days

0

24

Briggs & Stratton 222698

Key
(Superseded to 222698S)

Note: Obtain parts from www.briggsandstratton.com

$2.99

$

In Stock, Qty 20+

0

25

Briggs & Stratton 499429

Piston ASM. (Standard)
(Superseded to 799063)

Note: Obtain parts from www.briggsandstratton.com

$91.99

$

In Stock, only 4 left!

0

Briggs & Stratton 499430

Piston ASM

Note: Obtain parts from www.briggsandstratton.com

$39.99

$

Usually ships in 2-12 days

0

Briggs & Stratton 499431

Piston ASM. (.020" O.S.)
(Superseded to 799064)

Note: Obtain parts from www.briggsandstratton.com

$120.99

$

Usually ships in 2-12 days

0

Briggs & Stratton 499432

Piston ASM. (.030" O.S.)

Note: Obtain parts from www.briggsandstratton.com

$46.99

$

Usually ships in 2-12 days

0

26

Briggs & Stratton 499425

Ring Set (Standard)

Note: Obtain parts from www.briggsandstratton.com

$

$

Not available

Briggs & Stratton 499426

Ring Set (.010" O.S.)

Note: Obtain parts from www.briggsandstratton.com

$20.99

$

Usually ships in 2-12 days

0

Briggs & Stratton 499427

Ring Set (.020in Oversize)

Note: Obtain parts from www.briggsandstratton.com

$52.99

$

Usually ships in 2-12 days

0

Briggs & Stratton 499428

Ring Set (.030" O.S.)

Note: Obtain parts from www.briggsandstratton.com

$29.99

$

Usually ships in 2-12 days

0

27

Briggs & Stratton 691866

Lock-Pin, Piston

Note: Obtain parts from www.briggsandstratton.com

$4.49

$

In Stock, Qty 8

0

28

Briggs & Stratton 499423

Pin-Piston

Note: Obtain parts from www.briggsandstratton.com

$9.49

$

Usually ships in 2-12 days

0

Briggs & Stratton 298908

Pin-Piston (.005 Undersize)

Note: Obtain parts from www.briggsandstratton.com

$4.99

$

Usually ships in 2-12 days

0

29

Briggs & Stratton 499424

Rod-Connecting
(Superseded to 590406)

Note: Obtain parts from www.briggsandstratton.com

$87.99

$

In Stock, only 1 left!

0

32

Briggs & Stratton 691664

Screw

Note: Obtain parts from www.briggsandstratton.com

$4.49

$

In Stock, only 2 left!

0

32A

Briggs & Stratton 695759

Screw

Note: Obtain parts from www.briggsandstratton.com

$4.99

$

In Stock, only 2 left!

0

33

Briggs & Stratton 262651

Valve-Exhaust
(Superseded to 590394)

Note: Obtain parts from www.briggsandstratton.com

$24.99

$

In Stock, only 3 left!

0

34

Briggs & Stratton 262652

Valve-Intake
(Superseded to 590393)

Note: Obtain parts from www.briggsandstratton.com

$21.99

$

Usually ships in 2-12 days

0

35

Briggs & Stratton 691270

Spring-Valve

Note: Obtain parts from www.briggsandstratton.com

$5.49

$

In Stock, Qty 7

0

36

Briggs & Stratton 691270

Spring-Valve

Note: Obtain parts from www.briggsandstratton.com

$5.49

$

In Stock, Qty 7

0

40

Briggs & Stratton 692194

Retainer-Valve

Note: Obtain parts from www.briggsandstratton.com

$5.99

$

In Stock, Qty 11

0

43

Briggs & Stratton 691997

Slinger-Oil, Governor

Note: Obtain parts from www.briggsandstratton.com

$25.99

$

Usually ships in 2-12 days

0

45

Briggs & Stratton 690548

Tappet-Valve

Note: Obtain parts from www.briggsandstratton.com

$9.99

$

Usually ships in 2-12 days

0

46

Briggs & Stratton 691449

Camshaft

Note: Obtain parts from www.briggsandstratton.com

$73.99

$

In Stock, only 1 left!

0

146

Briggs & Stratton 690979

Key-Timing

Note: Obtain parts from www.briggsandstratton.com

$3.49

$

In Stock, Qty 8

0

741

Briggs & Stratton 691830

Gear-Timing

Note: Obtain parts from www.briggsandstratton.com

$17.99

$

Usually ships in 2-12 days
