20813 - Toro 48cm Recycler Walk-Behind Mower (SN: 200000001 - 200999999) (2000) ENGINE BRIGGS & STRATTON MODEL 12F802-1769-B1 Parts Diagram

48cm Recycler Walk-Behind Mower

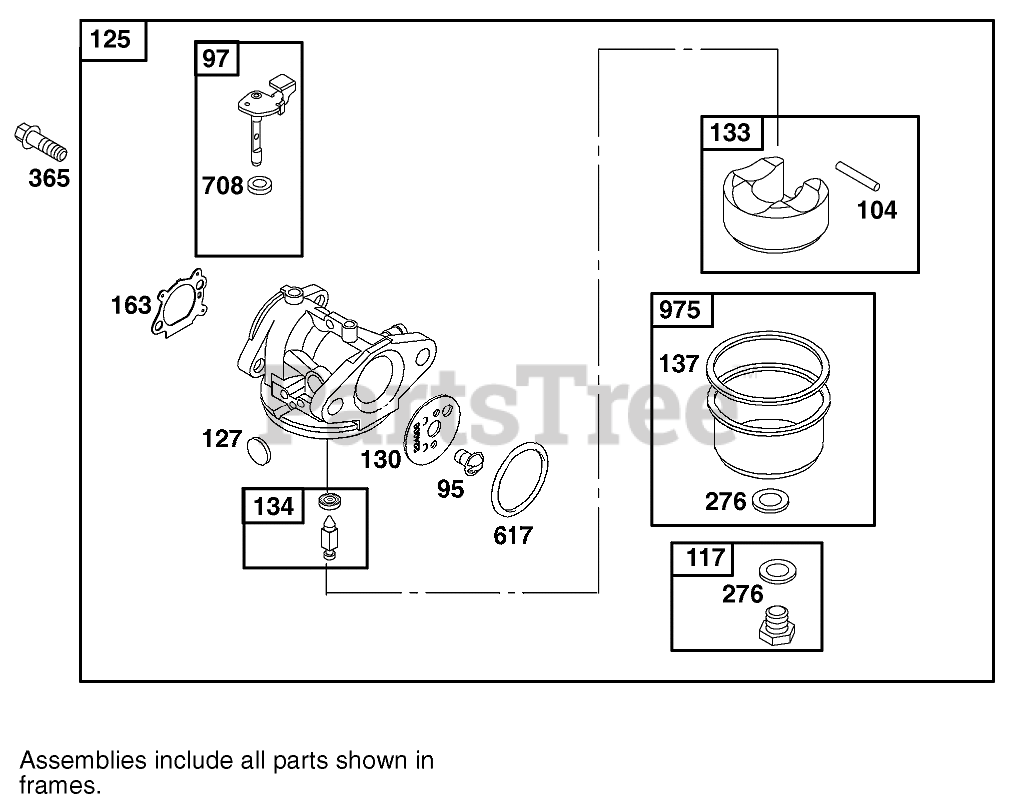

ENGINE BRIGGS & STRATTON MODEL 12F802-1769-B1 Parts Diagram

  • Title

95

Briggs & Stratton 94098

Valve-Choke
(Superseded to 691636)

$3.99

$

In Stock, only 2 left!

0

97

Briggs & Stratton 493267

Shaft and Lever

$16.99

$

In Stock, only 4 left!

0

104

Briggs & Stratton 691242

Pin-Hinge, Float
(Superseded to 797622)

Note: Included in Carburetor Overhaul Kit-Part No. 498260

$3.99

$

In Stock, Qty 10

0

117

Briggs & Stratton 494870

Jet-Main

$

$

Not available

125

Briggs & Stratton 498170

Carburetor
(Superseded to 799868)

$63.99

$

Usually ships in 2-12 days

0

127

Briggs & Stratton 694468

Plug-Welch

Note: Included in Carburetor Overhaul Kit-Part No. 498260

$4.49

$

In Stock, only 3 left!

0

130

Briggs & Stratton 691203

Valve?Throttle

$9.49

$

Usually ships in 2-12 days

0

133

Briggs & Stratton 398187

Float-Carburetor

$9.99

$

In Stock, Qty 20+

0

134

Briggs & Stratton 398188

Needle and Seat Kit

Note: Included in Carburetor Overhaul Kit-Part No. 498260

$6.49

$

In Stock, Qty 20+

0

137

Briggs & Stratton 280492

Float Bowl Gasket
(Superseded to 693981)

Note: Included in Carburetor Overhaul Kit-Part No. 498260

$3.99

$

In Stock, Qty 20+

0

137

Briggs & Stratton 280492

Float Bowl Gasket
(Superseded to 693981)

Note: Included in Carburetor Gasket Set-Part No. 498261

$3.99

$

In Stock, Qty 20+

0

163

Briggs & Stratton 272653

Gasket-Cleaner, Air
(Superseded to 795629)

Note: Included in Carburetor Gasket Set-Part No. 498261

$3.49

$

In Stock, Qty 20+

0

163

Briggs & Stratton 272653

Gasket-Cleaner, Air
(Superseded to 795629)

Note: Included in Engine Gasket Set-Part No. 497316

$3.49

$

In Stock, Qty 20+

0

163

Briggs & Stratton 272653

Gasket-Cleaner, Air
(Superseded to 795629)

Note: Included in Carburetor Overhaul Kit-Part No. 498260

$3.49

$

In Stock, Qty 20+

0

276

Briggs & Stratton 271716

Washer-Sealing

Note: Included in Carburetor Gasket Set-Part No. 498261

$6.99

$

In Stock, Qty 7

0

276

Briggs & Stratton 271716

Washer-Sealing

Note: Included in Carburetor Overhaul Kit-Part No. 498260

$6.99

$

In Stock, Qty 7

0

365

Briggs & Stratton 94840

Screw-Hex
(Superseded to 691688)

$4.49

$

In Stock, only 2 left!

0

617

Briggs & Stratton 270344

Seal-O Ring
(Superseded to 270344S)

Note: Included in Carburetor Gasket Set-Part No. 498261

$3.49

$

In Stock, Qty 20+

0

617

Briggs & Stratton 270344

Seal-O Ring
(Superseded to 270344S)

Note: Included in Carburetor Overhaul Kit-Part No. 498260

$3.49

$

In Stock, Qty 20+

0

708

Briggs & Stratton 691321

Seal-Shaft, Choke Throttle

Note: Included in Carburetor Gasket Set-Part No. 498261

$4.99

$

Usually ships in 2-12 days

0

708

Briggs & Stratton 691321

Seal-Shaft, Choke Throttle

Note: Included in Carburetor Overhaul Kit-Part No. 498260

$4.99

$

Usually ships in 2-12 days

0

975

Briggs & Stratton 493640

Bowl-Float
(Superseded to 796611)

$

$

Not available
