20812 - Toro 48cm Recycler Walk-Behind Mower (SN: 200000001 - 200999999) (2000) ENGINE BRIGGS & STRATTON MODEL 12F802-1769-B1 Parts Diagram

48cm Recycler Walk-Behind Mower

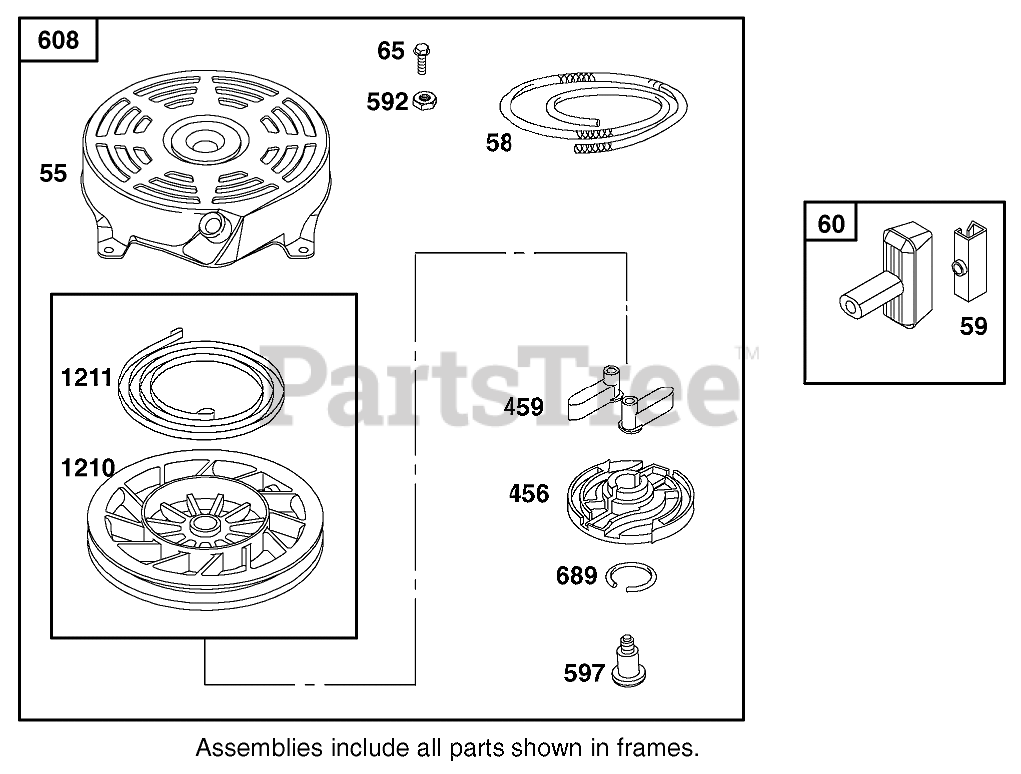

ENGINE BRIGGS & STRATTON MODEL 12F802-1769-B1 Parts Diagram

  • Title

55

Briggs & Stratton 691421

Housing-Starter, Rewind

$64.99

$

Usually ships in 2-12 days

0

58

Briggs & Stratton 280399

Rope?Starter (Cut to Required Length)
(Superseded to 280399S)

$5.99

$

In Stock, Qty 9

0

59

Briggs & Stratton 224467

Insert-Grip
(Superseded to 493926)

$

$

Not available

60

Briggs & Stratton 493926

Grip-Starter Rope

$

$

Not available

65

Briggs & Stratton 94904

Screw-Hex
(Superseded to 690837)

$3.49

$

In Stock, Qty 20+

0

456

Briggs & Stratton 281503

Retainer-Spring
(Superseded to 692299)

$4.99

$

In Stock, only 2 left!

0

459

Briggs & Stratton 281505

Ratchet-Pawl
(Superseded to 281505S)

$3.49

$

In Stock, Qty 15

0

592

Briggs & Stratton 94908

Nut-Hex.
(Superseded to 690800)

$3.99

$

In Stock, Qty 13

0

597

Briggs & Stratton 94943

Pin-Starter
(Superseded to 691696)

$11.99

$

In Stock, Qty 6

0

608

Briggs & Stratton 497680

Starter-Rewind

$49.99

$

In Stock, Qty 20+

0

689

Briggs & Stratton 263073

Spring-Torsion
(Superseded to 691855)

$4.49

$

In Stock, only 3 left!

0

1210

Briggs & Stratton 498144

Pulley and Spring ASM

$19.99

$

In Stock, Qty 20+

0

1211

Briggs & Stratton 498144

Pulley and Spring ASM

$19.99

$

In Stock, Qty 20+

0
