20810 - Toro Walk-Behind Mower (SN: 009000001 - 009999999) (1979) HANDLE ASSEMBLY Parts Diagram

Walk-Behind Mower

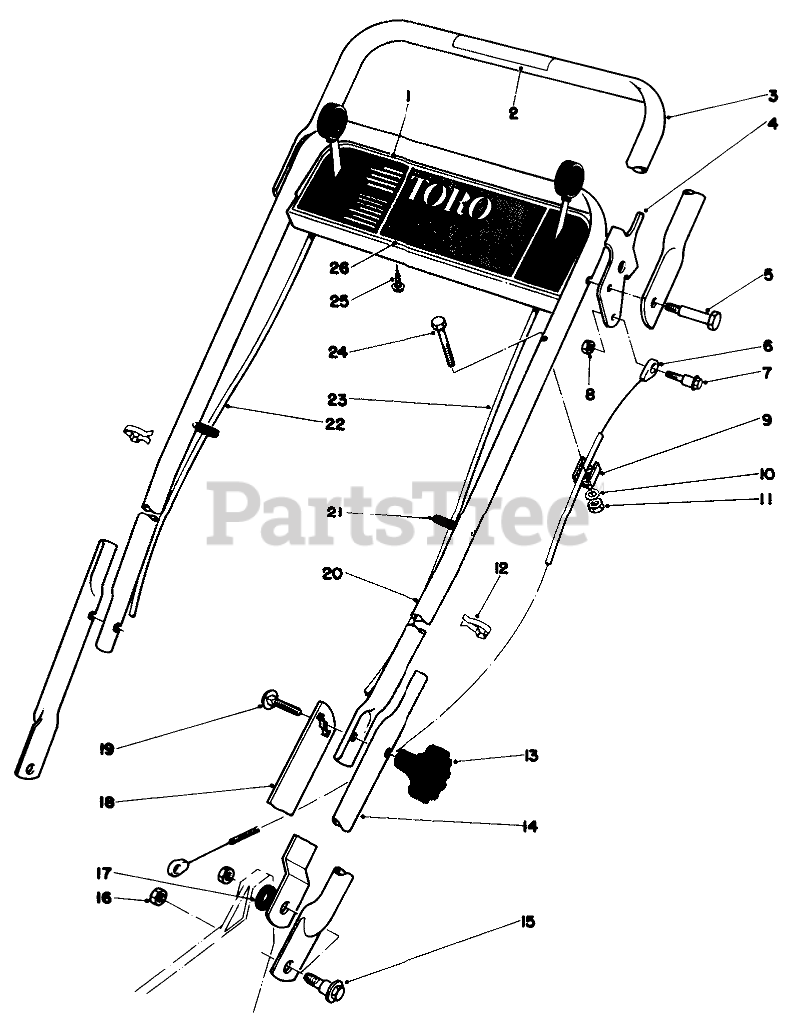

HANDLE ASSEMBLY Parts Diagram

  • Title

1

Toro 38-1620

Control Panel

$

$

Not available

2

Toro 38-5930

Decal-Traction Control

$

$

Currently unavailable

3

Toro 29-9440

Demand Handle

$

$

Not available

4

Toro 29-9470

Demand Handle Stop

$

$

Not available

5

Toro 36-2250

BOLT-SHOULDER

$12.99

$

Usually ships in 3-6 days

0

6

Toro 29-9500

DEMAND HANDLE CABLE

$

$

Not available

7

Toro 26-5620

Shoulder Bolt
(Superseded to 43-7260)

$17.99

$

Usually ships in 3-6 days

0

8

Toro 32153-4

NUT-HEX, SIDE DEFORM

$1.49

$

Usually ships in 3-6 days

0

9

Toro 29-9550

CLAMP-CABLE

$

$

Not available

10

Toro 3256-1

WASHER-FLAT

$0.99

$

In Stock, Qty 20+

0

11

Toro 3296-42

NUT-LOCK, NI

$0.99

$

In Stock, Qty 9

0

12

Toro 218-465

BOWDEN CLIP

$

$

Not available

13

Toro 19-4050

KNOB

$17.99

$

In Stock, only 2 left!

0

14

Toro 29-9160

LOWER HANDLE

$

$

Not available

15

Toro 27-7212

Screw
(Superseded to 27-7211)

$5.49

$

In Stock, only 1 left!

0

16

Toro 32146-5

Nut
(Superseded to 32153-3)

$6.49

$

Usually ships in 3-6 days

0

17

Toro 3-3287

SPACER

$5.49

$

In Stock, Qty 6

0

18

Toro 36-8080

Handle Latch L.H.
(Superseded to 44-0590)

$43.99

$

Usually ships in 3-6 days

0

Toro 36-8090

Handle Latch R.H.
(Superseded to 44-0590)

$43.99

$

Usually ships in 3-6 days

0

19

Toro 3230-5

SCREW-CARR

$0.99

$

In Stock, Qty 6

0

20

Toro 38-4650

Upper Handle

$

$

Not available

21

Toro 2410-49

CAP-VINYL
(Superseded to 42452)

$1.49

$

Usually ships in 3-6 days

0

22

Toro 37-4721

GROUND SPEED CONTROL

$135.99

$

Usually ships in 3-6 days

0

23

Toro 37-4712

Throttle Control
(Superseded to 46-6010)

$72.99

$

Usually ships in 3-6 days

0

24

Toro 321-9

SCREW-HH

$4.99

$

In Stock, only 4 left!

0

25

Toro 32104-76

SCREW-HWHTF

$2.99

$

In Stock, Qty 20+

0

26

Toro 38-5580

Decal-Control Panel

$

$

Currently unavailable
