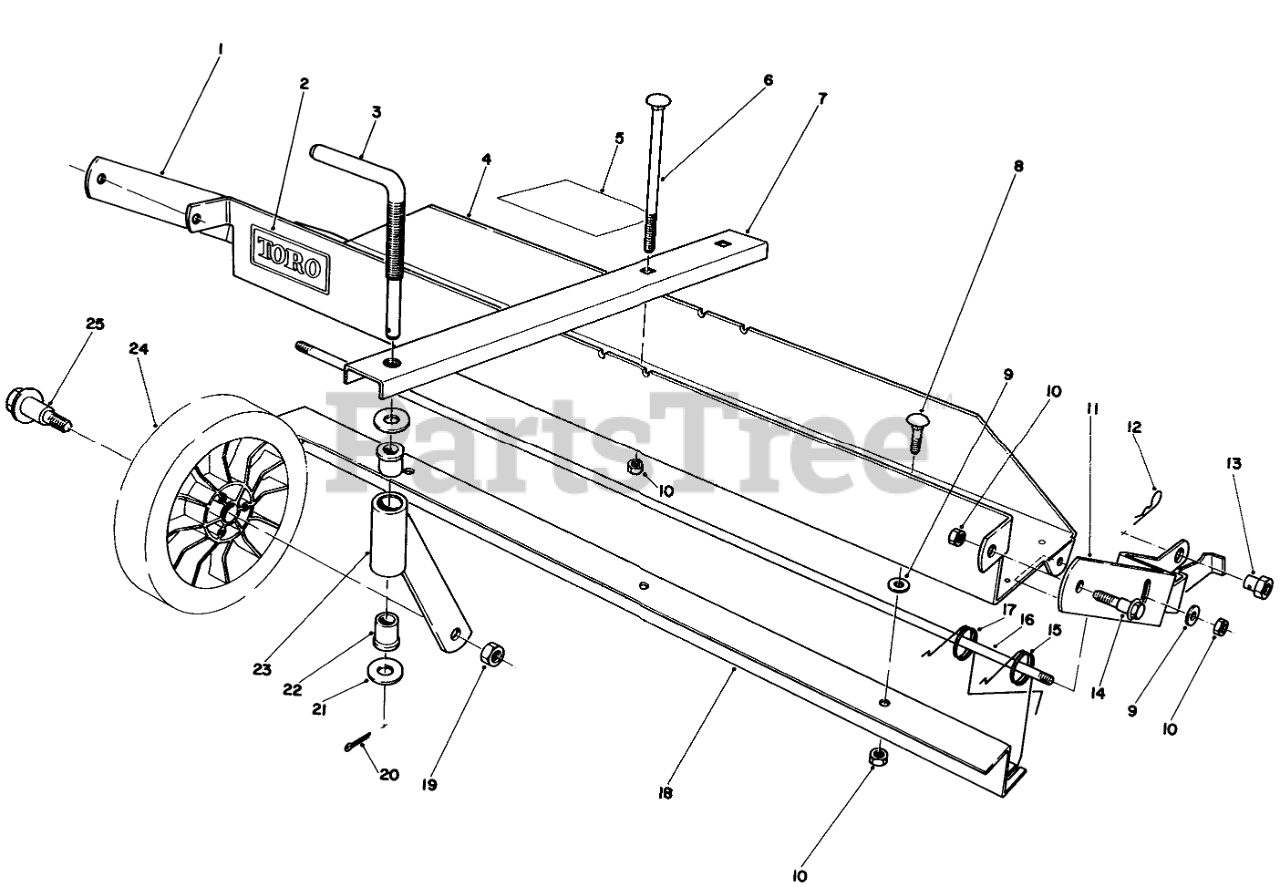

20810 - Toro Walk-Behind Mower (SN: 003000001 - 003999999) (1983) DETHATCHER KIT MODEL NO. 59126 (OPTIONAL) Parts Diagram

Walk-Behind Mower

DETHATCHER KIT MODEL NO. 59126 (OPTIONAL) Parts Diagram

  • Title

1

Toro 47-6030

Frame R.H.

$

$

Not available

2

Toro 44-0810

Decal-Toro
(Superseded to 71-0600)

$15.99

$

Usually ships in 3-6 days

0

3

Toro 47-6120

CASTOR ADJ ROD

$

$

Not available

4

Toro 47-2390

Frame-Main (Incl. Ref. #2)

$

$

Not available

5

Toro 47-7500

Decal-Instruction

$

$

Not available

6

Toro 3230-13

SCREW-CARR

$4.49

$

Usually ships in 3-6 days

0

7

Toro 47-6090

Castor Frame

$

$

Not available

8

Toro 323G1

Carriage Bolt

$

$

Currently unavailable

9

Toro 3256-24

WASHER-FLAT

$0.99

$

In Stock, Qty 19

0

10

Toro 32153-3

NUT-HEX, SIDE DEFORM

$6.49

$

Usually ships in 3-6 days

0

11

Toro 47-6020

LH MTG FRAME

$

$

Not available

12

Toro 3290-255

PIN-COTTER, HAIR

$8.99

$

In Stock, only 1 left!

0

13

Toro 47-6130

PIVOT NUT

$

$

Not available

14

Toro 19-1470

SCREW-SHOULDER

$3.99

$

In Stock, Qty 5

0

15

Toro 47-6040

DETHATCHER SPRING

$

$

Not available

16

Toro 47-6050

SPRING SUPPORT ROD

$

$

Not available

17

Toro 47-6041

DETHATCHER SPRING

$

$

Not available

18

Toro 47-6010

SPRING GUIDE STRAP

$

$

Not available

19

Toro 32146-6

Nut
(Superseded to 3296-6)

$1.99

$

In Stock, Qty 20+

0

20

Toro 3272-11

PIN-COTTER

$1.49

$

In Stock, Qty 5

0

21

Toro 3256-4

WASHER-FLAT

$1.99

$

In Stock, Qty 20+

0

22

Toro 47-6110

FLANGE BUSHING

$

$

Not available

23

Toro 47-6060

Castor Tube & Support

$

$

Not available

24

Toro 34-0380

Wheel Assembly
(Superseded to 27-6210)

$

$

Not available

25

Toro 27-6230

BOLT-WHEEL

$8.49

$

In Stock, only 1 left!

0

Toro 11-5239

Loose Parts

Note: Not illustrated

$

$

Not available
