20810 - Toro Walk-Behind Mower (SN: 002000001 - 002999999) (1982) HANDLE ASSEMBLY Parts Diagram

Walk-Behind Mower

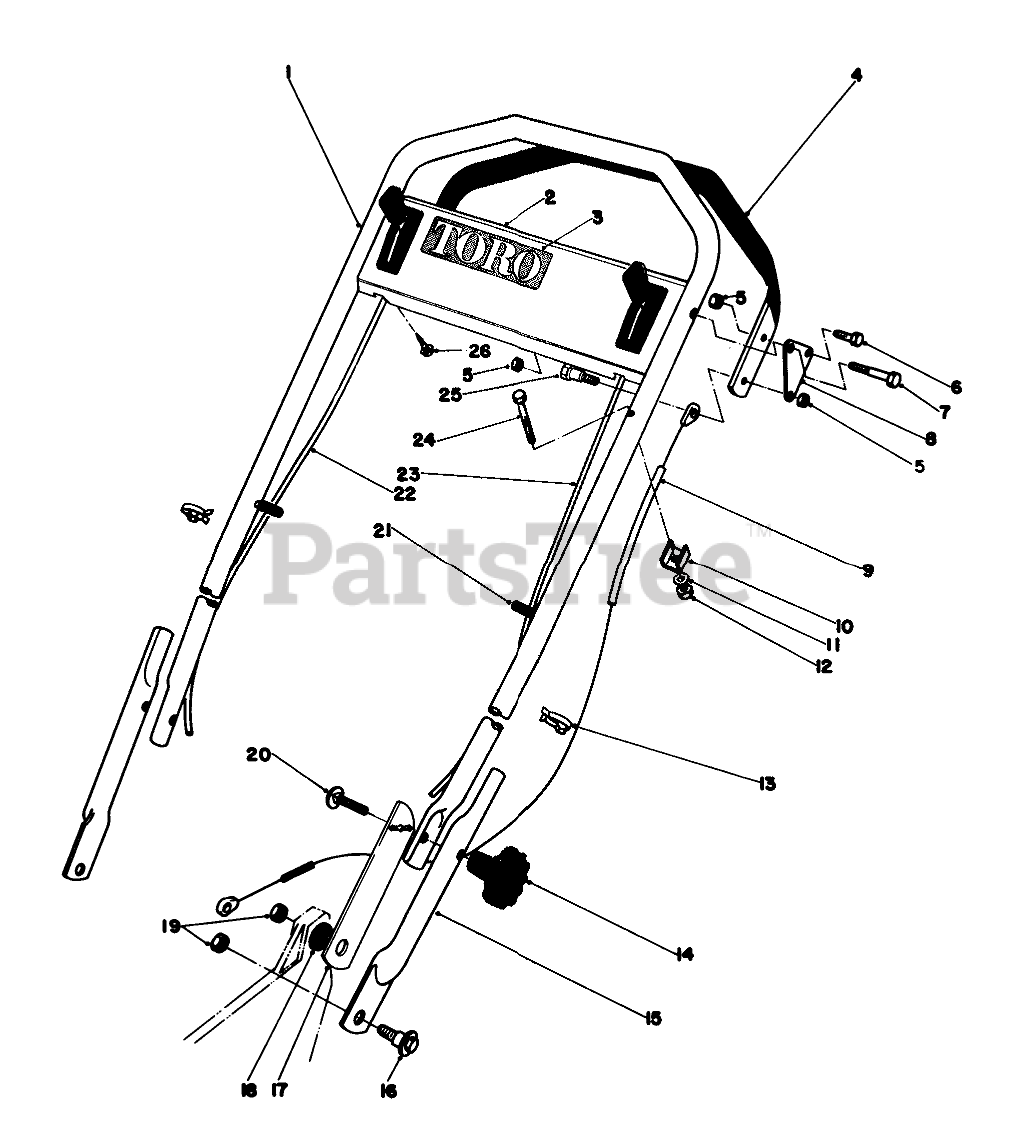

HANDLE ASSEMBLY Parts Diagram

  • Title

1

Toro 40-4860

Upper Handle

$

$

Not available

2

Toro 11-1959

Control Plate (Incl. Ref. #3)

$

$

Not available

3

Toro 40-5480

Decal-Toro
(Superseded to 70-2200)

$6.49

$

Usually ships in 3-6 days

0

4

Toro 40-4840

DEMAND HANDLE ASM

$

$

Not available

5

Toro 32152-4

NUT-LOCK, CONE

$1.49

$

In Stock, Qty 6

0

6

Toro 321-3

SCREW-HH

$1.49

$

In Stock, Qty 20+

0

7

Toro 36-2250

BOLT-SHOULDER

$13.99

$

Usually ships in 3-6 days

0

8

Toro 40-4850

Bracket Demand

$

$

Not available

9

Toro 29-9502

DEMAND HAND CABLE

$92.99

$

Usually ships in 3-6 days

0

10

Toro 29-9550

CLAMP-CABLE

$

$

Not available

11

Toro 3256-1

WASHER-FLAT

$0.99

$

In Stock, Qty 20+

0

12

Toro 3296-42

NUT-LOCK, NI

$0.99

$

In Stock, Qty 20+

0

13

Toro 218-465

BOWDEN CLIP

$

$

Not available

14

Toro 19-4050

KNOB

$17.99

$

In Stock, only 3 left!

0

15

Toro 29-9160

LOWER HANDLE

$

$

Not available

16

Toro 27-7211

SCREW-SHOULDER

$5.49

$

In Stock, only 1 left!

0

17

Toro 44-0590

HANDLE LATCH

$37.99

$

Usually ships in 3-6 days

0

18

Toro 27-6510

HANDLE LATCH SPACER

$4.99

$

Usually ships in 3-6 days

0

19

Toro 32146-5

Nut
(Superseded to 32153-3)

$6.49

$

Usually ships in 3-6 days

0

20

Toro 3230-5

SCREW-CARR

$0.99

$

In Stock, Qty 6

0

21

Toro 2410-49

CAP-VINYL
(Superseded to 42452)

$1.49

$

Usually ships in 3-6 days

0

22

Toro 42-3923

Ground Speed Control
(Superseded to 42-3922)

$

$

Not available

23

Toro 42-3913

Throttle Control
(Superseded to 46-6020)

$

$

Not available

24

Toro 321-9

SCREW-HH

$4.99

$

In Stock, only 2 left!

0

25

Toro 43-7260

SHOULDER BOLT

$16.99

$

Usually ships in 3-6 days

0

26

Toro 32104-76

SCREW-HWHTF

$2.99

$

In Stock, Qty 20+

0
