20810 C - Toro Walk-Behind Mower (SN: 005000001 - 005999999) (1985) REWIND STARTER NO. 590531 Parts Diagram

Walk-Behind Mower

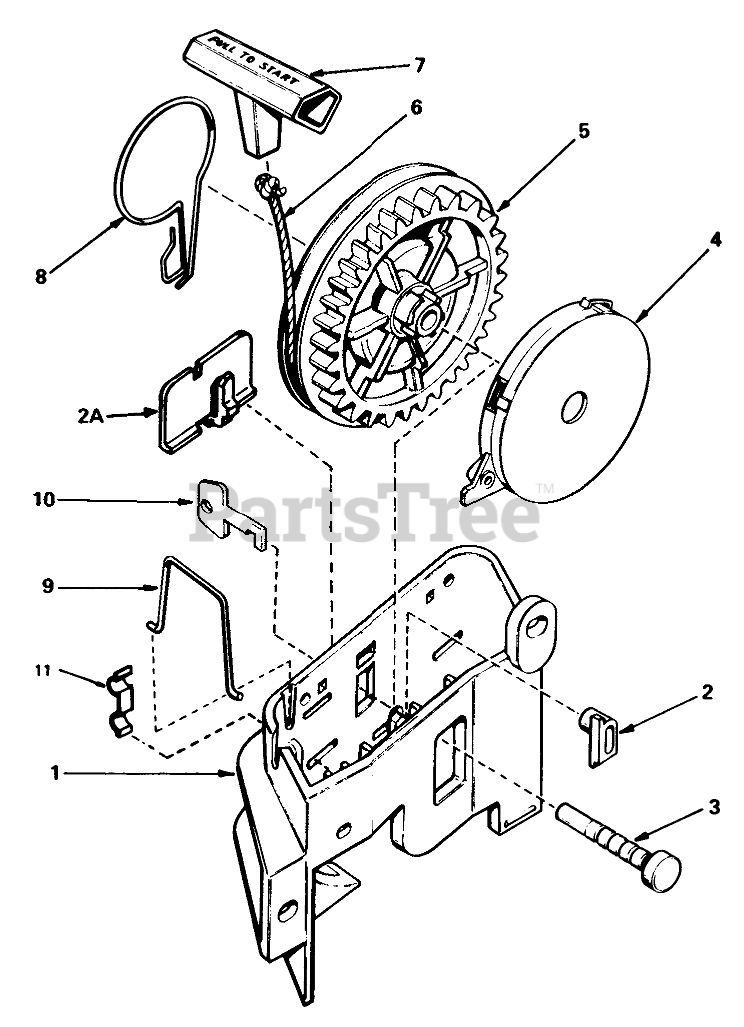

REWIND STARTER NO. 590531 Parts Diagram

  • Title
1

Tecumseh 590523

Bracket Starter

$

$

Currently unavailable

2

Tecumseh 590524

Pawl, Locking Not used on all engine models)

$1.99

$

Usually ships in 3-12 days

0

2A

Tecumseh 590538

Clip, Starter Bracket (Used On Starters Not Equipped With Pawl, Ref. No. 2)

$

$

Currently unavailable

3

Tecumseh 590525

Pin-Pulley

$1.99

$

Usually ships in 3-12 days

0

4

Tecumseh 590526

Spring Assy., Rewind (Incl. Ref. #3)

$14.99

$

Usually ships in 3-12 days

0

5

$21.99

$

Usually ships in 3-12 days

0

6

Tecumseh 590527

Rope Starter (Length 65" & 9/64" Dia.)
(Superseded to 590535)

$9.49

$

In Stock, Qty 12

0

7

Tecumseh 590452

Handle-Starter
(Superseded to 590701)

$6.49

$

In Stock, only 1 left!

0

8

$3.99

$

Usually ships in 3-12 days

0

9

Tecumseh 590529

Clip-Rope

$1.49

$

Usually ships in 3-12 days

0

10

Tecumseh 590530

Key (Not Used On All Engine Models

$1.99

$

Usually ships in 3-12 days

0

11

Tecumseh 590500

Washer-Thrust

$1.99

$

In Stock, only 1 left!

0
