20809 - Toro 48cm Recycler Walk-Behind Mower (SN: 079000001 - 079999999) (1997) BLADE ASSEMBLY Parts Diagram

48cm Recycler Walk-Behind Mower

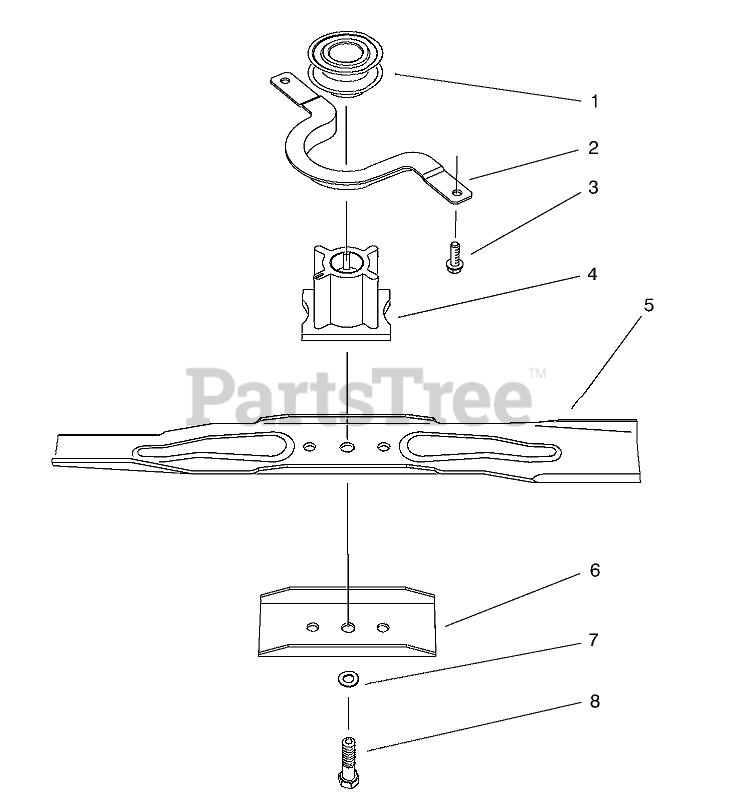

BLADE ASSEMBLY Parts Diagram

  • Title
1

Toro 62-7550

PULLEY-DRIVE, ZONE START

$

$

Not available

2

Toro 71-7960

Guide-Belt
(Superseded to 71-7960-03)

$

$

Not available

3

Toro 32144-4

SCREW-HWH

$1.49

$

In Stock, Qty 20+

0

4

Toro 71-7940

BLADE RETAINER - 25 MM

$

$

Not available

5

Toro 71-9260

Blade
(Superseded to 71-9260-03)

$34.99

$

Usually ships in 3-6 days

0

6

Toro 80-0510

Stiffener
(Superseded to 80-0510-03)

$19.99

$

In Stock, Qty 7

0

7

Toro 3253-22

WASHER-LOCK

$2.99

$

In Stock, only 3 left!

0

8

Toro 26-0672

BOLT-BLADE

$6.99

$

Usually ships in 3-6 days

0
