20806 BC - Toro 48cm Recycler Walk-Behind Mower (SN: 049000001 - 049999999) (1994) HANDLE ASSEMBLY Parts Diagram

48cm Recycler Walk-Behind Mower

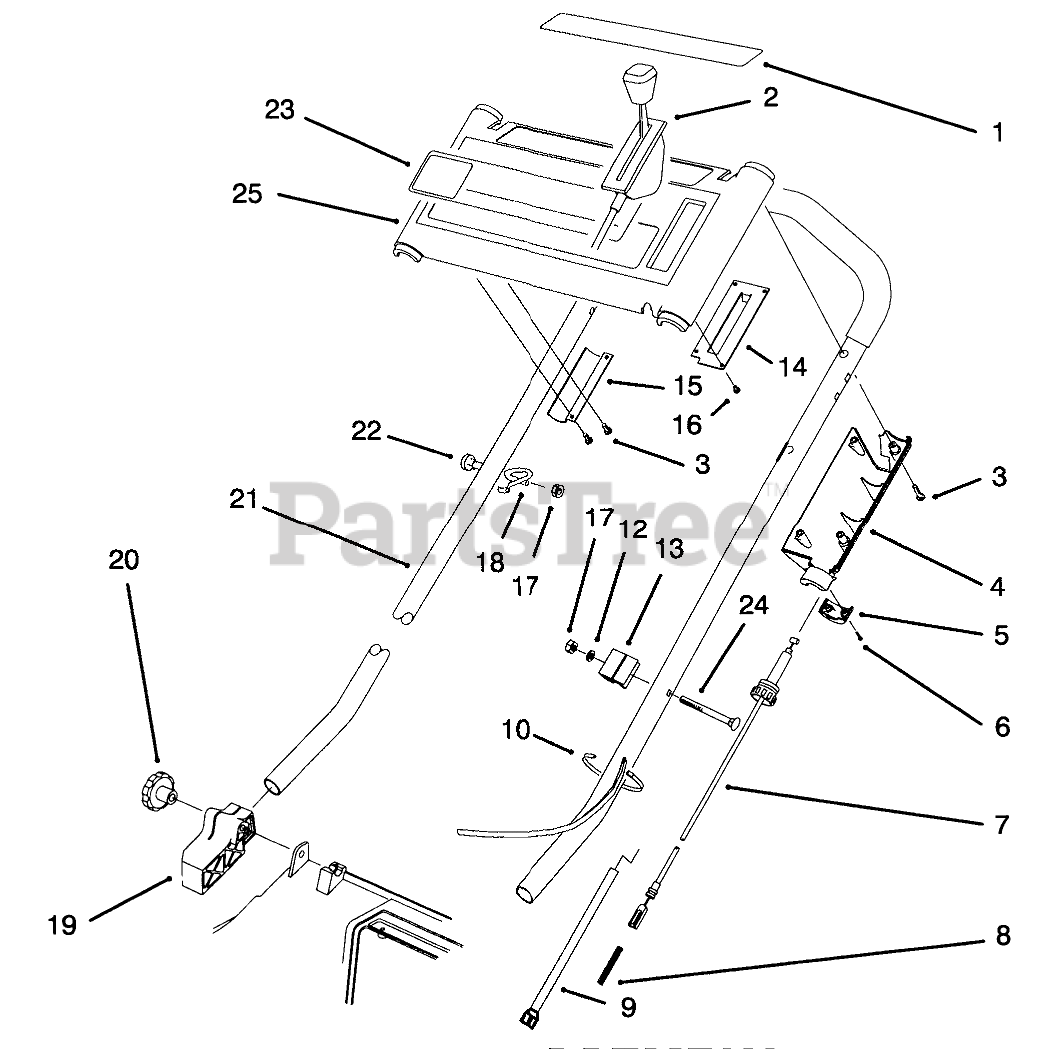

HANDLE ASSEMBLY Parts Diagram

  • Title

1

Toro 93-1120

DECAL - INSTRUCTION

$

$

Not available

2

Toro 93-1117

CONTROL - THROTTLE

$94.99

$

Usually ships in 3-6 days

0

3

Toro 32144-97

SCREW-PPH, PLASTITE

$0.99

$

In Stock, Qty 11

0

4

Toro 93-0339

COVER-THROTTLE, LEVER

$

$

Not available

5

Toro 71-7630

LOWER THROTTLE CAP

$14.99

$

Usually ships in 3-6 days

0

6

Toro 32144-99

#4-14X.62 PLASTITE SCW

$

$

Not available

7

Toro 93-1119

CABLE - TRACTION

$

$

Not available

8

Toro 71-8310

SPRING-COMPRESSION

$4.99

$

Usually ships in 3-6 days

0

9

Toro 93-1116

CABLE - BRAKE

$56.99

$

Usually ships in 3-6 days

0

10

Toro 3290-378

TIE-CABLE

$0.99

$

In Stock, Qty 8

0

12

Toro 3256-22

WASHER-FLAT

$0.99

$

In Stock, Qty 20+

0

13

Toro 46-6980

SUPPORT-CABLE

$15.99

$

Usually ships in 3-6 days

0

14

Toro 71-8040

THROTTLE PLATE

$

$

Not available

15

Toro 71-8130

Bracket-Panel
(Superseded to 71-8130-03)

$

$

Not available

16

Toro 32144-98

#6-19X.25 PLASK FORM SC

$1.99

$

Usually ships in 3-6 days

0

17

Toro 3296-42

NUT-LOCK, NI

$0.99

$

In Stock, Qty 20+

0

18

Toro 46-8081

GUIDE-ROPE

$20.99

$

Usually ships in 3-6 days

0

19

Toro 71-8100

MOUNT-HANDLE, RH

$

$

Not available

Toro 71-8090

MOUNT-HANDLE, LH

Note: Not illustrated

$

$

Not available

20

Toro 19-4050

KNOB

$17.99

$

In Stock, only 3 left!

0

21

Toro 71-9023

HANDLE (DIPPED)

$191.99

$

Usually ships in 3-6 days

0

22

Toro 46-6435

Screw-Handle
(Superseded to 321-13)

$4.49

$

In Stock, Qty 10

0

23

Toro 92-7865

DECAL - PANEL

$

$

Not available

24

Toro 46-6432

SCREW-HANDLE

$12.99

$

Usually ships in 3-6 days

0

25

Toro 16-8229

Panel-Control (Incl Ref.#1.&23)

$

$

Not available
