20806 BC - Toro 48cm Recycler Walk-Behind Mower (SN: 049000001 - 049999999) (1994) CONTROL ASSEMBLY Parts Diagram

48cm Recycler Walk-Behind Mower

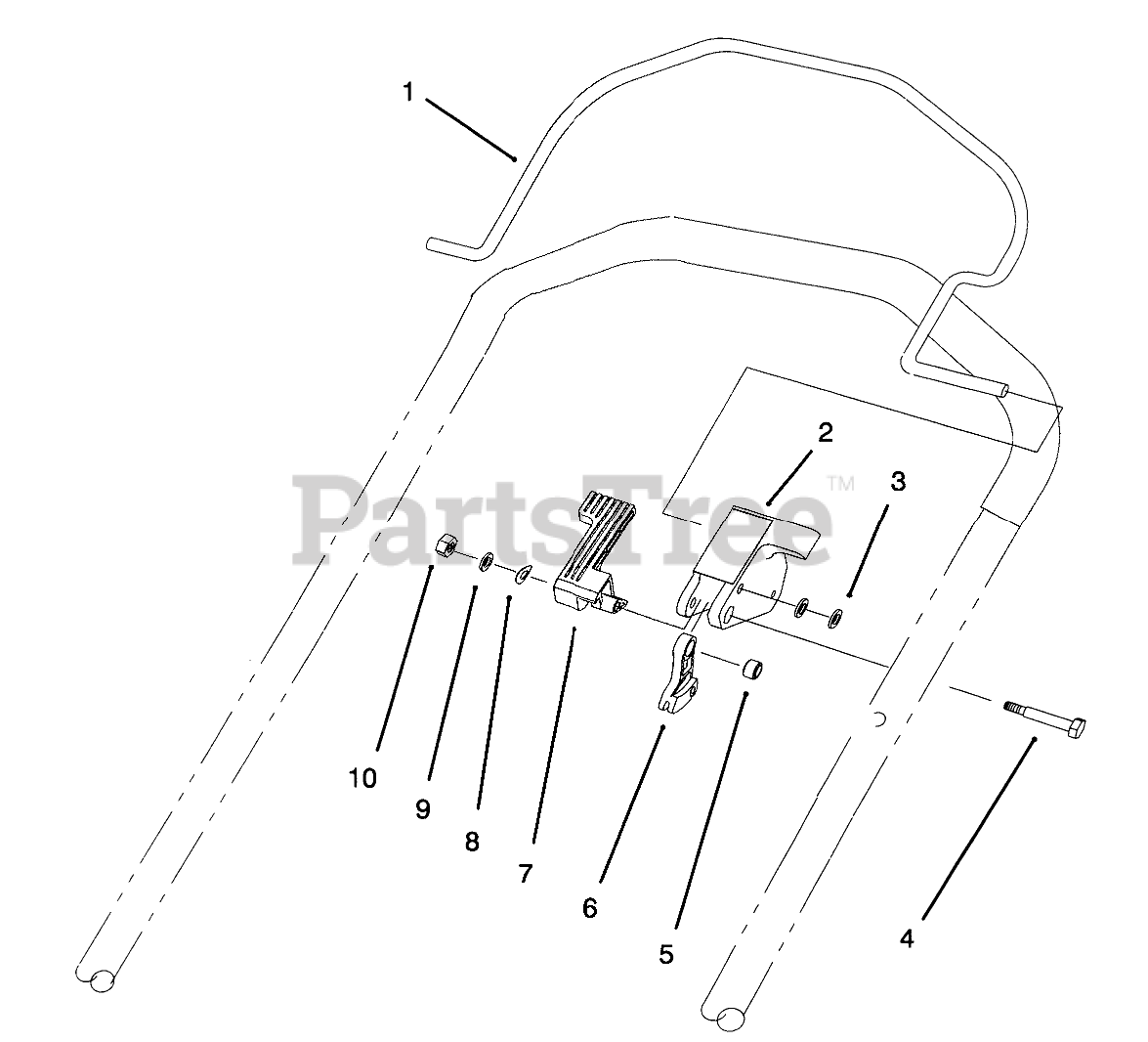

CONTROL ASSEMBLY Parts Diagram

  • Title
1

Toro 93-0335

BAIL - CONTROL

$

$

Not available

2

Toro 93-0340

STOP - PIVOT, PLASTIC

$29.99

$

In Stock, Qty 6

0

3

Toro 3256-70

WASHER-FLAT

$1.49

$

In Stock, Qty 11

0

4

Toro 92-3132

SHOULDER BOLT

$

$

Not available

5

Toro 92-3133

SPACER-LEVER, TRACTION

$3.99

$

In Stock, Qty 5

0

6

Toro 46-5520

LEVER-TRACTION

$

$

Not available

7

Toro 92-2299

LEVER - SHIFT

$25.99

$

Usually ships in 3-6 days

0

8

Toro 92-2298

WASHER - SPRING

$

$

Not available

9

Toro 3256-49

WASHER-PLAIN

$0.99

$

In Stock, Qty 8

0

10

Toro 3296-2

NUT-LOCK, NI

$2.49

$

In Stock, Qty 20+

0
