20804 - Toro 48cm Recycler Walk-Behind Mower (SN: 099000001 - 099999999) (1999) ENGINE BRIGGS & STRATTON MODEL 12F802-1767-E1 Parts Diagram

48cm Recycler Walk-Behind Mower

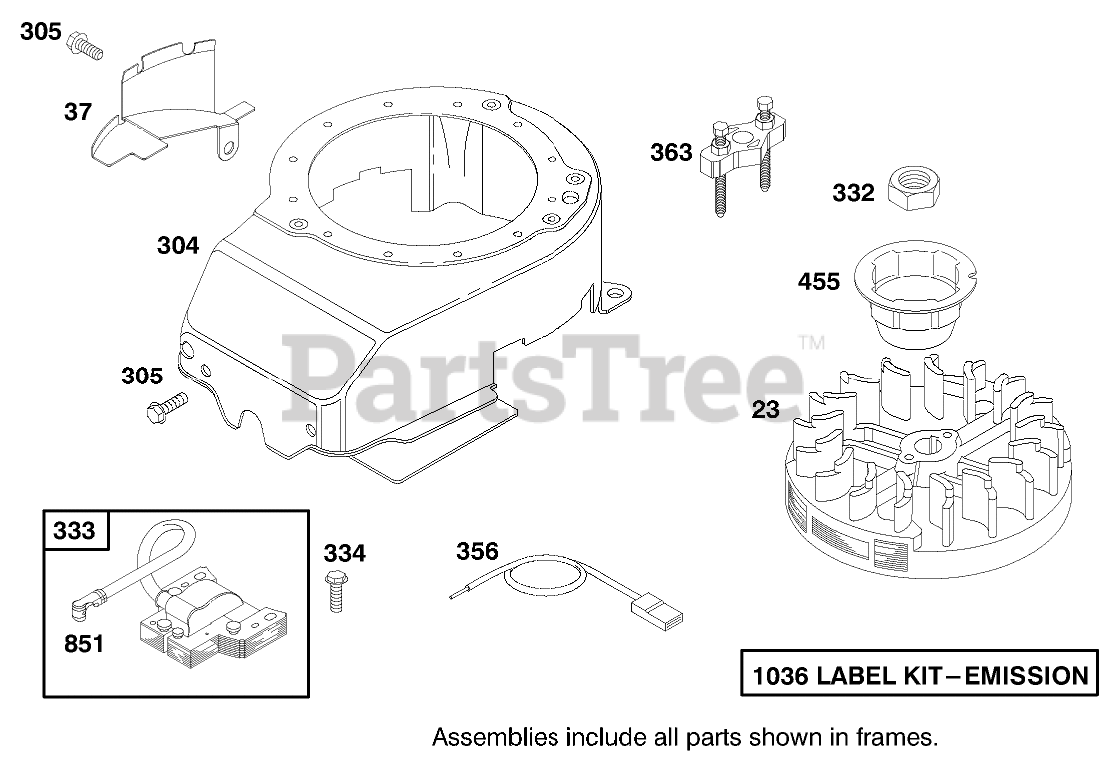

ENGINE BRIGGS & STRATTON MODEL 12F802-1767-E1 Parts Diagram

  • Title

23

Briggs & Stratton 492177

Flywheel
(Superseded to 691987)

Note: Obtain parts from www.briggsandstratton.com

$112.99

$

In Stock, only 1 left!

0

37

Briggs & Stratton 224511

Flywheel Guard
(Superseded to 793756)

Note: Obtain parts from www.briggsandstratton.com

$10.99

$

In Stock, only 4 left!

0

304

Briggs & Stratton 493293

Housing-Blower
(Superseded to 795071)

Note: Obtain parts from www.briggsandstratton.com

$102.99

$

In Stock, only 2 left!

0

305

Briggs & Stratton 94744

Screw-Hex
(Superseded to 691108)

Note: Obtain parts from www.briggsandstratton.com

$3.49

$

In Stock, Qty 20+

0

332

Briggs & Stratton 94877

Nut-Flywheel
(Superseded to 690662)

Note: Obtain parts from www.briggsandstratton.com

$5.99

$

In Stock, only 1 left!

0

333

Briggs & Stratton 802574

Armature-Magneto
(Superseded to 590454)

Note: Obtain parts from www.briggsandstratton.com

$57.99

$

In Stock, Qty 20+

0

334

Briggs & Stratton 94731

Screw-Sem
(Superseded to 691061)

Note: Obtain parts from www.briggsandstratton.com

$3.49

$

In Stock, Qty 20+

0

356

Briggs & Stratton 497833

Wire-Stop
(Superseded to 692390)

Note: Obtain parts from www.briggsandstratton.com

$

$

Not available

363

Briggs & Stratton 19069

Puller-Flywheel

Note: Obtain parts from www.briggsandstratton.com

$23.99

$

In Stock, only 1 left!

0

455

Briggs & Stratton 225121

Cup-Starter
(Superseded to 695161)

Note: Obtain parts from www.briggsandstratton.com

$37.99

$

Usually ships in 2-12 days

0

851

Briggs & Stratton 493880

Terminal-Spark Plug
(Superseded to 493880S)

Note: Obtain parts from www.briggsandstratton.com

$3.49

$

In Stock, Qty 20+

0

1036

Briggs & Stratton 499341

Emissions Label

Note: Obtain parts from www.briggsandstratton.com

$3.49

$

In Stock, only 1 left!

0
