20804 - Toro 48cm Recycler Walk-Behind Mower (SN: 099000001 - 099999999) (1999) DECK SUSPENSION ASSEMBLY Parts Diagram

48cm Recycler Walk-Behind Mower

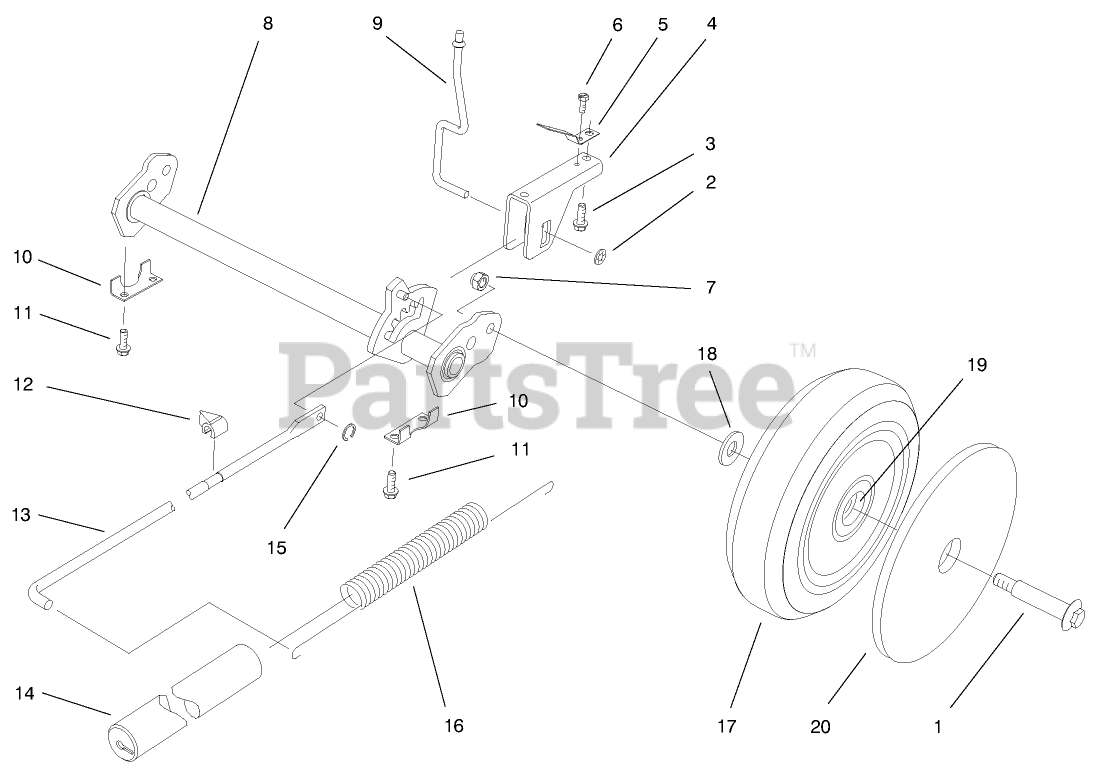

DECK SUSPENSION ASSEMBLY Parts Diagram

  • Title

1

Toro 92-1057

BOLT-SHOULDER

$3.99

$

In Stock, Qty 9

0

2

Toro 32112-13

PUSHNUT

$2.49

$

Usually ships in 3-6 days

0

3

Toro 63-8590

SCREW

$1.49

$

In Stock, only 4 left!

0

4

Toro 71-8080

SADDLE - HOC

$

$

Not available

5

Toro 71-8060

SPRING - TRIGGER RET

$

$

Not available

6

Toro 32144-31

SCREW 8 - 32 X 250

$

$

Not available

7

Toro 603773

NUT

$2.99

$

Usually ships in 3-6 days

0

8

Toro 71-7800

PIVOT ARM REAR WA

$280.99

$

Usually ships in 3-6 days

0

9

Toro 71-7840

TRIGGER ROD

$27.99

$

Usually ships in 3-6 days

0

10

Toro 71-7770

REAR SECURING PLATE

$

$

Not available

11

Toro 32144-4

SCREW-HWH

$1.49

$

In Stock, Qty 20+

0

12

Toro 71-7980

INDICATOR-HEIGHT OF CUT

$9.99

$

Usually ships in 3-6 days

0

13

Toro 71-7970

LINK ROD

$

$

Not available

14

Toro 71-8450

COVER-SPRING

$

$

Currently unavailable

15

Toro 32151-93

GRIP RING

$0.99

$

Usually ships in 3-6 days

0

16

Toro 71-7740

SPRING-COUNTERBALANCE

$47.99

$

Usually ships in 3-6 days

0

17

Toro 92-9592

Rear Wheel & Tire Assembly (Incl. Ref. #19)

$60.99

$

In Stock, only 4 left!

0

18

Toro 40-1940

WASHER

$2.99

$

In Stock, Qty 18

0

19

Toro 27-6250

BUSHING

$2.99

$

In Stock, Qty 9

0

20

Toro 92-7663

COVER-WHEEL
(Superseded to 100-6351)

$21.99

$

Usually ships in 3-6 days

0
