20804 - Toro 48cm Recycler Walk-Behind Mower (SN: 079000001 - 079999999) (1997) ENGINE BRIGGS & STRATTON MODEL 12F802-0667-01 Parts Diagram

48cm Recycler Walk-Behind Mower

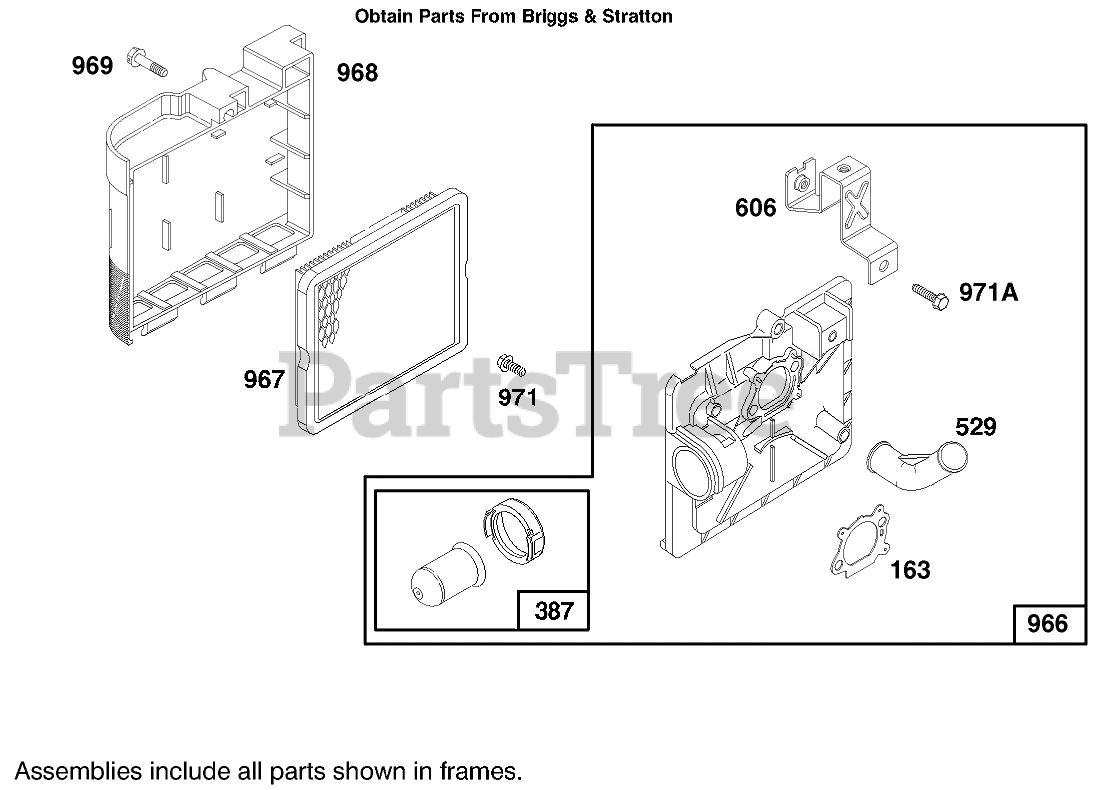

ENGINE BRIGGS & STRATTON MODEL 12F802-0667-01 Parts Diagram

  • Title
163

Briggs & Stratton 272653

Gasket-Cleaner, Air
(Superseded to 795629)

$3.49

$

In Stock, Qty 20+

0

188

Briggs & Stratton 398540

Screw-Shoulder
(Superseded to 692311)

$7.49

$

In Stock, only 1 left!

0

387

Briggs & Stratton 496115

CarburetorPrimer
(Superseded to 694395)

$4.49

$

In Stock, Qty 20+

0

529

Briggs & Stratton 281299

Grommet
(Superseded to 691923)

$9.49

$

In Stock, only 1 left!

0

606

Briggs & Stratton 224815

Strap-Bracket
(Superseded to 795259)

$32.99

$

In Stock, Qty 7

0

966

Briggs & Stratton 496116

Base-Primer, Air Cleaner
(Superseded to 795259)

$32.99

$

In Stock, Qty 7

0

967

Briggs & Stratton 491588

Filter-Air Cleaner, Cartridge
(Superseded to 491588S)

$6.49

$

In Stock, Qty 20+

0

968

Briggs & Stratton 281340

Air Cleaner Cover
(Superseded to 692298)

$27.99

$

In Stock, only 1 left!

0

969

Briggs & Stratton 94120

Screw-Cover Mt.
(Superseded to 690670)

$5.99

$

In Stock, Qty 5

0

971

Briggs & Stratton 94121

Screw-Air Cleaner
(Superseded to 692523)

$7.49

$

In Stock, only 2 left!

0

971A

Briggs & Stratton 94749

Screw-Hex.
(Superseded to 691669)

$3.99

$

In Stock, only 1 left!

0
