20803 - Toro 48cm Recycler Walk-Behind Mower (SN: 099000001 - 099999999) (1999) ENGINE BRIGGS & STRATTON MODEL 12F802-1787-E1 Parts Diagram

48cm Recycler Walk-Behind Mower

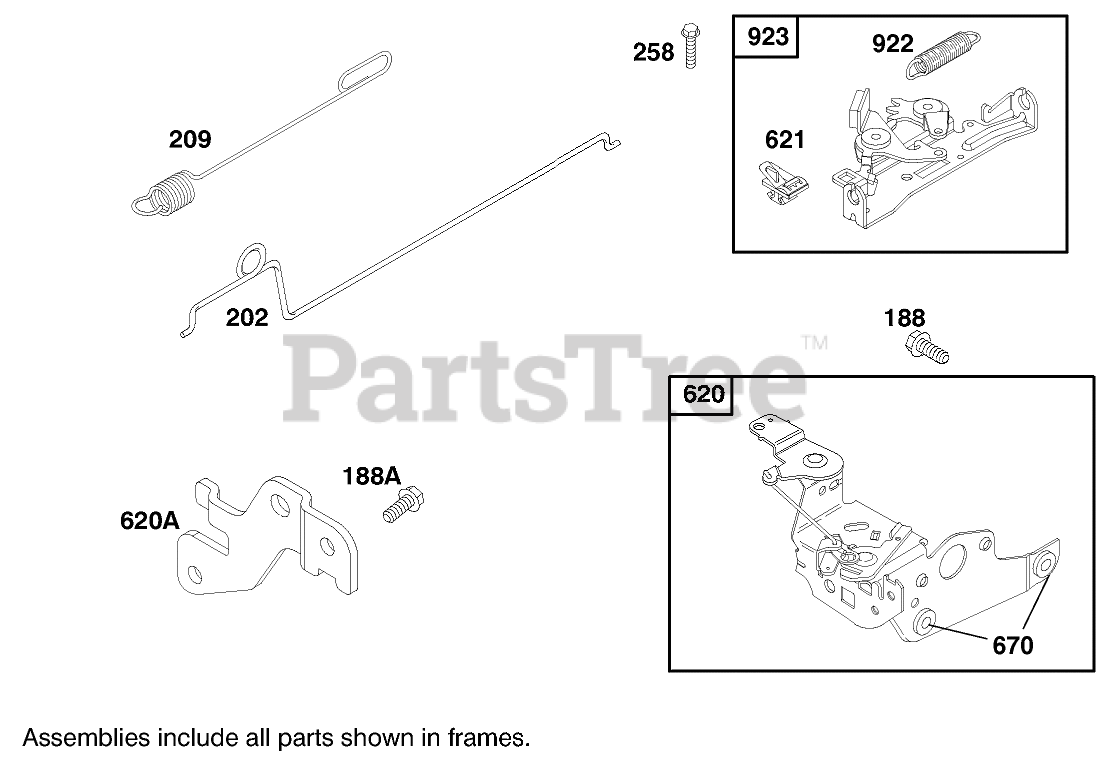

ENGINE BRIGGS & STRATTON MODEL 12F802-1787-E1 Parts Diagram

  • Title

188

Briggs & Stratton 94644

Screw-Hex.
(Superseded to 690877)

Note: Obtain parts from www.briggsandstratton.com

$3.99

$

In Stock, Qty 5

0

188A

Briggs & Stratton 94874

Screw-Hex.
(Superseded to 690664)

Note: Obtain parts from www.briggsandstratton.com

$5.49

$

In Stock, only 1 left!

0

202

Briggs & Stratton 262579

Link-Govemor
(Superseded to 691829)

Note: Obtain parts from www.briggsandstratton.com

$8.49

$

Usually ships in 2-12 days

0

209

Briggs & Stratton 263046

Spring-Governor
(Superseded to 691292)

Note: Obtain parts from www.briggsandstratton.com

$8.49

$

Usually ships in 2-12 days

0

258

Briggs & Stratton 94512

Screw-Sem
(Superseded to 691648)

Note: Obtain parts from www.briggsandstratton.com

$4.99

$

Usually ships in 2-12 days

0

620

Briggs & Stratton 497203

Bracket-Carburetor
(Superseded to 790143)

Note: Obtain parts from www.briggsandstratton.com

$44.99

$

Usually ships in 2-12 days

0

620A

Briggs & Stratton 225152

"U" Bracket
(Superseded to 691223)

Note: Obtain parts from www.briggsandstratton.com

$14.99

$

In Stock, only 1 left!

0

621

Briggs & Stratton 396847

Switch
(Superseded to 692310)

Note: Obtain parts from www.briggsandstratton.com

$5.99

$

In Stock, Qty 20+

0

670

Briggs & Stratton 493823

Spacer

Note: Obtain parts from www.briggsandstratton.com

$6.49

$

In Stock, only 1 left!

0

670

Briggs & Stratton 493823

Spacer

Note: Included in Gasket Set-Part No. 497316.

$6.49

$

In Stock, only 1 left!

0

922

Briggs & Stratton 262640

Brake Spring
(Superseded to 691831)

Note: Obtain parts from www.briggsandstratton.com

$10.99

$

In Stock, only 2 left!

0

923

Briggs & Stratton 493442

Brake
(Superseded to 796387)

Note: Obtain parts from www.briggsandstratton.com

$

$

Not available
