20803 - Toro 48cm Recycler Walk-Behind Mower (SN: 099000001 - 099999999) (1999) ENGINE BRIGGS & STRATTON MODEL 12F802-1787-E1 Parts Diagram

48cm Recycler Walk-Behind Mower

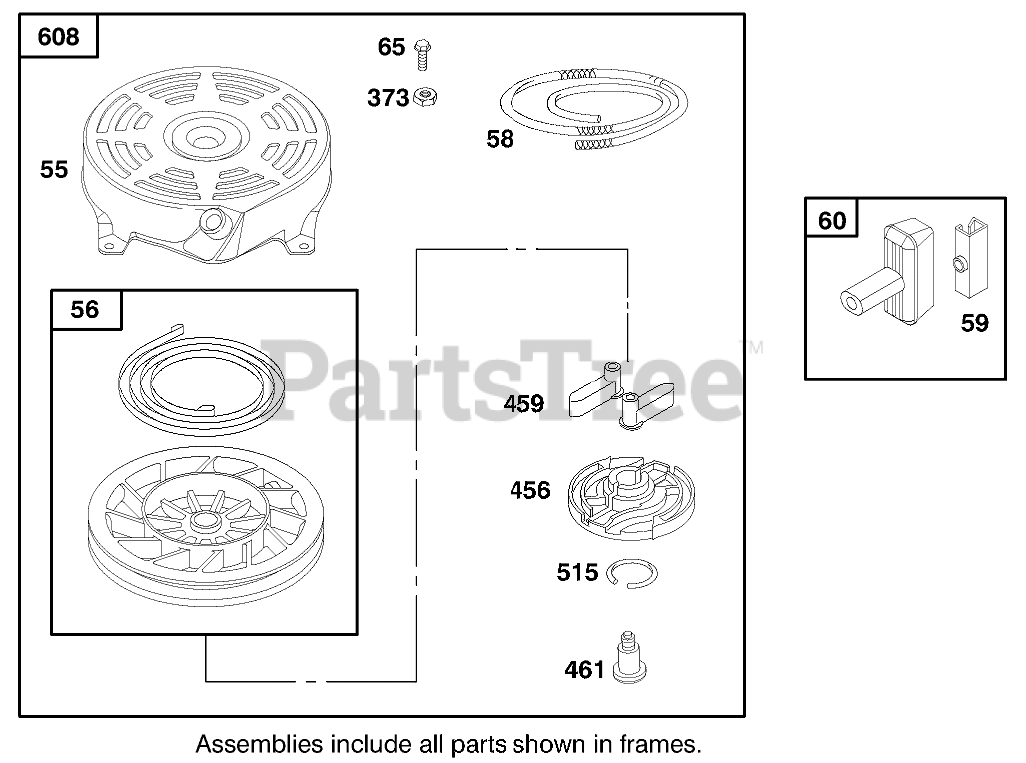

ENGINE BRIGGS & STRATTON MODEL 12F802-1787-E1 Parts Diagram

  • Title

55

Briggs & Stratton 497440

Rewind StarterHousing
(Superseded to 691421)

Note: Obtain parts from www.briggsandstratton.com

$64.99

$

Usually ships in 2-12 days

0

56

Briggs & Stratton 498144

Pulley and Spring ASM

Note: Obtain parts from www.briggsandstratton.com

$19.99

$

In Stock, Qty 20+

0

58

Briggs & Stratton 280399

Rope?Starter (Cut to Required Length)
(Superseded to 280399S)

Note: Obtain parts from www.briggsandstratton.com

$5.99

$

In Stock, Qty 9

0

59

Briggs & Stratton 224467

Insert-Grip
(Superseded to 493926)

Note: Obtain parts from www.briggsandstratton.com

$

$

Not available

60

Briggs & Stratton 493926

Grip-Starter Rope

Note: Obtain parts from www.briggsandstratton.com

$

$

Not available

65

Briggs & Stratton 94904

Screw-Hex
(Superseded to 690837)

Note: Obtain parts from www.briggsandstratton.com

$3.49

$

In Stock, Qty 20+

0

373

Briggs & Stratton 94908

Nut-Hex.
(Superseded to 690800)

Note: Obtain parts from www.briggsandstratton.com

$3.99

$

In Stock, Qty 13

0

456

Briggs & Stratton 281503

Retainer-Spring
(Superseded to 692299)

Note: Obtain parts from www.briggsandstratton.com

$4.99

$

In Stock, only 2 left!

0

459

Briggs & Stratton 281505

Ratchet-Pawl
(Superseded to 281505S)

Note: Obtain parts from www.briggsandstratton.com

$3.49

$

In Stock, Qty 13

0

461

Briggs & Stratton 94943

Pin-Starter
(Superseded to 691696)

Note: Obtain parts from www.briggsandstratton.com

$11.99

$

In Stock, Qty 6

0

515

Briggs & Stratton 263073

Spring-Torsion
(Superseded to 691855)

Note: Obtain parts from www.briggsandstratton.com

$4.49

$

In Stock, only 3 left!

0

608

Briggs & Stratton 497680

Starter-Rewind

Note: Obtain parts from www.briggsandstratton.com

$49.99

$

In Stock, Qty 20+

0
