20803 - Toro 48cm Recycler Walk-Behind Mower (SN: 089000001 - 089999999) (1998) DECK ASSEMBLY Parts Diagram

48cm Recycler Walk-Behind Mower

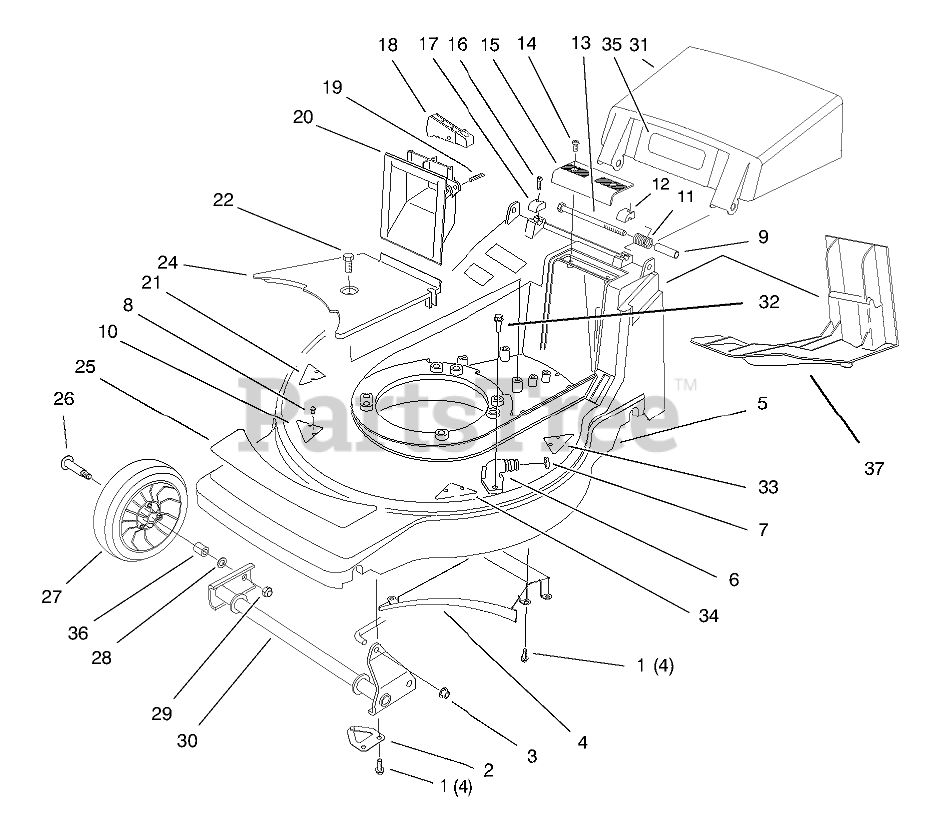

DECK ASSEMBLY Parts Diagram

  • Title

1

Toro 32144-4

SCREW-HWH

$1.49

$

In Stock, Qty 20+

0

2

Toro 71-8830

SHAFT RETAINER ASM

$7.49

$

Usually ships in 3-6 days

0

3

Toro 32112-11

NUT-PUSH

$1.49

$

In Stock, Qty 6

0

4

Toro 71-7990

Ramp-Discharge
(Superseded to 71-7990-03)

$

$

Not available

5

Toro 95-6134

Housing Assembly (Incl. Ref.# 6-8, 10, 21, 25 & 32-34)

$

$

Not available

6

Toro 95-2747

FITTING-WASHOUT
(Superseded to 133-9289)

$6.49

$

In Stock, Qty 5

0

7

Toro 46-6290

O-RING

$2.99

$

In Stock, only 4 left!

0

8

Toro 32144-111

SCREW-PPH

$0.99

$

In Stock, Qty 20+

0

9

Toro 71-8580

SPACER-DOOR

$2.49

$

Usually ships in 3-6 days

0

10

Toro 71-8920

KICKER

$31.99

$

Usually ships in 3-6 days

0

11

Toro 71-9840

SPRING-DOOR

$12.99

$

Usually ships in 3-6 days

0

12

Toro 71-7900

CAP-HINGE BOLT, LH

$4.99

$

Usually ships in 3-6 days

0

13

Toro 322-29

SCREW-HH

$2.99

$

Usually ships in 3-6 days

0

14

Toro 32144-97

SCREW-PPH, PLASTITE

$0.99

$

In Stock, Qty 11

0

15

Toro 71-7860

GRIP-UPPER

$

$

Not available

16

Toro 65-5210

SCREW-HSH

$4.49

$

Usually ships in 3-6 days

0

17

Toro 71-7910

CAP-HINGE BOLT, RH

$4.99

$

Usually ships in 3-6 days

0

18

Toro 71-7930

TRIGGER - HOC

$9.99

$

Usually ships in 3-6 days

0

19

Toro 3284-5

PIN-SPIRAL

$

$

Not available

20

Toro 71-7870

GRIP - LOWER

$

$

Not available

21

Toro 71-9230

KICKER

$

$

Not available

22

Toro 32144-70

SCREW-HWHTF

$2.99

$

In Stock, Qty 20+

0

24

Toro 71-7920

BELT COVER

$

$

Not available

25

Toro 92-7863

DECAL - DECK

$

$

Not available

26

Toro 27-6230

BOLT-WHEEL

$8.49

$

In Stock, only 1 left!

0

27

Toro 46-1113

Wheel &Tire Assembly 7" (Incl. Ref. # 36)

$

$

Not available

28

Toro 40-1940

WASHER

$2.99

$

In Stock, Qty 20+

0

29

Toro 3296-5

NUT-HEX

$3.49

$

In Stock, Qty 8

0

30

Toro 71-7820

FRONT PIVOT WA

$201.99

$

Usually ships in 3-6 days

0

31

Toro 17-1569

Door-Discharge (Incl. Ref. # 35)

$102.99

$

Usually ships in 3-6 days

0

32

Toro 46-6811

SCREW-HWH

$3.49

$

In Stock, only 3 left!

0

33

Toro 71-9250

KICKER

$31.99

$

Usually ships in 3-6 days

0

34

Toro 71-9440

KICKER

$41.99

$

Usually ships in 3-6 days

0

35

Toro 93-4105

DECAL-DANGER
(Superseded to 112-8759)

$14.99

$

Usually ships in 3-6 days

0

36

Toro 27-6250

BUSHING

$2.99

$

In Stock, Qty 15

0

37

Toro 71-9990

DISCHARGE PLUG

$

$

Not available
