20803 B - Toro 48cm Recycler Walk-Behind Mower (SN: 069000001 - 069999999) (1996) REAR AXLE ASSEMBLY (MODEL NO. 20803B ONLY) Parts Diagram

48cm Recycler Walk-Behind Mower

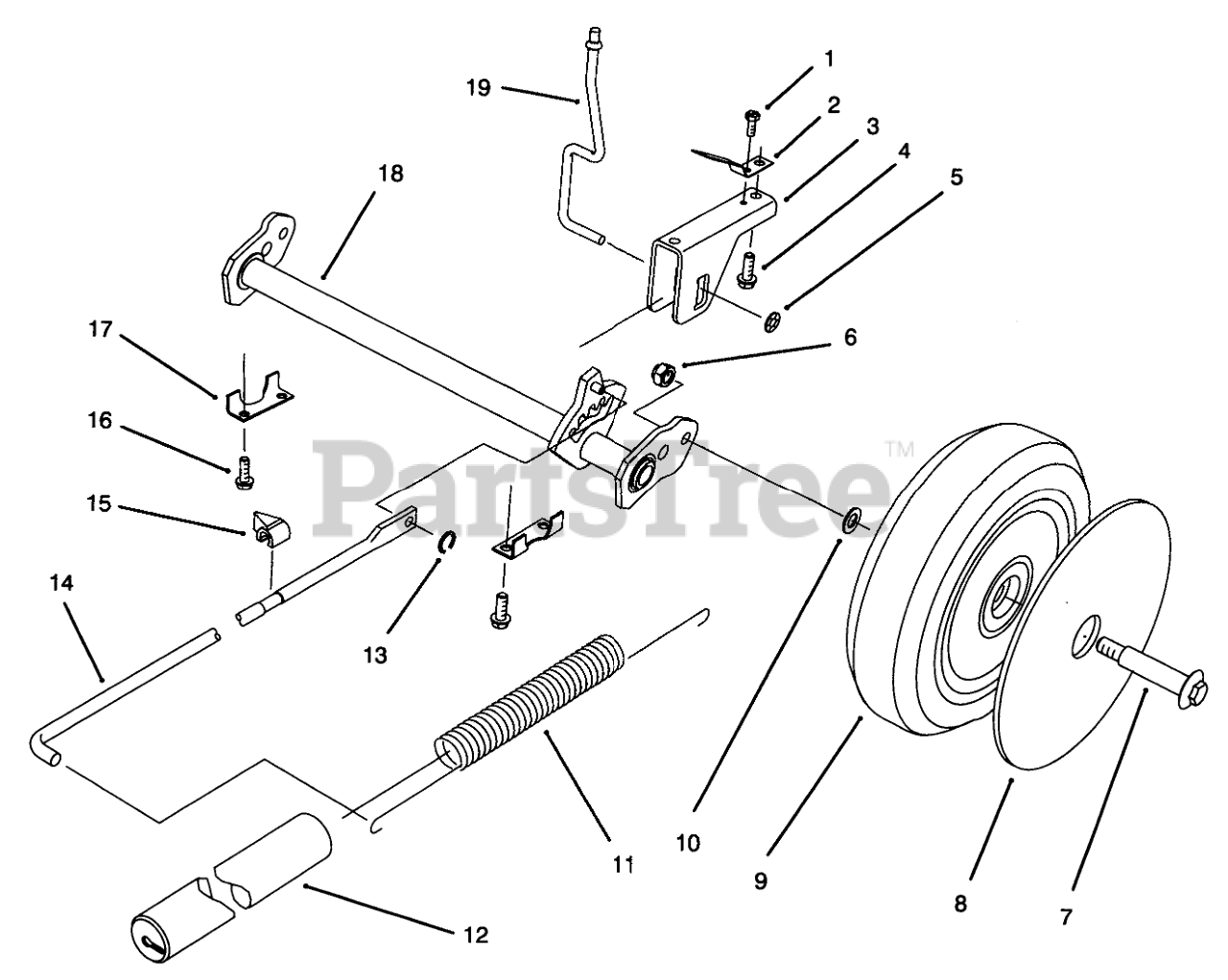

REAR AXLE ASSEMBLY (MODEL NO. 20803B ONLY) Parts Diagram

  • Title

1

Toro 32144-31

SCREW 8 - 32 X 250

$

$

Not available

2

Toro 71-8060

SPRING - TRIGGER RET

$

$

Not available

3

Toro 71-8080

SADDLE - HOC

$

$

Not available

4

Toro 63-8590

SCREW

$1.49

$

In Stock, only 4 left!

0

5

Toro 32112-13

PUSHNUT

$2.49

$

Usually ships in 3-6 days

0

6

Toro 3296-5

NUT-HEX

$3.49

$

In Stock, Qty 8

0

7

Toro 27-6230

BOLT-WHEEL

$8.49

$

Usually ships in 3-6 days

0

8

Toro 92-7663

COVER-WHEEL
(Superseded to 100-6351)

$21.99

$

Usually ships in 3-6 days

0

9

Toro 14-9949

Wheel-ASM
(Superseded to 51-2751)

$34.99

$

In Stock, only 2 left!

0

10

Toro 40-1940

WASHER

$2.99

$

In Stock, Qty 18

0

11

Toro 71-7740

SPRING-COUNTERBALANCE

$47.99

$

Usually ships in 3-6 days

0

12

Toro 71-8450

COVER-SPRING

$

$

Currently unavailable

13

Toro 32151-93

GRIP RING

$0.99

$

Usually ships in 3-6 days

0

14

Toro 71-7970

LINK ROD

$

$

Not available

15

Toro 71-7980

INDICATOR-HEIGHT OF CUT

$9.99

$

Usually ships in 3-6 days

0

16

Toro 32144-4

SCREW-HWH

$1.49

$

In Stock, Qty 20+

0

17

Toro 71-7770

REAR SECURING PLATE

$

$

Not available

18

Toro 71-7800

PIVOT ARM REAR WA

Note: Obtain from Toro Europe N.V.

$280.99

$

Usually ships in 3-6 days

0

19

Toro 71-7840

TRIGGER ROD

$27.99

$

Usually ships in 3-6 days

0
