20803 B - Toro 48cm Recycler Walk-Behind Mower (SN: 069000001 - 069999999) (1996) HANDLE ASSEMBLY (MODEL NO. 20808B ONLY) Parts Diagram

48cm Recycler Walk-Behind Mower

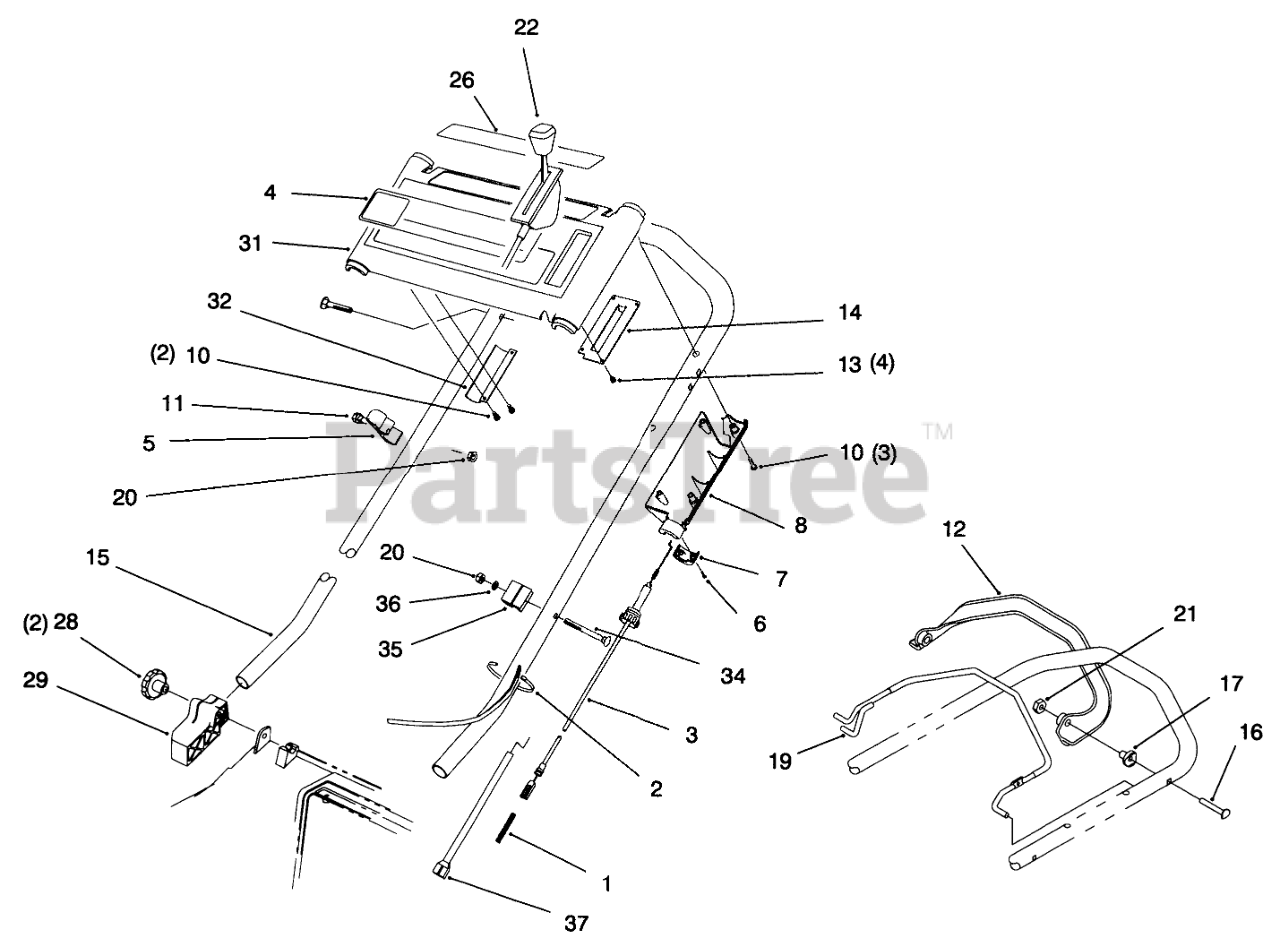

HANDLE ASSEMBLY (MODEL NO. 20808B ONLY) Parts Diagram

  • Title

1

Toro 71-8310

SPRING-COMPRESSION

$4.99

$

Usually ships in 3-6 days

0

2

Toro 3290-378

TIE-CABLE

$0.99

$

In Stock, Qty 8

0

3

Toro 94-6754

ASM - TRACTION CABLE

$71.99

$

Usually ships in 3-6 days

0

4

Toro 92-7865

DECAL - PANEL

$

$

Not available

5

Toro 93-3772

GUIDE - ROPE

Note: Obtain from Toro Europe N.V.

$

$

Not available

6

Toro 32144-99

#4-14X.62 PLASTITE SCW

$

$

Not available

7

Toro 71-7630

LOWER THROTTLE CAP

$14.99

$

Usually ships in 3-6 days

0

8

Toro 93-0339

COVER-THROTTLE, LEVER

$

$

Not available

10

Toro 32144-97

SCREW-PPH, PLASTITE

$0.99

$

In Stock, Qty 7

0

11

Toro 321-52

.250-20X1.625 HH SCREW

$

$

Not available

12

Toro 94-4365

BAIL - TRACTION

$

$

Not available

13

Toro 32144-98

#6-19X.25 PLASK FORM SC

$

$

Not available

14

Toro 71-8040

THROTTLE PLATE

$

$

Not available

15

Toro 94-4367

Handle
(Superseded to 94-4367-05)

$

$

Not available

16

Toro 17-9428

SCREW-HANDLE

$1.99

$

Usually ships in 3-6 days

0

17

Toro 66-0330

SPACER-SUPPORT

$7.49

$

Usually ships in 3-6 days

0

19

Toro 94-4364

Bail-Brake
(Superseded to 95-4454-03)

$

$

Not available

20

Toro 3296-73

NUT-LOCK, NI

$5.49

$

In Stock, Qty 8

0

21

Toro 3296-74

NUT-LOCK NI
(Superseded to 3296-72)

$2.99

$

In Stock, Qty 20+

0

22

Toro 93-1117

CONTROL - THROTTLE

$113.99

$

Usually ships in 3-6 days

0

26

Toro 94-6026

DECAL - CONTROL PANEL

$

$

Not available

28

Toro 19-4050

KNOB

$17.99

$

In Stock, only 2 left!

0

29

Toro 71-8100

MOUNT-HANDLE, RH

Note: Obtain from Toro Europe N.V.

$

$

Not available

Toro 71-8090

MOUNT-HANDLE, LH

Note: Not illustrated

$

$

Not available

Toro 71-8090

MOUNT-HANDLE, LH

Note: Obtain from Toro Europe N.V.

$

$

Not available

31

Toro 17-4319

Panel-Control (Incl. Ref. #4,26)
(Superseded to 94-9436)

$

$

Not available

32

Toro 71-8130

Bracket-Panel
(Superseded to 71-8130-03)

$

$

Not available

34

Toro 92-2270

SCREW-HANDLE

$8.49

$

In Stock, only 3 left!

0

35

Toro 46-6980

SUPPORT-CABLE

$15.99

$

In Stock, only 1 left!

0

36

Toro 3256-1

WASHER-FLAT

$0.99

$

In Stock, Qty 20+

0

37

Toro 93-1116

CABLE - BRAKE

$68.99

$

Usually ships in 3-6 days

0
