20803 B - Toro 48cm Recycler Walk-Behind Mower (SN: 069000001 - 069999999) (1996) HANDLE ASSEMBLY (MODEL NO. 20803B ONLY) Parts Diagram

48cm Recycler Walk-Behind Mower

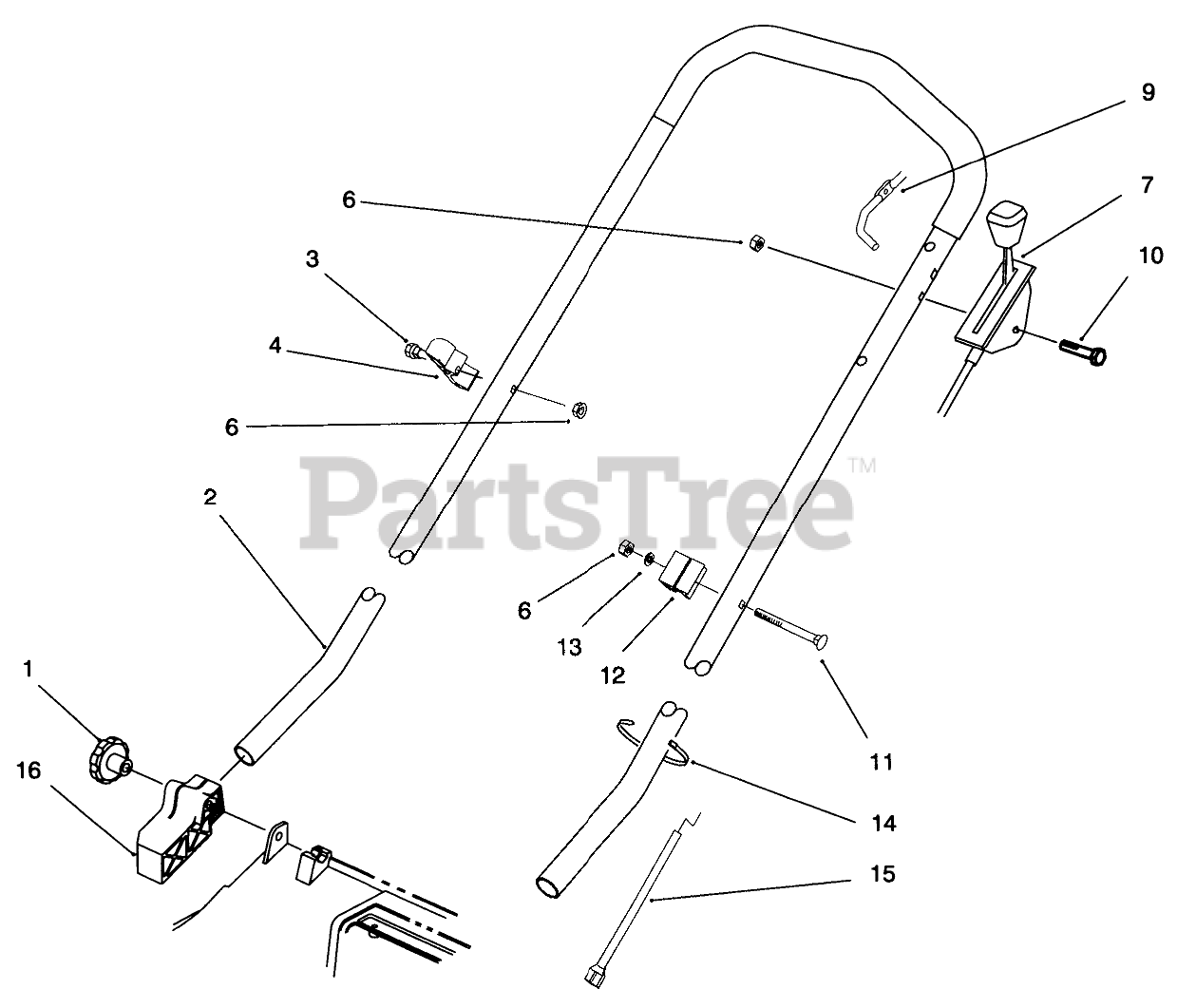

HANDLE ASSEMBLY (MODEL NO. 20803B ONLY) Parts Diagram

  • Title

1

Toro 19-4050

KNOB

$17.99

$

In Stock, only 3 left!

0

2

Toro 94-4375

HANDLE

$148.99

$

Usually ships in 3-6 days

0

3

Toro 321-52

.250-20X1.625 HH SCREW

$

$

Not available

4

Toro 93-3772

GUIDE - ROPE

$

$

Not available

6

Toro 3296-73

NUT-LOCK, NI

$5.49

$

In Stock, Qty 6

0

7

Toro 93-1118

CONTROL - THROTTLE

$101.99

$

Usually ships in 3-6 days

0

9

Toro 94-4364

Bail-Brake
(Superseded to 95-4454-03)

$

$

Not available

10

Toro 321-48

SCREW-HH

$1.99

$

In Stock, only 2 left!

0

11

Toro 92-2270

SCREW-HANDLE

$8.49

$

In Stock, only 2 left!

0

12

Toro 46-6980

SUPPORT-CABLE

$15.99

$

Usually ships in 3-6 days

0

13

Toro 3256-1

WASHER-FLAT

$0.99

$

In Stock, Qty 20+

0

14

Toro 3290-378

TIE-CABLE

$0.99

$

In Stock, Qty 8

0

15

Toro 93-1116

CABLE - BRAKE

$56.99

$

Usually ships in 3-6 days

0

16

Toro 71-8100

MOUNT-HANDLE, RH

Note: Obtain from Toro Europe N.V.

$

$

Not available

Toro 71-8090

MOUNT-HANDLE, LH

Note: Not illustrated

$

$

Not available

Toro 71-8090

MOUNT-HANDLE, LH

Note: Obtain from Toro Europe N.V.

$

$

Not available
