208 XP (31AM2T7G766) - Troy-Bilt Squall 21" Snow Thrower (2020) Chute Parts Diagram

Squall 21" Snow Thrower

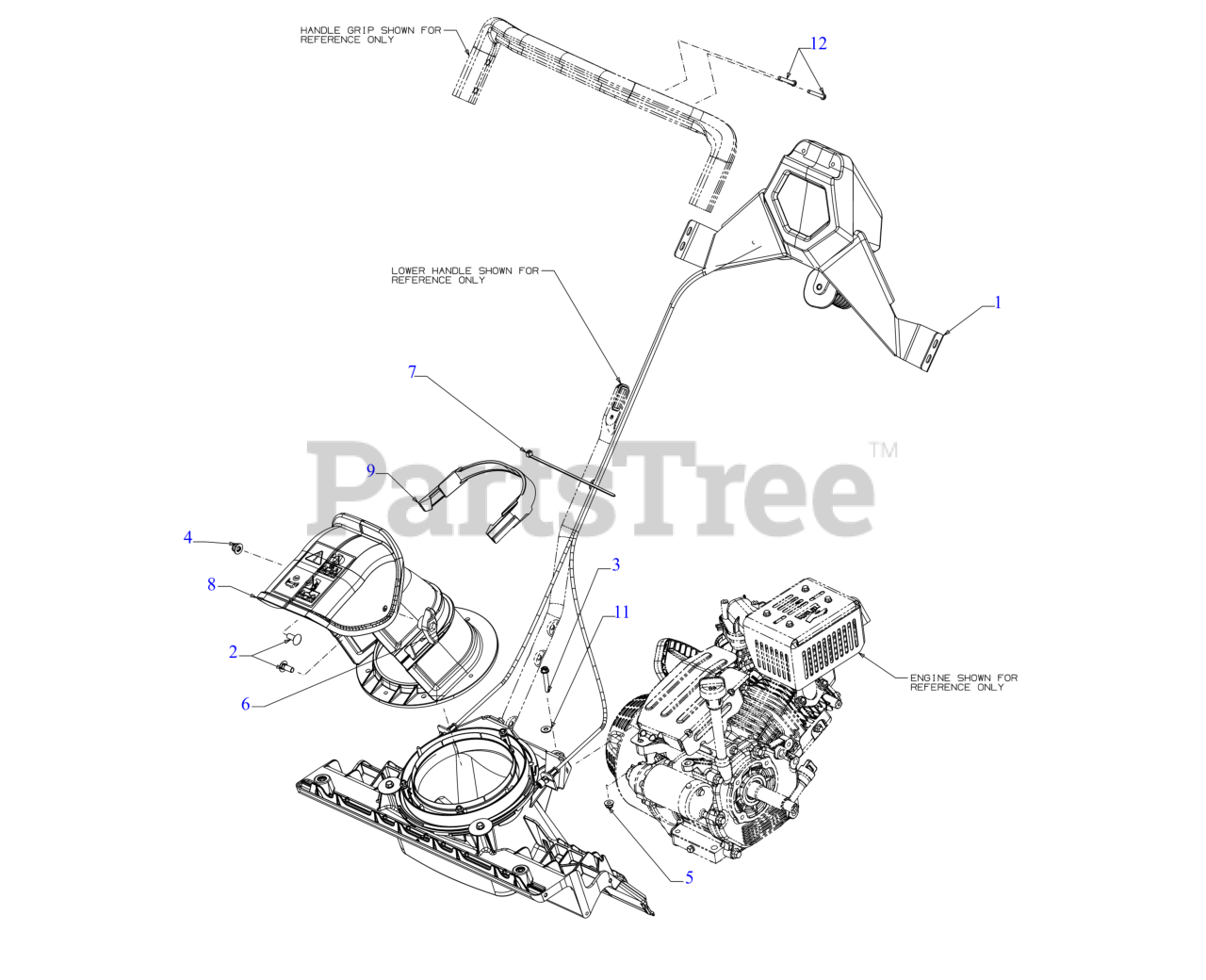

Chute Parts Diagram

  • Title
1

CHUTE CRANK ASSEMBLY

Note: (See Separate Breakdown)

$

$

Not available

2

Troy-Bilt 710-0451

CARRIAGE BOLT 5/16-18 x .75

$4.49

$

In Stock, Qty 20+

0

3

Troy-Bilt 710-04860C

HEX FLANGE BOLT 1/4-20 x 1.5

$3.99

$

Usually ships in 3-6 days

0

4

Troy-Bilt 712-04063

FLANGE LOCK NUT 5/16-18

$3.99

$

In Stock, Qty 20+

0

5

Troy-Bilt 712-04064

FLANGE LOCK NUT

$3.99

$

In Stock, Qty 20+

0

6

Troy-Bilt 720-04122

WING KNOB 5/16-18

$6.99

$

In Stock, Qty 5

0

7

Troy-Bilt 725-0157

7" CABLE TIE

$3.99

$

In Stock, only 2 left!

0

8

Troy-Bilt 731-04426C

UPPER CHUTE (W/LBL MANUAL TILT)

$19.99

$

In Stock, only 4 left!

0

9

Troy-Bilt 731-07708

CHUTE PLUG

$13.99

$

Usually ships in 3-6 days

0

10

Troy-Bilt 931-07753A

LOWER CHUTE 6.5"

$35.99

$

Usually ships in 3-6 days

0

11

Troy-Bilt 736-04446

FLAT WASHER

$4.49

$

In Stock, only 2 left!

0

12

Troy-Bilt 753-04003

SCREW
(Superseded to 9689A)

$11.99

$

Usually ships in 3-6 days

0
