2079r (41AD279A034) - Ryobi String Trimmer Boom And Trimmer Parts Parts Diagram

String Trimmer

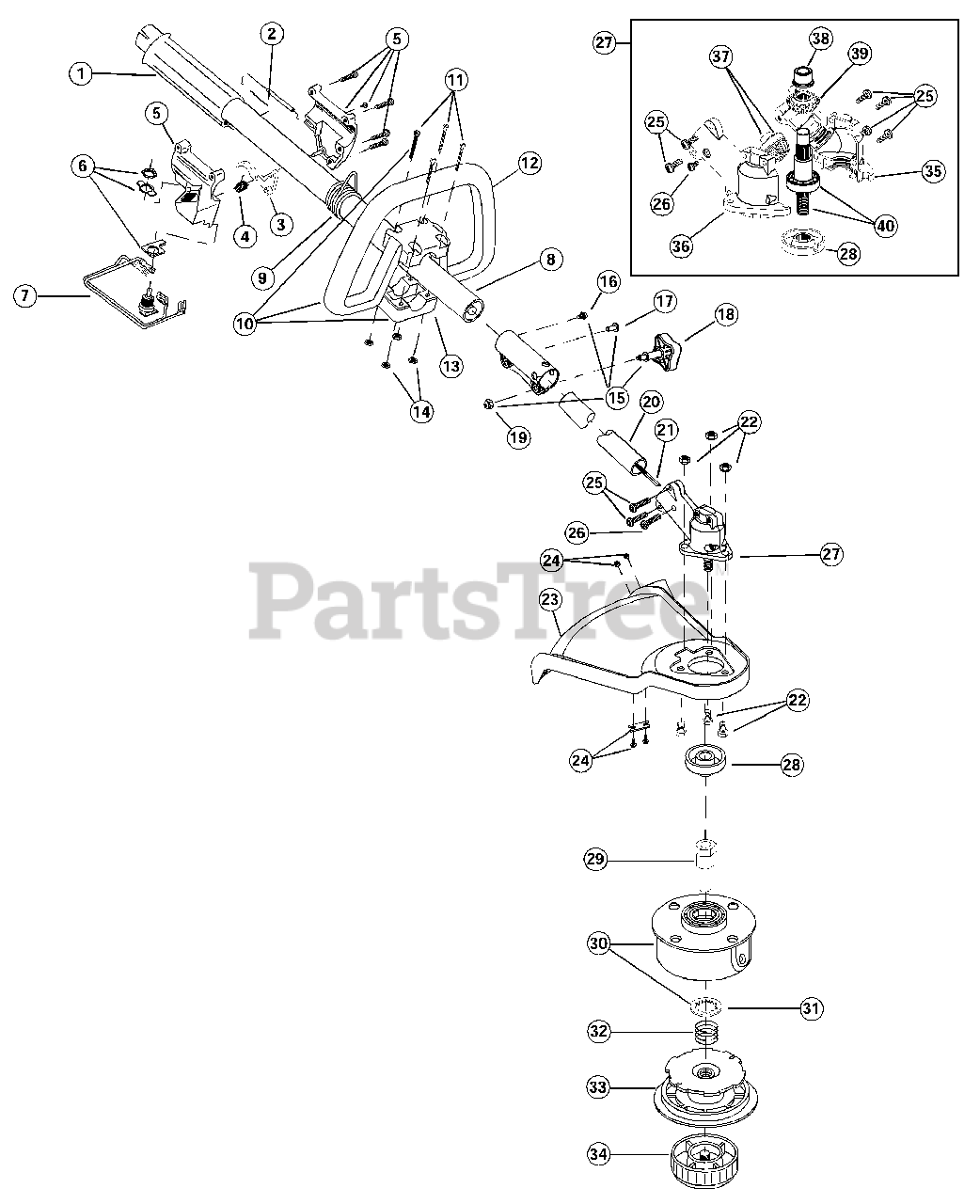

Boom And Trimmer Parts Parts Diagram

  • Title

1

MTD 791-180866

Grip

$

$

Not available

2

MTD 791-181688

Throttle Cable Assembly
(Superseded to 753-05088)

$20.99

$

In Stock, only 3 left!

0

3

MTD 791-180975

Throttle Trigger
(Superseded to 791-181807)

$9.99

$

In Stock, Qty 7

0

4

MTD 791-610314

Throttle Trigger Spring

$9.99

$

Usually ships in 3-6 days

0

5

MTD 791-181689

Throttle Trigger Assembly

Note: (includes 3 & 4)

$

$

Not available

6

MTD 791-180252

Switch Assembly

$

$

Not available

7

MTD 791-181690

Wire Lead Assembly

$

$

Not available

8

MTD 791-181969

Upper Drive Shaft Housing Assembly
(Superseded to 753-04344)

$85.99

$

In Stock, only 3 left!

0

9

MTD 791-610327

Shoulder Harness Clamp

$32.99

$

Usually ships in 3-6 days

0

10

MTD 791-180869

D-Handle Assembly

Note: (includes 11-13)

$

$

Not available

11

MTD 791-181070

Screw

$4.99

$

Usually ships in 3-6 days

0

12

MTD 791-182167

Loop Handle

$76.99

$

Usually ships in 3-6 days

0

13

MTD 791-182168

Bottom Clamp

$

$

Not available

14

MTD 791-181810

Nut

$

$

Not available

15

MTD 791-181616

Split Boom Coupler

Note: (includes 16-19)

$

$

Currently unavailable

16

MTD 791-182057

Screw

$4.49

$

In Stock, only 3 left!

0

17

MTD 791-181617

Bolt

$5.49

$

In Stock, Qty 11

0

18

MTD 791-181618

Adjustment Knob
(Superseded to 791-181981)

$

$

Not available

19

MTD 791-181886

Knob Retaining Nut

$3.49

$

In Stock, only 4 left!

0

20

MTD 791-181972

Lower Drive Shaft Housing

$

$

Not available

21

MTD 791-181570

Drive Shaft

$61.99

$

Usually ships in 3-6 days

0

22

MTD 791-182200

Shield Mount Screw Assembly

$6.99

$

In Stock, only 2 left!

0

23

MTD 791-182189

Shield & Blade Assembly

Note: (includes 24)

$65.99

$

Usually ships in 3-6 days

0

24

MTD 791-682061

Blade Assembly

$14.99

$

In Stock, only 1 left!

0

25

MTD 791-182195

Gearbox Mounting Hardware

$7.49

$

In Stock, Qty 20+

0

26

MTD 791-145569

Anti-Rotation Screw

$9.99

$

In Stock, Qty 7

0

27

MTD 791-182193

2 piece Gearbox Assembly

Note: (includes 35-40)

$99.99

$

In Stock, only 2 left!

0

28

MTD 791-182196

Blade Driver

$22.99

$

In Stock, only 1 left!

0

29

MTD 791-612483

Spool Shaft

$55.99

$

In Stock, only 1 left!

0

30

MTD 791-683301

Outer Spool & Eyelet Assembly

$48.99

$

In Stock, Qty 6

0

31

MTD 791-612026

Retainer
(Superseded to 1772)

$6.99

$

In Stock, Qty 13

0

32

MTD 791-610636

Spring
(Superseded to 791-610636B)

$10.99

$

In Stock, only 2 left!

0

33

MTD 791-147495

Inner Reel

$26.99

$

In Stock, Qty 7

0

34

MTD 791-180814

Bump Head Knob Assembly
(Superseded to 791-180814B)

$21.99

$

In Stock, Qty 20+

0

35

MTD 791-182191

Left Housing

Note: 2 Piece Gearbox Assembly Part - Item 27

$

$

Not available

36

MTD 791-182192

Right Housing

Note: 2 Piece Gearbox Assembly Part - Item 27

$

$

Not available

37

MTD 791-182194

Pinion Gear Assembly

Note: 2 Piece Gearbox Assembly Part - Item 27

$31.99

$

Usually ships in 3-6 days

0

38

MTD 791-182199

Output Shaft Bushing

Note: 2 Piece Gearbox Assembly Part - Item 27

$

$

Not available

39

MTD 791-182198

Output Shaft Gear

Note: 2 Piece Gearbox Assembly Part - Item 27

$

$

Not available

40

MTD 791-182197

Output Shaft Assembly

Note: (includes 38 & 39); 2 Piece Gearbox Assembly Part - Item 27

$

$

Not available

MTD 791-612454

Replacement Line, 0.095 Diameter

Note: Optional Accessory; Item not shown

$

$

Currently unavailable

MTD 791-147345

Reel and Line Assembly

Note: Optional Accessory; Item not shown

$

$

Currently unavailable

MTD 791-147498

Bump Head Assembly

Note: (includes 29-34); Optional Accessory; Item not shown

$117.99

$

In Stock, only 1 left!

0

MTD 791-147543

Ryobi 2-Cycle Motor Oil

Note: Optional Accessory; Item not shown

$

$

Not available

MTD 791-682075

Shoulder Harness
(Superseded to 791-682075B)

Note: Optional Accessory; Item not shown

$38.99

$

Usually ships in 3-6 days

0

MTD 791-300026

Brush Cutter Accessory Kit

Note: Optional Accessory; Item not shown

$

$

Currently unavailable
