20797 - Toro 53cm Super Recycler Walk-Behind Mower (SN: 313000001 - 313999999) (2013) ELECTRICAL ASSEMBLY Parts Diagram

53cm Super Recycler Walk-Behind Mower

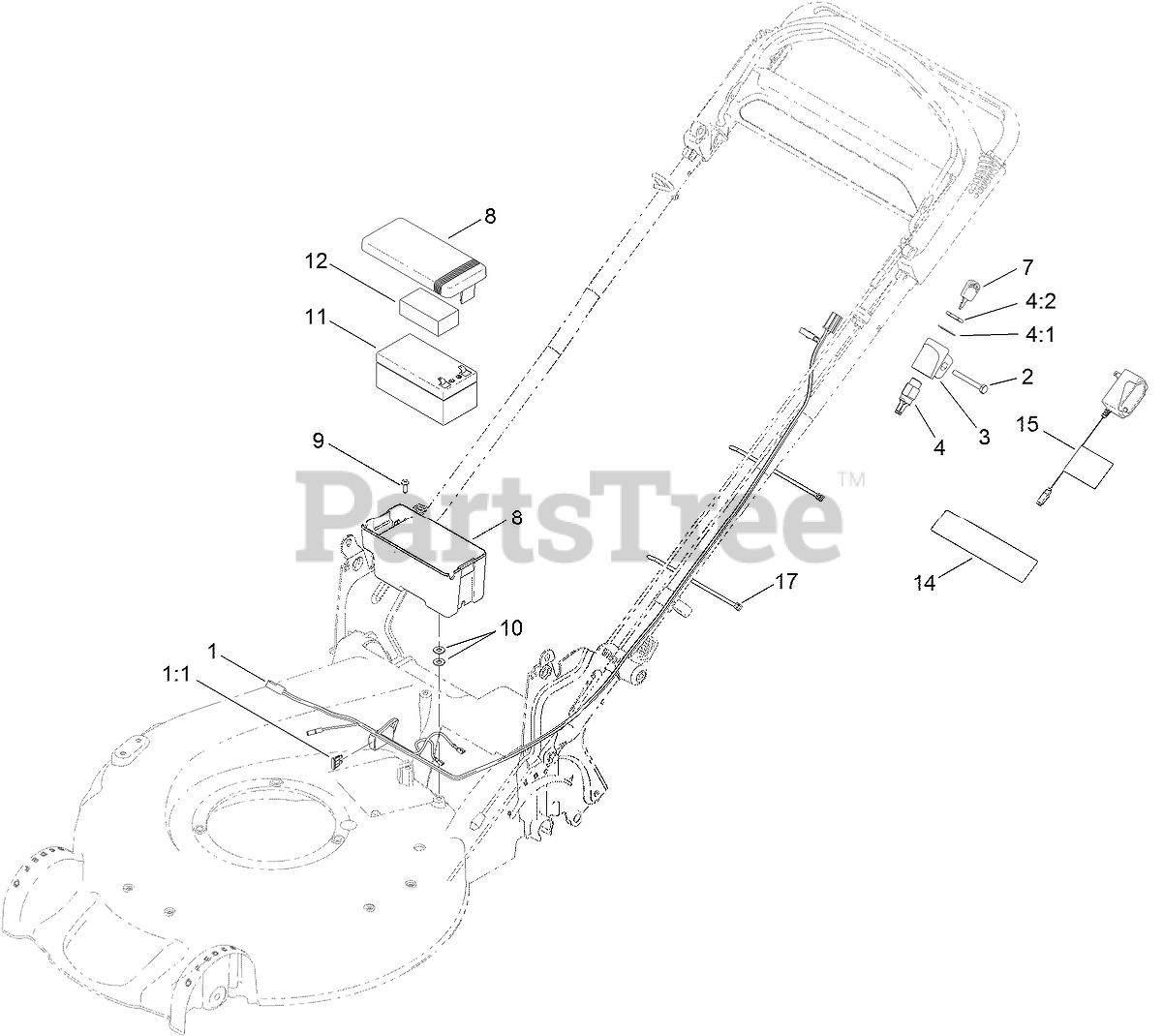

ELECTRICAL ASSEMBLY Parts Diagram

  • Title

1

Toro 114-2625

HARNESS-WIRE

$113.99

$

Usually ships in 3-6 days

0

1:1

Toro 99-6124

FUSE-40 AMP

$4.99

$

In Stock, Qty 8

0

2

Toro 321-50

SCREW-HH

$1.99

$

In Stock, Qty 9

0

3

Toro 108-9760

MOUNT-SWITCH

$5.99

$

In Stock, only 1 left!

0

4

Toro 46-5780

STARTER SWITCH ASM

$29.99

$

In Stock, only 1 left!

0

4:1

Toro 3254-5

WASHER-TOOTH, INTERNAL

$1.49

$

In Stock, only 3 left!

0

4:2

Toro 218-461

NUT-HH

$3.99

$

In Stock, Qty 10

0

7

Toro 700918

KEY

$6.49

$

In Stock, Qty 11

0

8

Toro 108-4844

BATTERY BOX ASM

$23.99

$

Usually ships in 3-6 days

0

9

Toro 32144-32

SCREW

$2.49

$

Usually ships in 3-6 days

0

10

Toro 3256-22

WASHER-FLAT

$0.99

$

In Stock, Qty 20+

0

11

Toro 106-8397

BATTERY-WET

$79.99

$

In Stock, only 1 left!

0

12

Toro 107-3774

FOAM-BATTERY, TOP

$4.99

$

In Stock, Qty 9

0

14

Toro 104-7953

DECAL-WARNING

$8.99

$

Usually ships in 3-6 days

0

15

Toro 120-3947

CHARGER-CE
(Superseded to 137-9153)

$51.99

$

Usually ships in 3-6 days

0

17

Toro 614249

TIE-CABLE

$1.49

$

In Stock, Qty 6

0
