20797 - Toro 53cm Super Recycler Walk-Behind Mower (SN: 311000001 - 311999999) (2011) BATTERY AND HARNESS ASSEMBLY Parts Diagram

53cm Super Recycler Walk-Behind Mower

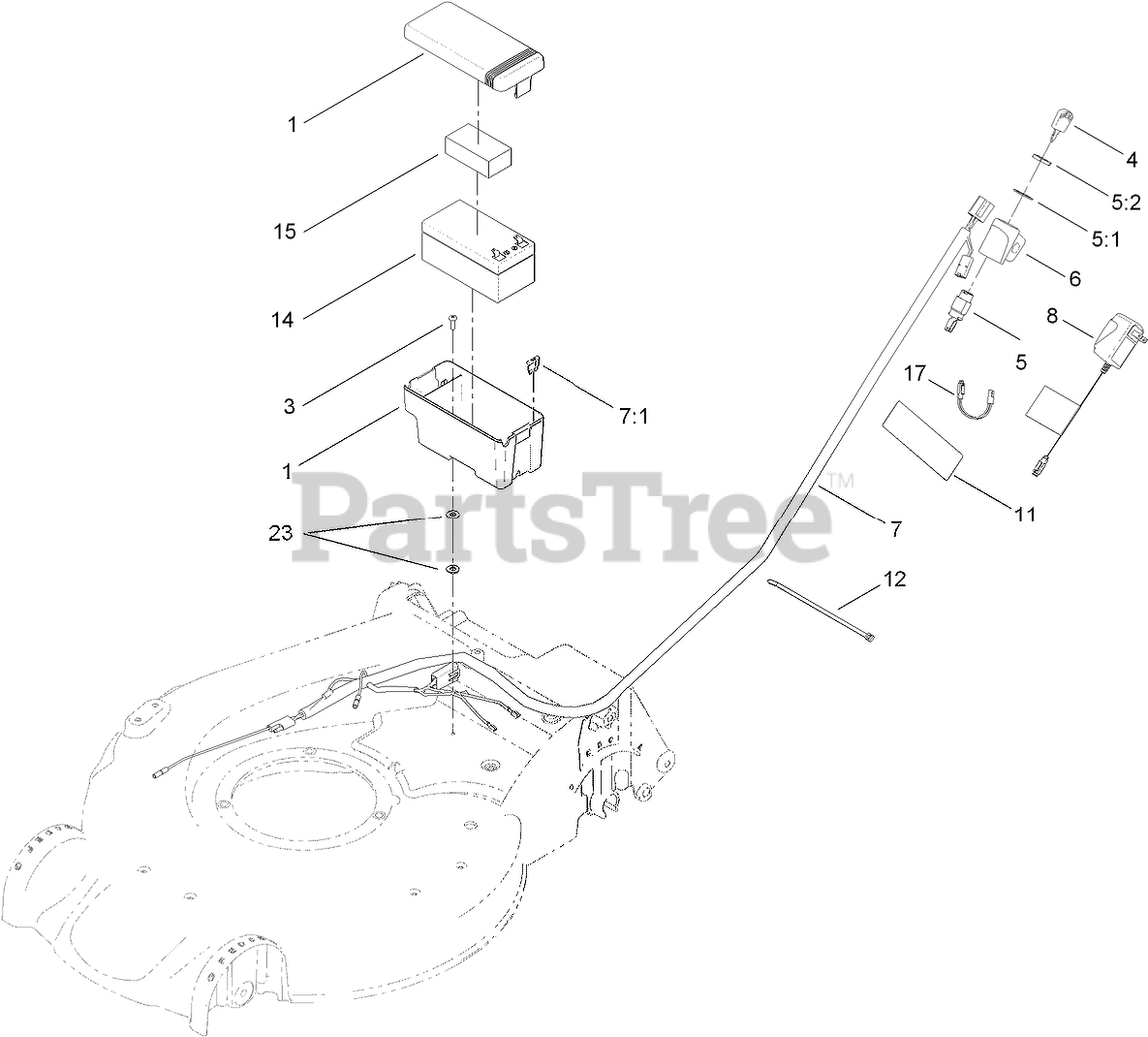

BATTERY AND HARNESS ASSEMBLY Parts Diagram

  • Title

1

Toro 108-4844

BATTERY BOX ASM

$23.99

$

Usually ships in 3-6 days

0

3

Toro 32144-32

SCREW

$2.99

$

Usually ships in 3-6 days

0

4

Toro 700918

KEY

$6.49

$

In Stock, Qty 10

0

5

Toro 46-5780

STARTER SWITCH ASM

$29.99

$

In Stock, Qty 7

0

5:1

Toro 3254-5

WASHER-TOOTH, INTERNAL

$1.49

$

In Stock, Qty 20+

0

5:2

Toro 218-461

NUT-HH

$3.99

$

In Stock, Qty 9

0

6

Toro 108-9760

MOUNT-SWITCH

$5.99

$

In Stock, Qty 11

0

7

Toro 114-2625

HARNESS-WIRE

$117.99

$

Usually ships in 3-6 days

0

7:1

Toro 99-6124

FUSE-40 AMP

$5.49

$

In Stock, Qty 8

0

8

Toro 98-2391

CHARGER-EUROPEAN, 12V DC

$

$

Not available

11

Toro 104-7953

DECAL-WARNING

$9.99

$

Usually ships in 3-6 days

0

12

Toro 614249

TIE-CABLE

$1.49

$

In Stock, only 2 left!

0

14

Toro 106-8397

BATTERY-WET

$79.99

$

In Stock, Qty 5

0

15

Toro 107-3774

FOAM-BATTERY, TOP

$4.99

$

In Stock, Qty 9

0

17

Toro 107-3749

ADAPTER-CHARGER

$27.99

$

Usually ships in 3-6 days

0

23

Toro 3256-22

WASHER-FLAT

$0.99

$

In Stock, Qty 20+

0
