20796 - Toro 53cm Super Recycler Walk-Behind Mower (SN: 310000001 - 310999999) (2010) ENGINE AND BLADE ASSEMBLY Parts Diagram

53cm Super Recycler Walk-Behind Mower

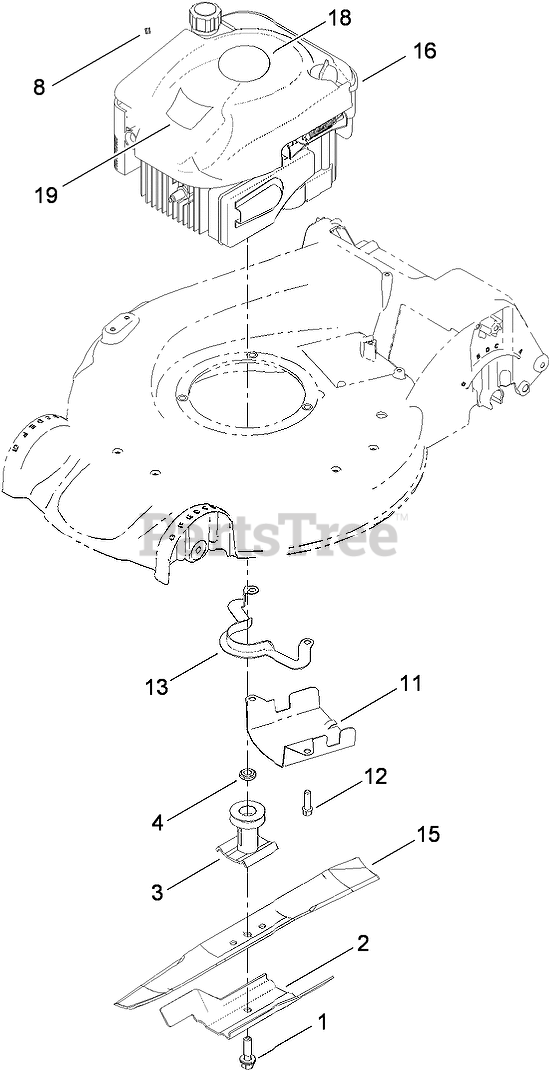

ENGINE AND BLADE ASSEMBLY Parts Diagram

  • Title

1

Toro 105-8579

BOLT-BLADE
(Superseded to 125-2466)

$3.49

$

In Stock, Qty 20+

0

2

Toro 105-6848-03

Accelerator-Blade

$18.99

$

In Stock, only 1 left!

0

3

Toro 106-3987

DRIVER-BLADE

$31.99

$

In Stock, only 2 left!

0

4

Toro 106-3999

Spacer-Driver

$3.49

$

In Stock, only 4 left!

0

8

Toro 2210-316

STOP-ROPE

$7.99

$

Usually ships in 3-6 days

0

11

Toro 107-7489-03

SHIELD-GRASS

$17.99

$

In Stock, only 1 left!

0

12

Toro 95-1727

SCREW-TAPTITE

$2.99

$

In Stock, Qty 20+

0

13

Toro 108-8110-03

GUIDE-BELT

$15.99

$

In Stock, only 1 left!

0

15

Toro 108-3762-03

BLADE-RECYCLING
(Superseded to 108-3762-S)

$29.99

$

In Stock, Qty 20+

0

16

ENGINE-Briggs & Stratton, 12Q507-0174-B1

Note: Obtain parts from www.briggsandstratton.com

$

$

Not available

16

ENGINE-Briggs & Stratton, 12Q507-0174-B1

Note: Not serviced separately

$

$

Not available

18

Toro 114-5363

DECAL-ENGINE

$

$

Not available

19

Toro 110-7493

DECAL-RECOIL

$

$

Not available
