20796 - Toro 53cm Super Recycler Walk-Behind Mower (SN: 270000001 - 270999999) (2007) ELECTRIC STARTER ASSEMBLY BRIGGS AND STRATTON 122607-0208-B1 Parts Diagram

53cm Super Recycler Walk-Behind Mower

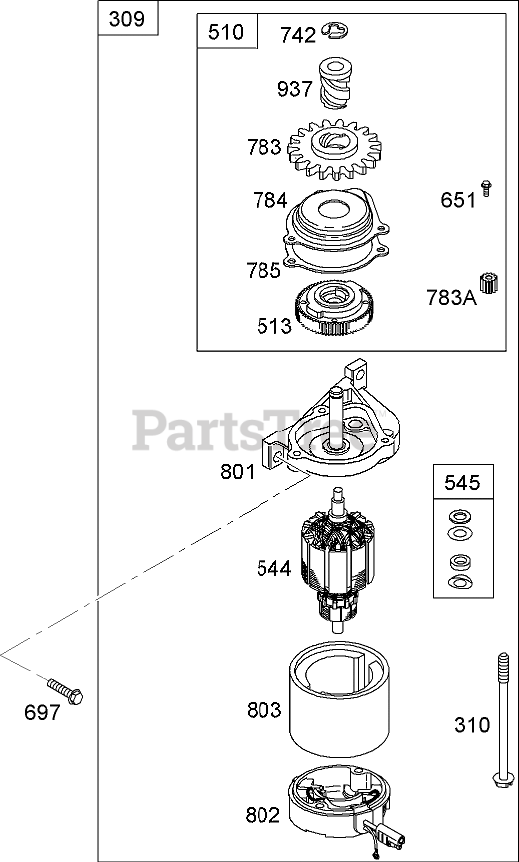

ELECTRIC STARTER ASSEMBLY BRIGGS AND STRATTON 122607-0208-B1 Parts Diagram

  • Title
309

Briggs & Stratton 695550

Motor-Starter
(Superseded to 799045)

Note: Obtain parts from www.briggsandstratton.com

$198.99

$

Usually ships in 2-12 days

0

310

Briggs & Stratton 692327

Bolt (Starter Motor)

Note: Obtain parts from www.briggsandstratton.com

$3.99

$

Usually ships in 2-12 days

0

510

Briggs & Stratton 494147

Drive-Starter

Note: Obtain parts from www.briggsandstratton.com

$33.99

$

Usually ships in 2-12 days

0

513

Briggs & Stratton 692358

Clutch-Drive
(Superseded to 795100)

Note: Obtain parts from www.briggsandstratton.com

$79.99

$

Usually ships in 2-12 days

0

544

Briggs & Stratton 690786

Armature-Starter

Note: Obtain parts from www.briggsandstratton.com

$32.99

$

Usually ships in 2-12 days

0

545

Briggs & Stratton 492919

Washer Set

Note: Obtain parts from www.briggsandstratton.com

$2.49

$

Usually ships in 2-12 days

0

651

Briggs & Stratton 691660

Screw (Starter Gear Cover)

Note: Obtain parts from www.briggsandstratton.com

$3.99

$

In Stock, Qty 8

0

697

Briggs & Stratton 691127

Screw (Starter Motor)

Note: Obtain parts from www.briggsandstratton.com

$4.49

$

In Stock, Qty 13

0

742

Briggs & Stratton 93941

Retainer-E Ring

Note: Obtain parts from www.briggsandstratton.com

$6.99

$

In Stock, only 1 left!

0

783

Briggs & Stratton 691918

Gear-Pinion
(Superseded to 795099)

Note: Obtain parts from www.briggsandstratton.com

$21.99

$

Usually ships in 2-12 days

0

783A

Briggs & Stratton 691269

Gear-Pinion
(Superseded to 795096)

Note: Obtain parts from www.briggsandstratton.com

$13.99

$

Usually ships in 2-12 days

0

784

Briggs & Stratton 692341

Cover-Gear, Starter

Note: Obtain parts from www.briggsandstratton.com

$8.99

$

Usually ships in 2-12 days

0

785

Briggs & Stratton 692352

Gasket-Cover, Starter

Note: Obtain parts from www.briggsandstratton.com

$6.49

$

Usually ships in 2-12 days

0

801

Briggs & Stratton 690782

Cap-Drive

Note: Obtain parts from www.briggsandstratton.com

$85.99

$

Usually ships in 2-12 days

0

802

Briggs & Stratton 695267

Cap-End

Note: Obtain parts from www.briggsandstratton.com

$30.99

$

Usually ships in 2-12 days

0

803

Briggs & Stratton 695266

Housing-Starter

Note: Obtain parts from www.briggsandstratton.com

$34.99

$

Usually ships in 2-12 days

0

937

Briggs & Stratton 691325

Spline-Starter
(Superseded to 795098)

Note: Obtain parts from www.briggsandstratton.com

$11.99

$

Usually ships in 2-12 days

0
