20796 - Toro 53cm Super Recycler Walk-Behind Mower (SN: 270000001 - 270999999) (2007) CRANKSHAFT ASSEMBLY BRIGGS AND STRATTON 122607-0208-B1 Parts Diagram

53cm Super Recycler Walk-Behind Mower

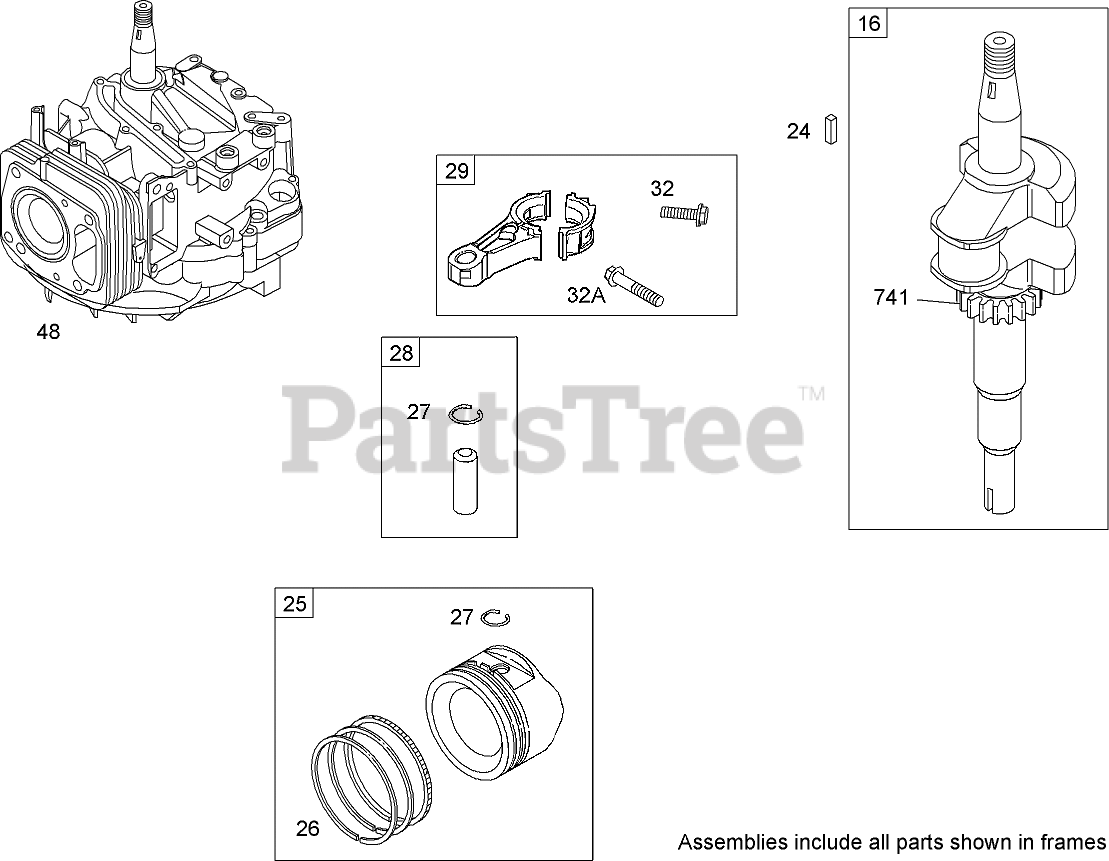

CRANKSHAFT ASSEMBLY BRIGGS AND STRATTON 122607-0208-B1 Parts Diagram

  • Title

16

Briggs & Stratton 695950

Crankshaft

Note: Obtain parts from www.briggsandstratton.com

$192.99

$

Usually ships in 2-12 days

0

24

Briggs & Stratton 222698

Key
(Superseded to 222698S)

Note: Obtain parts from www.briggsandstratton.com

$2.99

$

In Stock, Qty 20+

0

25

Briggs & Stratton 792004

Piston ASM (STD)
(Superseded to 799063)

Note: Obtain parts from www.briggsandstratton.com

$91.99

$

In Stock, only 4 left!

0

25

Briggs & Stratton 791325

Piston ASM (.020 O S)
(Superseded to 799064)

Note: Obtain parts from www.briggsandstratton.com

$120.99

$

Usually ships in 2-12 days

0

26

Briggs & Stratton 791969

Ring Set (STD)

Note: Obtain parts from www.briggsandstratton.com

$38.99

$

In Stock, Qty 12

0

26

Briggs & Stratton 791324

Ring Set (.020 O S)

Note: Obtain parts from www.briggsandstratton.com

$47.99

$

In Stock, only 3 left!

0

27

Briggs & Stratton 691866

Lock-Pin, Piston

Note: Obtain parts from www.briggsandstratton.com

$4.49

$

In Stock, Qty 8

0

28

Briggs & Stratton 499423

Pin-Piston

Note: Obtain parts from www.briggsandstratton.com

$9.49

$

Usually ships in 2-12 days

0

29

Briggs & Stratton 499424

Rod-Connecting
(Superseded to 590406)

Note: Obtain parts from www.briggsandstratton.com

$87.99

$

In Stock, only 1 left!

0

32

Briggs & Stratton 691664

Screw (Connecting Rod)

Note: Obtain parts from www.briggsandstratton.com

$4.49

$

In Stock, only 2 left!

0

32A

Briggs & Stratton 695759

Screw (Connecting Rod)

Note: Obtain parts from www.briggsandstratton.com

$4.99

$

In Stock, only 2 left!

0

48

Short Block

Note: Obtain parts from www.briggsandstratton.com

$

$

Not available

48

Short Block

Note: Not serviced separately

$

$

Not available

741

Briggs & Stratton 790345

Gear-Timing

Note: Obtain parts from www.briggsandstratton.com

$15.99

$

Usually ships in 2-12 days

0
