20796 - Toro 53cm Super Recycler Walk-Behind Mower (SN: 260000001 - 260999999) (2006) TRANSMISSION ASSEMBLY Parts Diagram

53cm Super Recycler Walk-Behind Mower

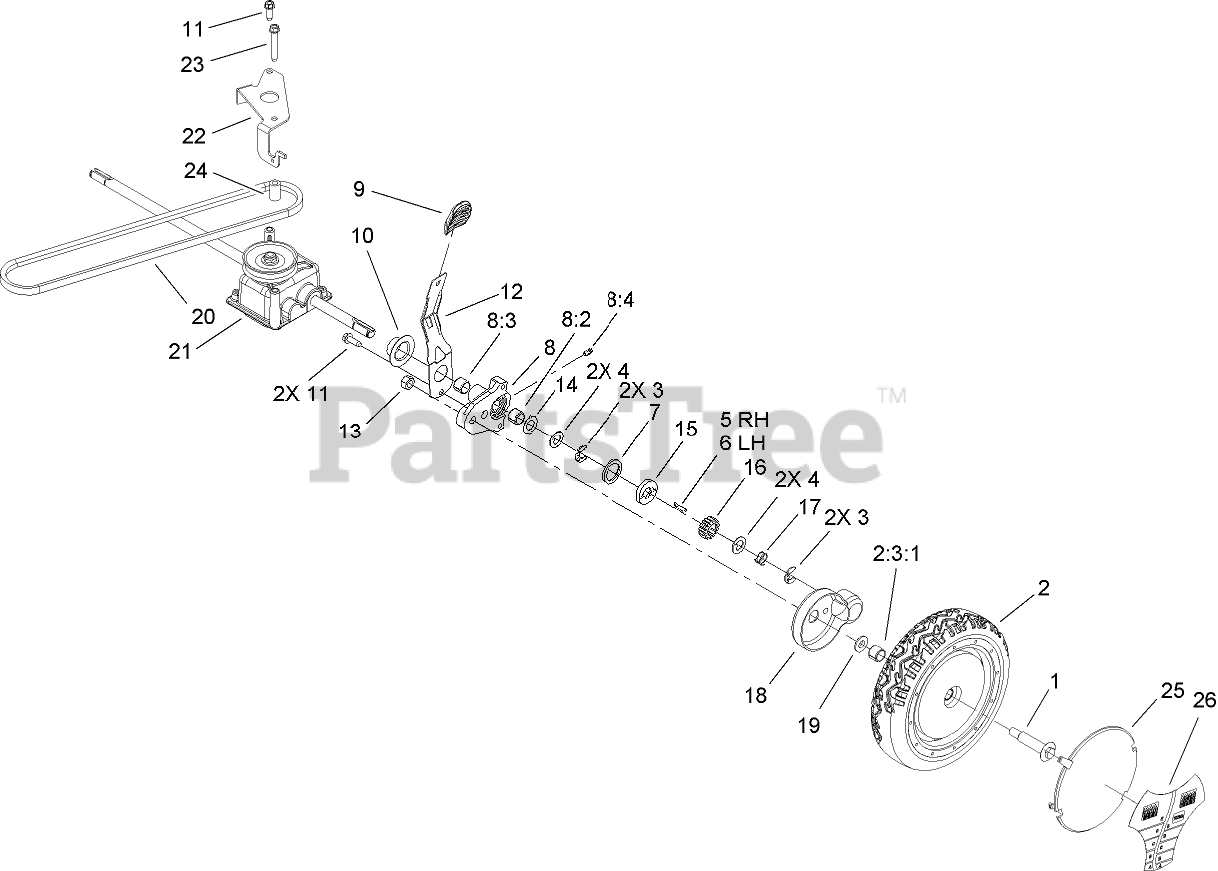

TRANSMISSION ASSEMBLY Parts Diagram

  • Title
1

Toro 92-1057

BOLT-SHOULDER

$3.99

$

In Stock, Qty 20+

0

2

Toro 107-3707

8 INCH WHEEL AND GEAR ASM

$75.99

$

Usually ships in 3-6 days

0

2:3:1

Toro 27-6250

BUSHING

$2.99

$

In Stock, only 4 left!

0

2:3

8 INCH WHEEL ASM

Note: Not illustrated

$

$

Not available

3

Toro 65-2720

RING-CLIP, LOCKING

$1.49

$

In Stock, Qty 20+

0

4

Toro 65-4740

WASHER-THRUST, KEYED

$2.49

$

In Stock, Qty 20+

0

5

Toro 66-6040

KEY-ROCKING, RH
(Superseded to 139-6643)

Note: Not illustrated

$7.49

$

In Stock, Qty 20+

0

6

Toro 66-6050

KEY-ROCKING, LH
(Superseded to 139-6644)

$7.49

$

In Stock, Qty 20+

0

7

Toro 65-4710

RING-FRICTION

$3.49

$

In Stock, Qty 20+

0

8

Toro 100-8774

PIVOT ARM ASM

$38.99

$

In Stock, Qty 11

0

8:2

Toro 47-2900

BUSHING

$6.49

$

In Stock, Qty 20+

0

8:3

Toro 70-9760

BUSHING

$4.99

$

In Stock, Qty 20+

0

8:4

Toro 302-56

FITTING-GREASE

$5.49

$

In Stock, only 1 left!

0

9

Toro 105-3042

Knob-Lever, HOC

$4.49

$

In Stock, Qty 20+

0

10

Toro 42-3520

CAP-END
(Superseded to 138-3235)

$3.99

$

In Stock, Qty 20+

0

11

Toro 49-2040

SCREW-HWHTF

$2.49

$

In Stock, Qty 20+

0

12

Toro 107-7491

ARM-SPRING

$12.99

$

In Stock, Qty 9

0

13

$2.99

$

In Stock, Qty 20+

0

14

Toro 65-4730

WASHER-ARM, PIVOT

$2.49

$

In Stock, Qty 20+

0

15

Toro 65-4760

WASHER-CLUTCH

$1.49

$

In Stock, Qty 20+

0

16

Toro 65-4750

GEAR-PINION

$11.99

$

In Stock, Qty 20+

0

17

Toro 65-4720

SPRING-COMPRESSION

$1.49

$

In Stock, Qty 20+

0

18

Toro 74-1660

COVER-WHEEL

$8.49

$

In Stock, Qty 14

0

19

Toro 74-1671

SPACER-COVER, WHEEL

$1.99

$

In Stock, Qty 20+

0

20

Toro 99-1597

V-BELT

$24.99

$

In Stock, only 4 left!

0

21

Toro 108-8140

GEAR CASE ASM

$336.99

$

Usually ships in 3-6 days

0

22

Toro 107-7483-03

BRACKET-GEARBOX

$6.49

$

Usually ships in 3-6 days

0

23

Toro 92-1616

SCREW-HWHTF

$3.49

$

In Stock, only 1 left!

0

24

Toro 614673

BUSHING-PLATE, ACTUATOR

$12.99

$

In Stock, only 2 left!

0

25

Toro 100-6351

COVER-WHEEL

$21.99

$

Usually ships in 3-6 days

0

26

Toro 100-1519

LABEL-WHEEL, SMART

$7.99

$

Usually ships in 3-6 days

0
