20795 - Toro 53cm Super Recycler Walk-Behind Mower (SN: 280000001 - 280999999) (2008) ENGINE GASKET SET BRIGGS AND STRATTON 126T07-0234-B1 Parts Diagram

53cm Super Recycler Walk-Behind Mower

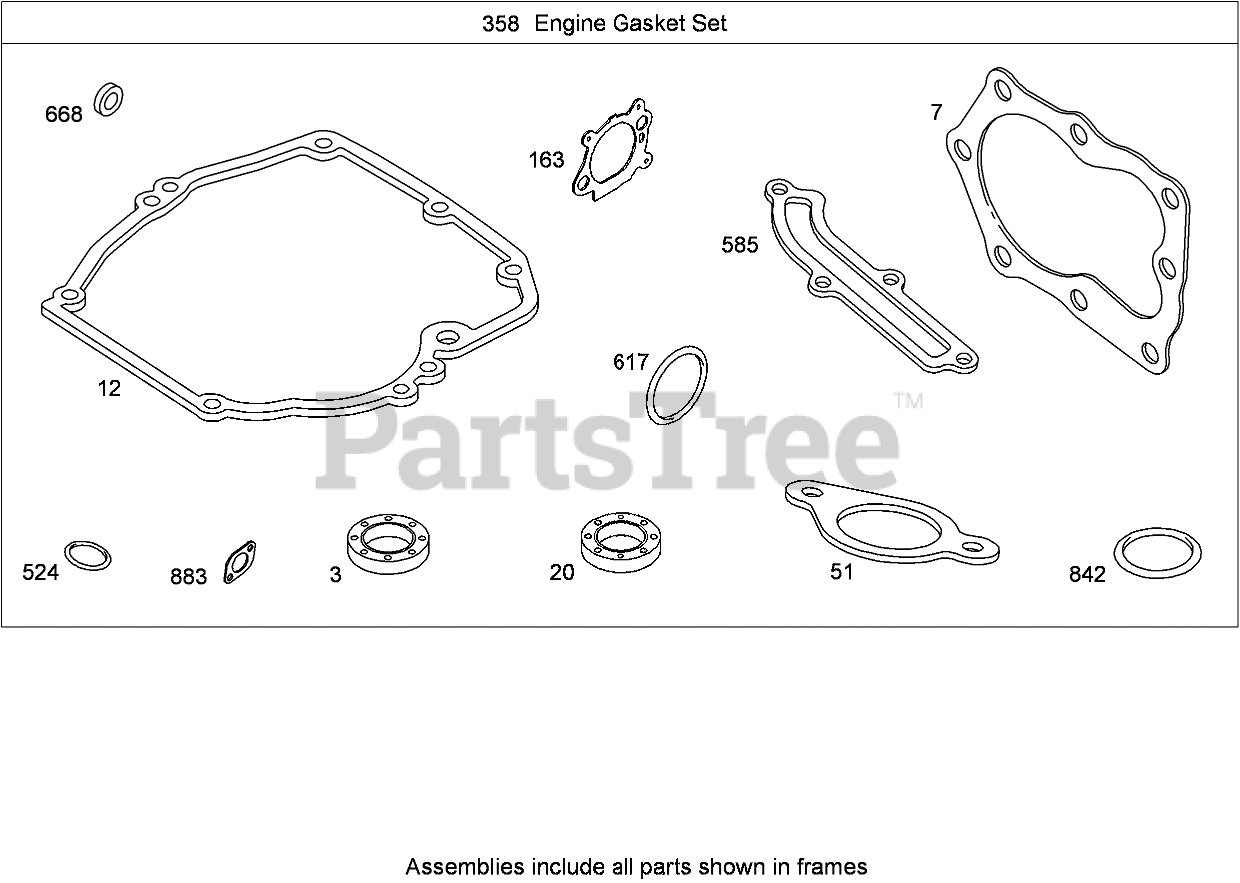

ENGINE GASKET SET BRIGGS AND STRATTON 126T07-0234-B1 Parts Diagram

  • Title

3

Toro 299819s

Seal-Oil (Magneto Side)

Note: Obtain parts from www.briggsandstratton.com

$

$

Currently unavailable

3

Toro 299819s

Seal-Oil (Magneto Side)

Note: Included in Engine Gasket Set (Ref. No. 358)

$

$

Currently unavailable

7

Briggs & Stratton 692249

Gasket-Head, Cylinder

Note: Included in Engine Gasket Set (Ref. No. 358)

$8.49

$

In Stock, Qty 20+

0

7

Briggs & Stratton 692249

Gasket-Head, Cylinder

Note: Obtain parts from www.briggsandstratton.com

$8.49

$

In Stock, Qty 20+

0

12

Briggs & Stratton 692232

Gasket-Crankcase

Note: Obtain parts from www.briggsandstratton.com

$5.99

$

In Stock, Qty 20+

0

12

Briggs & Stratton 692232

Gasket-Crankcase

Note: Included in Engine Gasket Set (Ref. No. 358)

$5.99

$

In Stock, Qty 20+

0

20

Toro 399781s

Seal-Oil (PTO Side)

Note: Obtain parts from www.briggsandstratton.com

$

$

Currently unavailable

20

Toro 399781s

Seal-Oil (PTO Side)

Note: Included in Engine Gasket Set (Ref. No. 358)

$

$

Currently unavailable

51

Briggs & Stratton 794306

Gasket-Intake

Note: Included in Engine Gasket Set (Ref. No. 358)

$4.49

$

In Stock, only 1 left!

0

51

Briggs & Stratton 794306

Gasket-Intake

Note: Obtain parts from www.briggsandstratton.com

$4.49

$

In Stock, only 1 left!

0

163

Toro 272653s

Gasket-Cleaner, Air

Note: Obtain parts from www.briggsandstratton.com

$

$

Currently unavailable

163

Toro 272653s

Gasket-Cleaner, Air

Note: Included in Carburetor Gasket Set (Ref. No. 977)

$

$

Currently unavailable

163

Toro 272653s

Gasket-Cleaner, Air

Note: Included in Carburetor Overhaul Kit (Ref. No. 121)

$

$

Currently unavailable

163

Toro 272653s

Gasket-Cleaner, Air

Note: Included in Engine Gasket Set (Ref. No. 358)

$

$

Currently unavailable

358

Briggs & Stratton 794307

Engine Gasket Set
(Superseded to 590508)

Note: Obtain parts from www.briggsandstratton.com

$37.99

$

In Stock, only 2 left!

0

524

Briggs & Stratton 692296

Seal-O Ring (Dipstick Tube)

Note: Obtain parts from www.briggsandstratton.com

$4.99

$

In Stock, only 4 left!

0

524

Briggs & Stratton 692296

Seal-O Ring (Dipstick Tube)

Note: Included in Engine Gasket Set (Ref. No. 358)

$4.99

$

In Stock, only 4 left!

0

585

Briggs & Stratton 691879

Gasket-Passage, Breather

Note: Included in Engine Gasket Set (Ref. No. 358)

$6.99

$

In Stock, only 1 left!

0

585

Briggs & Stratton 691879

Gasket-Passage, Breather

Note: Obtain parts from www.briggsandstratton.com

$6.99

$

In Stock, only 1 left!

0

617

Toro 270344s

Seal-O Ring (Intake Manifold)

Note: Included in Carburetor Gasket Set (Ref. No. 977)

$

$

Currently unavailable

617

Toro 270344s

Seal-O Ring (Intake Manifold)

Note: Obtain parts from www.briggsandstratton.com

$

$

Currently unavailable

617

Toro 270344s

Seal-O Ring (Intake Manifold)

Note: Included in Carburetor Overhaul Kit (Ref. No. 121)

$

$

Currently unavailable

617

Toro 270344s

Seal-O Ring (Intake Manifold)

Note: Included in Engine Gasket Set (Ref. No. 358)

$

$

Currently unavailable

668

Briggs & Stratton 493823

Spacer

Note: Included in Engine Gasket Set (Ref. No. 358)

$6.49

$

In Stock, only 1 left!

0

668

Briggs & Stratton 493823

Spacer

Note: Obtain parts from www.briggsandstratton.com

$6.49

$

In Stock, only 1 left!

0

842

Briggs & Stratton 691031

Seal-O Ring (Dipstick)

Note: Obtain parts from www.briggsandstratton.com

$5.49

$

In Stock, Qty 20+

0

842

Briggs & Stratton 691031

Seal-O Ring (Dipstick)

Note: Included in Engine Gasket Set (Ref. No. 358)

$5.49

$

In Stock, Qty 20+

0

883

Briggs & Stratton 691881

Gasket-Exhaust

Note: Included in Engine Gasket Set (Ref. No. 358)

$8.99

$

Usually ships in 2-12 days

0

883

Briggs & Stratton 691881

Gasket-Exhaust

Note: Obtain parts from www.briggsandstratton.com

$8.99

$

Usually ships in 2-12 days

0
