20793 - Toro 53cm Super Recycler Walk-Behind Mower (SN: 310000001 - 310999999) (2010) ENGINE AND BLADE ASSEMBLY Parts Diagram

53cm Super Recycler Walk-Behind Mower

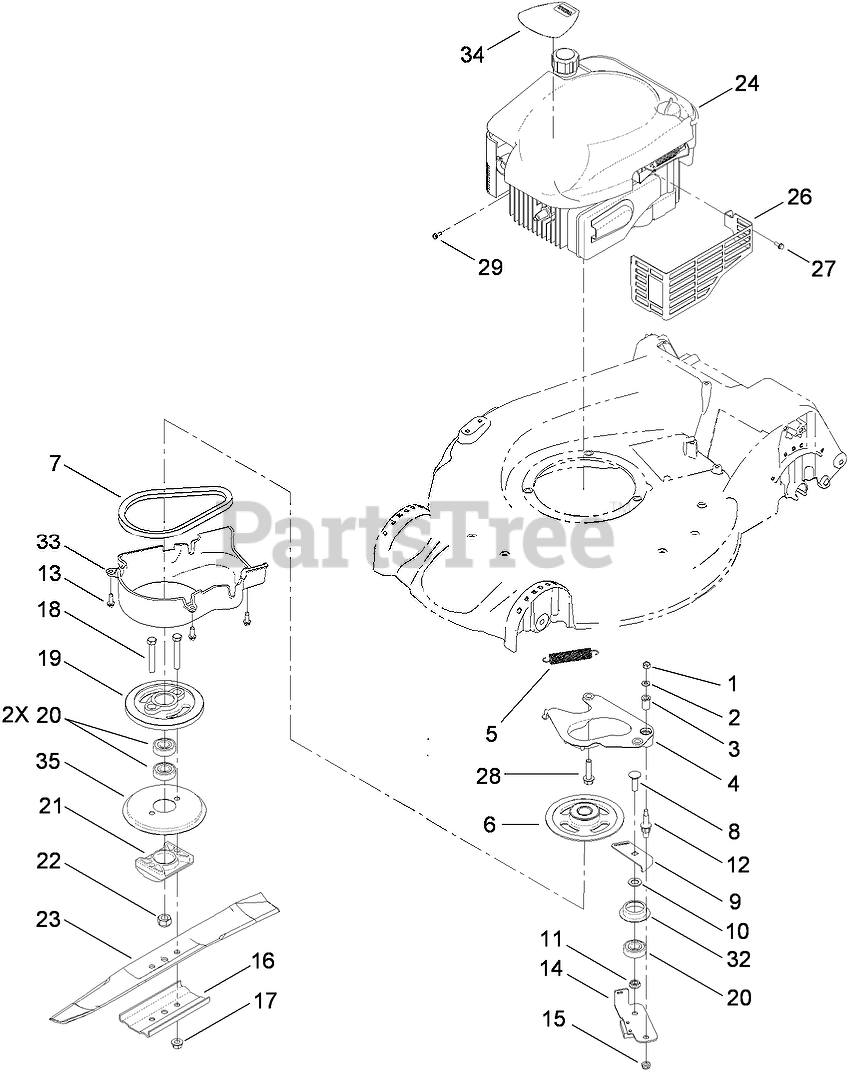

ENGINE AND BLADE ASSEMBLY Parts Diagram

  • Title
1

Toro 3296-42

NUT-LOCK, NI

$0.99

$

In Stock, Qty 9

0

2

Toro 3256-16

WASHER-FLAT

$0.99

$

In Stock, Qty 18

0

3

Toro 107-0797

BUSHING

$6.49

$

In Stock, Qty 8

0

4

Toro 107-0761

PLATE-ANCHOR

$31.99

$

Usually ships in 3-6 days

0

5

Toro 108-3792

SPRING-TENSION, BRAKE

$11.99

$

In Stock, Qty 11

0

6

Toro 117-5970

PULLEY

$41.99

$

In Stock, only 1 left!

0

7

Toro 110-1790

BELT
(Superseded to 110-1790-SL)

$35.99

$

Usually ships in 3-6 days

0

8

Toro 3231-25

BOLT-CARR
(Superseded to 119-4162)

$1.99

$

In Stock, Qty 14

0

9

Toro 107-7471

PLATE-GUIDE
(Superseded to 138-3222)

$3.99

$

In Stock, Qty 20+

0

10

Toro 605256

WASHER-PLAIN

$2.99

$

In Stock, Qty 20+

0

11

Toro 107-0758

SPACER-BEARING

$3.49

$

In Stock, Qty 20+

0

12

Toro 107-0759

BOLT-SHOULDER

$10.99

$

In Stock, Qty 20+

0

13

Toro 49-2040

SCREW-HWHTF

$2.49

$

In Stock, Qty 20+

0

14

Toro 107-7477

BRAKE ARM ASM
(Superseded to 125-1063)

$23.99

$

In Stock, Qty 9

0

15

$2.99

$

In Stock, Qty 6

0

16

Toro 108-3766-03

SUPPORT-BLADE

$10.99

$

In Stock, Qty 9

0

17

Toro 54-9190

NUT-LOCK
(Superseded to 127-6852)

$2.99

$

In Stock, Qty 20+

0

18

Toro 3211-42

SCREW-HH

$5.49

$

In Stock, Qty 16

0

19

Toro 107-0754

DRUM
(Superseded to 126-8108)

$55.99

$

In Stock, only 1 left!

0

20

Toro 100-1048

BEARING-BALL
(Superseded to 38-7820)

$13.99

$

In Stock, Qty 17

0

21

Toro 107-7487

SUPPORT-BLADE

$22.99

$

In Stock, only 1 left!

0

22

Toro 108-9342

NUT-HEX

$5.49

$

In Stock, only 2 left!

0

23

Toro 108-3762-03

BLADE-RECYCLING
(Superseded to 108-3762-S)

$29.99

$

In Stock, Qty 20+

0

24

ENGINE-B&S, 126T02-0261-B1

Note: Not serviced separately

$

$

Not available

24

ENGINE-B&S, 126T02-0261-B1

Note: Obtain parts from www.briggsandstratton.com

$

$

Not available

26

Toro 104-7577-03

SHIELD-MUFFLER

$26.99

$

Usually ships in 3-6 days

0

27

Toro 32144-1

SCREW-TAPTITE

$3.49

$

In Stock, Qty 20+

0

28

Toro 32144-102

SCREW-HWH

$3.49

$

Usually ships in 3-6 days

0

29

Toro 32144-112

SCREW-HWH

$1.49

$

In Stock, Qty 20+

0

32

Toro 108-3790

RETAINER-BELT
(Superseded to 138-3217)

$3.49

$

In Stock, Qty 11

0

33

$21.99

$

Usually ships in 3-6 days

0

34

Toro 115-4654

DECAL-SHROUD

$

$

Not available

35

Toro 108-3787

DISC
(Superseded to 138-3225)

$12.99

$

In Stock, only 3 left!

0
