20792 - Toro 53cm Super Recycler Walk-Behind Mower (SN: 315000001 - 315999999) (2015) REAR DOOR AND MULCH PLUG ASSEMBLY Parts Diagram

53cm Super Recycler Walk-Behind Mower

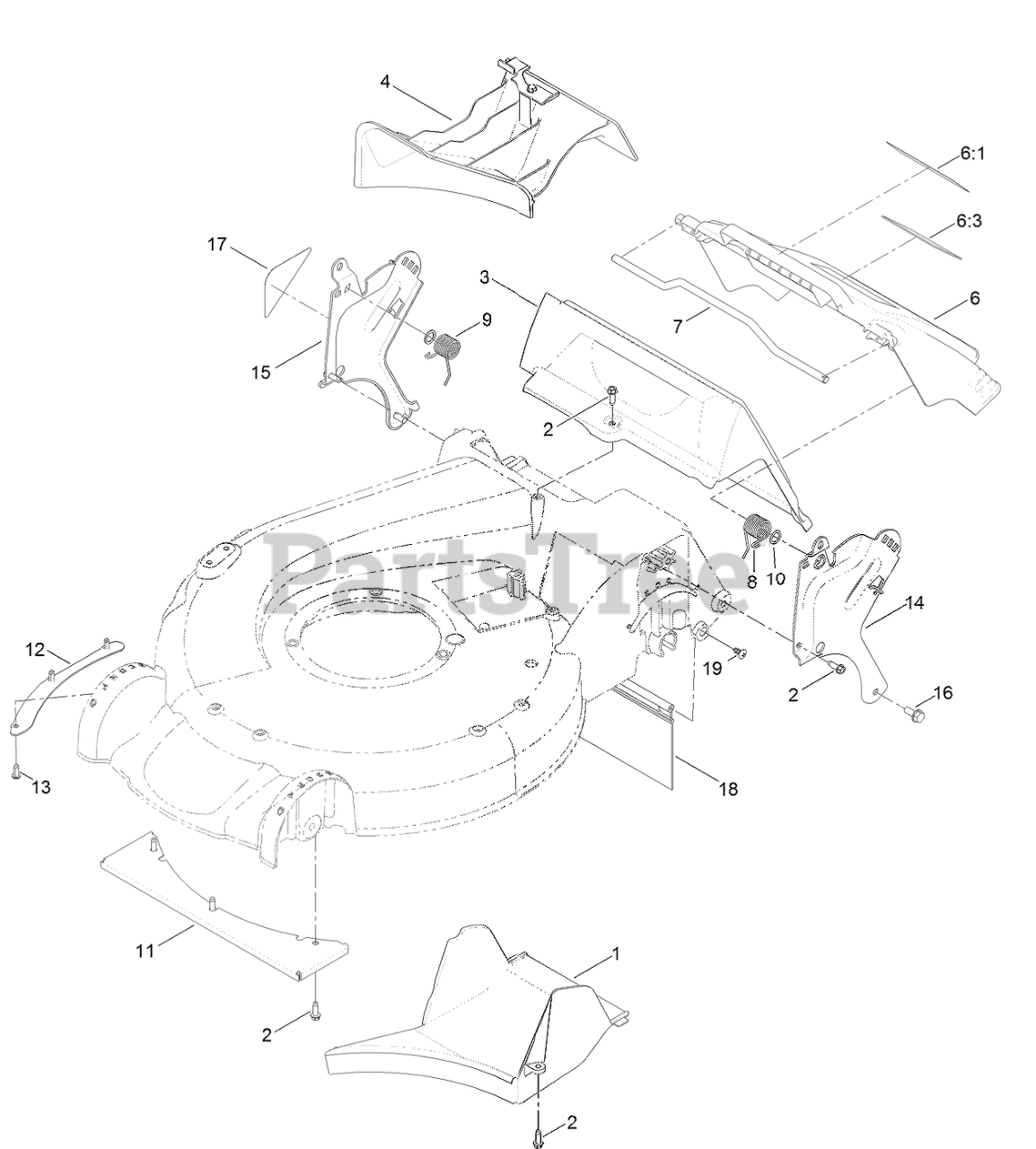

REAR DOOR AND MULCH PLUG ASSEMBLY Parts Diagram

  • Title

1

Toro 107-7495

TUNNEL-DISCHARGE

$26.99

$

In Stock, only 4 left!

0

2

Toro 49-2040

SCREW-HWHTF

$2.49

$

In Stock, Qty 20+

0

3

Toro 114-2668

CHUTE

$38.99

$

In Stock, only 1 left!

0

4

Toro 115-8413

MULCH PLUG ASM

$39.99

$

In Stock, only 1 left!

0

6

Toro 119-3803

REAR DOOR ASM

$47.99

$

Usually ships in 3-6 days

0

6:1

Toro 131-4514

DECAL-WARNING

$2.49

$

In Stock, only 4 left!

0

6:3

Toro 104-7908

DECAL-WARNING

$11.99

$

Usually ships in 3-6 days

0

7

Toro 117-9378

ROD-DEFLECTOR

$36.99

$

Usually ships in 3-6 days

0

8

Toro 115-2859

SPRING-TORSION

$5.49

$

In Stock, only 1 left!

0

9

Toro 114-7924

SPRING-TORSION

$3.49

$

In Stock, Qty 20+

0

10

Toro 94-8196

WASHER-NYLON

$6.99

$

In Stock, only 3 left!

0

11

Toro 108-3797-03

PLATE-COVER, FRONT

$77.99

$

Usually ships in 3-6 days

0

12

Toro 105-1316-03

SHEET-LIP

$8.99

$

Usually ships in 3-6 days

0

13

Toro 63-8590

SCREW

$1.49

$

In Stock, only 4 left!

0

14

Toro 114-2671-03

BRACKET-HANDLE, LH

$27.99

$

Usually ships in 3-6 days

0

15

Toro 114-2672-03

BRACKET-HANDLE, RH

$27.99

$

Usually ships in 3-6 days

0

16

Toro 32144-11

SCREW-HWHTF

$7.99

$

In Stock, Qty 6

0

17

Toro 115-2884

DECAL-INSTRUCTION

$5.99

$

Usually ships in 3-6 days

0

18

Toro 120-7011

SHIELD-TRAILING

$36.99

$

In Stock, only 1 left!

0

19

Toro 117-1092

SCREW-PTH

$1.49

$

In Stock, Qty 20+

0
