20792 - Toro 53cm Super Recycler Walk-Behind Mower (SN: 315000001 - 315999999) (2015) HOUSING ASSEMBLY Parts Diagram

53cm Super Recycler Walk-Behind Mower

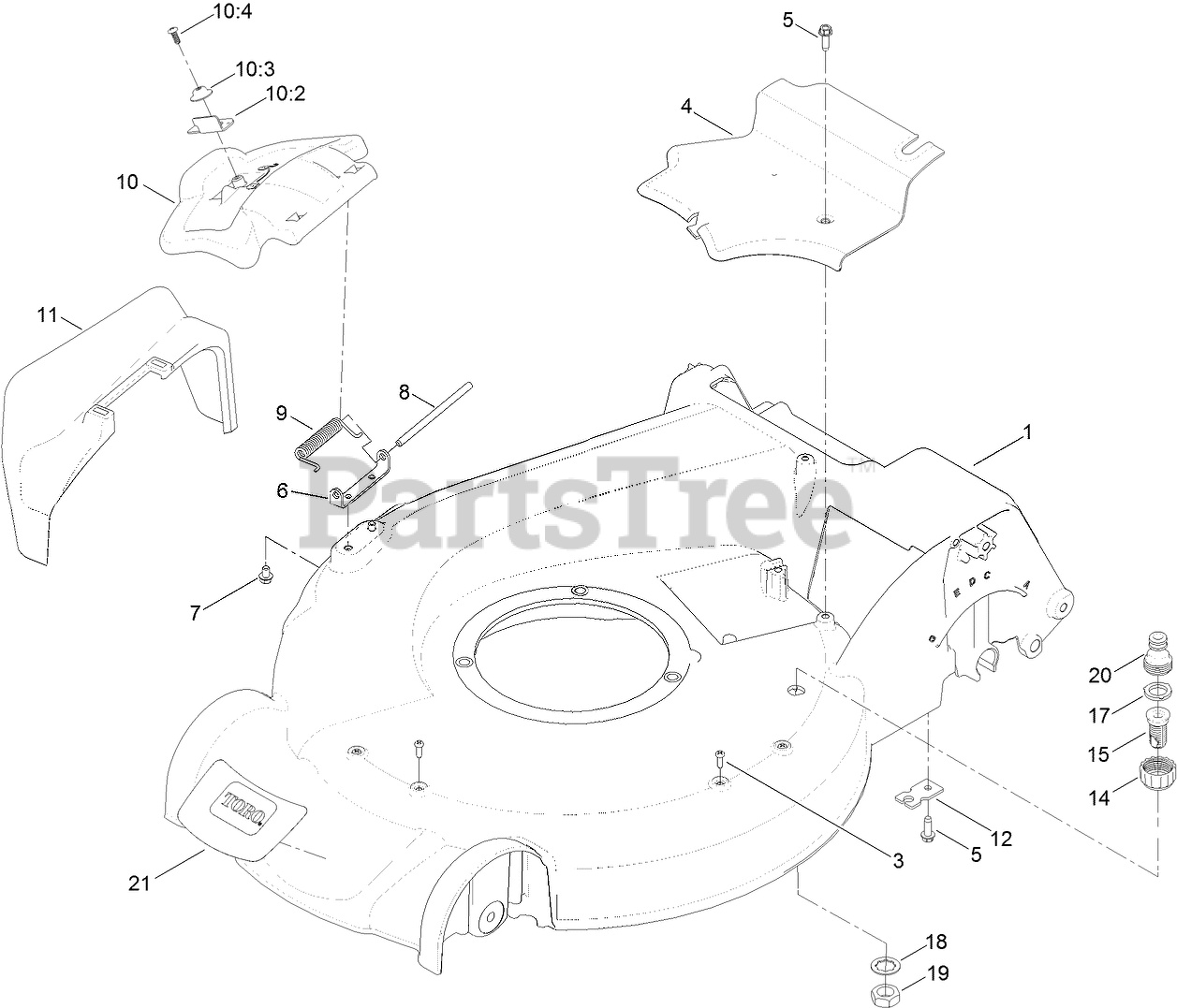

HOUSING ASSEMBLY Parts Diagram

  • Title

1

Toro 115-2855

HOUSING ASM

$347.99

$

Usually ships in 3-6 days

0

3

Toro 32144-111

SCREW-PPH

$1.49

$

In Stock, Qty 20+

0

4

Toro 107-7494

COVER-BELT

$21.99

$

In Stock, only 1 left!

0

5

Toro 49-2040

SCREW-HWHTF

$2.49

$

In Stock, Qty 20+

0

6

Toro 112-6416

BRACKET-COVER

$2.99

$

In Stock, Qty 20+

0

7

Toro 99-8445

SCREW-HWH
(Superseded to 137-4795)

$1.49

$

In Stock, Qty 20+

0

8

Toro 99-5291

ROD-COVER
(Superseded to 136-8672)

$3.49

$

In Stock, Qty 20+

0

9

Toro 99-5293

SPRING-TORSION

$10.99

$

In Stock, Qty 20+

0

10

Toro 107-3717

DISCHARGE DOOR ASM

$25.99

$

In Stock, only 2 left!

0

10:2

Toro 107-0795

LATCH-DOOR

$1.49

$

In Stock, only 3 left!

0

10:3

Toro 107-7456

CAP-DOOR
(Superseded to 138-3242)

$3.99

$

In Stock, only 4 left!

0

10:4

Toro 107-7461

SCREW-PLASTITE

$1.49

$

In Stock, Qty 8

0

11

Toro 108-3753

CHUTE-DISCHARGE, SIDE

$25.99

$

In Stock, only 3 left!

0

12

Toro 107-7497

BRACKET-CABLE, TRACTION
(Superseded to 138-3224)

$2.99

$

In Stock, Qty 5

0

14

Toro 112-6401

COUPLING-HOSE, WASHOUT PORT

$2.99

$

In Stock, Qty 11

0

15

Toro 112-6400

PORT-WASHOUT

$4.99

$

In Stock, Qty 11

0

17

Toro 112-6438

WASHER-SEAL, WASHOUT PORT

$1.99

$

In Stock, Qty 13

0

18

Toro 3254-5

WASHER-TOOTH, INTERNAL

$1.49

$

In Stock, Qty 20+

0

19

Toro 3218-6

NUT-JAM

$6.99

$

In Stock, Qty 20+

0

20

Toro 112-6437

ADAPTER-CONNECT, QUICK

$12.99

$

Usually ships in 3-6 days

0

21

Toro 120-5232

DECAL-DECK

$

$

Not available
