20792 - Toro 53cm Super Recycler Walk-Behind Mower (SN: 270000001 - 270999999) (2007) HANDLE ASSEMBLY Parts Diagram

53cm Super Recycler Walk-Behind Mower

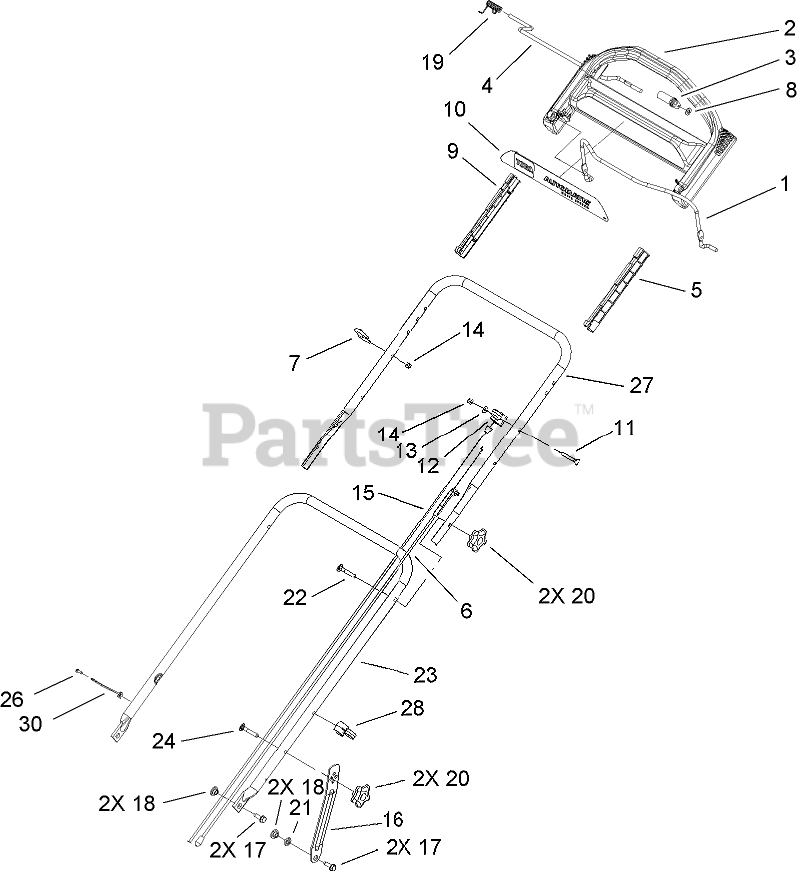

HANDLE ASSEMBLY Parts Diagram

  • Title
1

Toro 104-8679-03

Bail-Brake
(Superseded to 131-0880-03)

$25.99

$

In Stock, only 1 left!

0

2

Toro 104-8678

HANDLE-CONTROL

$83.99

$

In Stock, only 1 left!

0

3

Toro 99-1589

LEVER-TRACTION

$7.99

$

In Stock, Qty 15

0

4

Toro 99-1588

BAR-CONTROL, TRACTION
(Superseded to 136-7150)

$17.99

$

In Stock, only 1 left!

0

5

Toro 105-6842

GUIDE-LH

$8.99

$

In Stock, only 3 left!

0

6

Toro 108-8157

CABLE-BRAKE

$42.99

$

In Stock, only 1 left!

0

7

Toro 86-9671

GUIDE-ROPE

$4.49

$

In Stock, Qty 5

0

8

Toro 3256-23

WASHER-PLAIN

$2.49

$

In Stock, Qty 20+

0

9

Toro 105-6841

GUIDE-RH

$8.99

$

In Stock, only 2 left!

0

10

Toro 110-7056

DECAL-HANDLE

$25.99

$

Usually ships in 3-6 days

0

11

Toro 95-4453

SCREW

$3.49

$

In Stock, only 1 left!

0

12

Toro 99-5239

ANCHOR-CABLE
(Superseded to 136-5864)

$2.99

$

In Stock, Qty 7

0

13

Toro 3256-1

WASHER-FLAT

$0.99

$

In Stock, Qty 20+

0

14

Toro 3296-73

NUT-LOCK, NI

$5.49

$

In Stock, only 3 left!

0

15

Toro 108-8158

CABLE-TRACTION

$44.99

$

In Stock, only 2 left!

0

16

Toro 108-8145-03

SUPPORT-HANDLE

$

$

Not available

17

Toro 701243

SCREW-HWHTF

$2.99

$

In Stock, Qty 20+

0

18

Toro 27-6600

SPACER-COUPLING
(Superseded to 125-9249)

$2.99

$

In Stock, only 3 left!

0

19

Toro 104-8690

Spring-Torsion
(Superseded to 136-7166)

$3.49

$

In Stock, Qty 6

0

20

Toro 108-8162

KNOB-LOCKING
(Superseded to 117-5976)

$2.99

$

In Stock, Qty 15

0

21

Toro 55-9670

WASHER

$2.49

$

Usually ships in 3-6 days

0

22

Toro 92-2260

SCREW-HANDLE

$3.99

$

In Stock, Qty 5

0

23

Toro 107-7476-05

HANDLE-LOWER

$130.99

$

Usually ships in 3-6 days

0

24

Toro 92-2260

SCREW-HANDLE

$3.99

$

In Stock, Qty 5

0

26

Toro 32144-53

SCREW-SHWH, THREAD FORMING

$3.99

$

In Stock, Qty 10

0

27

Toro 107-3783-05

HANDLE-UPPER

$

$

Not available

28

Toro 106-6805

Guide-Cable
(Superseded to 114-7988)

$2.99

$

In Stock, Qty 7

0

30

Toro 108-9452

HOOK-ROPE, DISPLACEMENT

$6.49

$

Usually ships in 3-6 days

0
