20791 - Toro 53cm Super Recycler Walk-Behind Mower (SN: 220000001 - 220999999) (2002) REAR BAG DISCHARGE CHUTE ASSEMBLY Parts Diagram

53cm Super Recycler Walk-Behind Mower

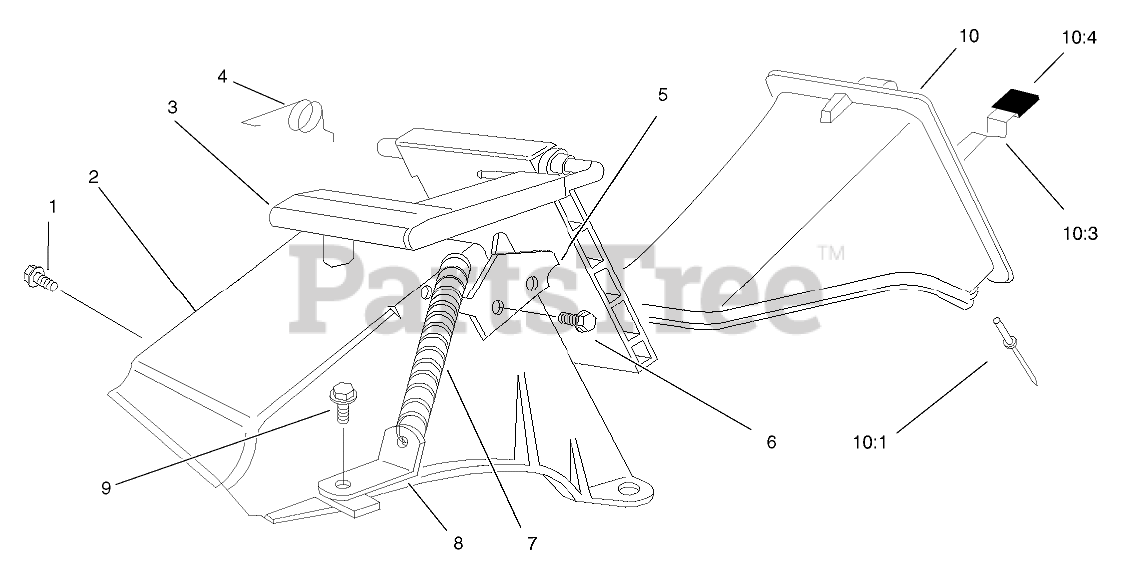

REAR BAG DISCHARGE CHUTE ASSEMBLY Parts Diagram

  • Title
1

Toro 46-6810

SCREW AND WASHER ASM

$5.49

$

Usually ships in 3-6 days

0

2

Toro 82-9151

TUNNEL-DISCHARGE

$192.99

$

Usually ships in 3-6 days

0

3

Toro 93-7351

DISCHARGE DOOR ASM

$116.99

$

In Stock, only 1 left!

0

4

Toro 76-4660

SPRING-DOOR

$11.99

$

In Stock, Qty 5

0

5

Toro 93-3154

LATCH-PLATE

$5.99

$

In Stock, Qty 5

0

6

Toro 46-8090

SCREW-PLASTITE

$

$

Not available

7

Toro 80-3770

RETAINER-DOOR

$6.99

$

In Stock, only 2 left!

0

8

Toro 71-9350

BRACKET-SPRING

$14.99

$

Usually ships in 3-6 days

0

9

Toro 46-6811

SCREW-HWH

$3.49

$

In Stock, only 3 left!

0

10

Toro 77-0502

DISCHARGE PLUG ASM

$

$

Not available

10:1

Toro 3295-35

RIVET-HEAD, FLAT

$2.99

$

Usually ships in 3-6 days

0

10:3

Toro 76-4640

LATCH-PLUG, DISCHARGE

$22.99

$

Usually ships in 3-6 days

0

10:4

Toro 76-4650

GRIP-LATCH

$5.99

$

Usually ships in 3-6 days

0
