20791 - Toro 53cm Super Recycler Walk-Behind Mower (SN: 220000001 - 220999999) (2002) CYLINDER HEAD ASSEMBLY ENGINE GTS 200 (ONLY ON: 20791) Parts Diagram

53cm Super Recycler Walk-Behind Mower

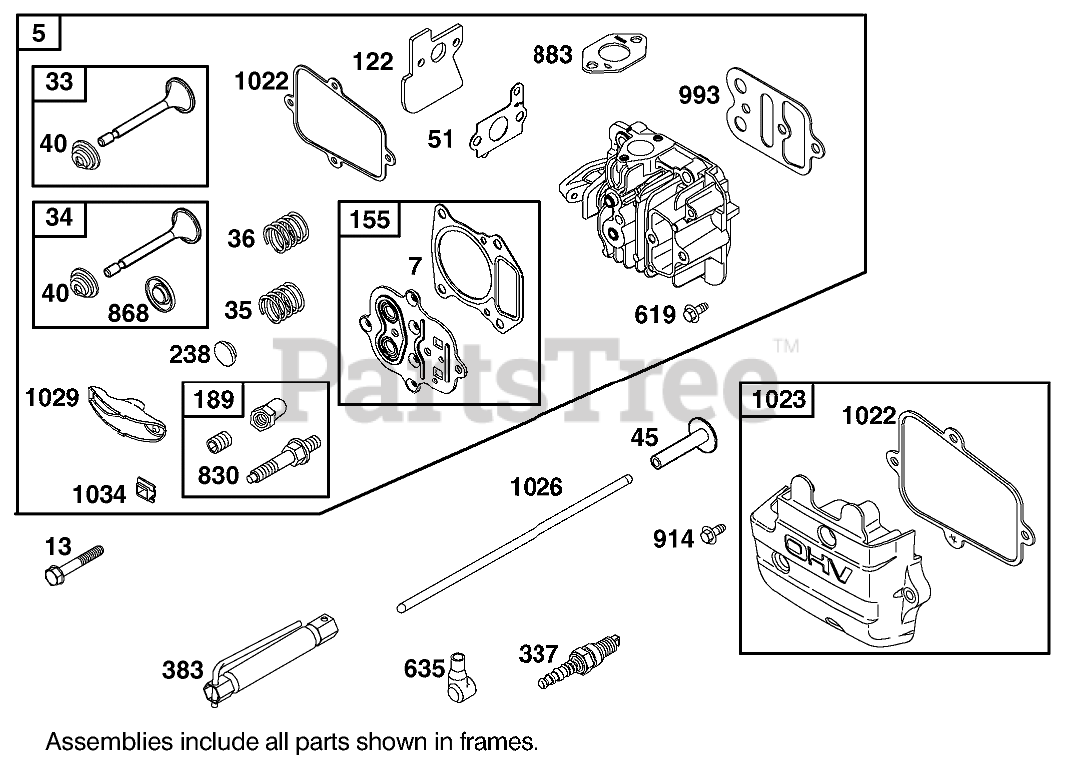

CYLINDER HEAD ASSEMBLY ENGINE GTS 200 (ONLY ON: 20791) Parts Diagram

  • Title

1022

Toro 99-0907

GASKET-COVER, ROCKER

Note: Included in Engine Gasket Set-Ref. 358.

$23.99

$

Usually ships in 3-6 days

0

1022

Toro 99-0907

GASKET-COVER, ROCKER

Note: Included in Carburetor Overhaul Kit-Ref. 121.

$23.99

$

Usually ships in 3-6 days

0

1023

Toro 98-9211

COVER-ROCKER & GASKET

$

$

Not available

1026

Toro 99-0949

ROD-PUSH

$

$

Not available

1029

Toro 99-0950

ARM-ROCKER

$

$

Not available

1034

Toro 99-0951

GUIDE-ROD, PUSH

$

$

Not available

122

Toro 99-0978

SPACER-CARBURETOR

Note: Included in Engine Gasket Set-Ref. 358.

$43.99

$

Usually ships in 3-6 days

0

122

Toro 99-0978

SPACER-CARBURETOR

Note: Included in Carburetor Overhaul Kit-Ref. 121.

$43.99

$

Usually ships in 3-6 days

0

122

Toro 99-0978

SPACER-CARBURETOR

Note: Included in Carburetor Gasket Set-Ref. 977.

$43.99

$

Usually ships in 3-6 days

0

122

Toro 99-0978

SPACER-CARBURETOR

Note: Included in Valve Overhaul Gasket Set-Ref. 1095.

$43.99

$

Usually ships in 3-6 days

0

13

Toro 99-0931

SCREW-HH

$

$

Not available

155

Toro 99-0938

PLATE-HEAD, CYLINDER

$

$

Not available

189

Toro 99-0939

Ball-Rocker Arm
(Superseded to 99-0945)

$

$

Not available

238

Toro 99-0940

CAP-VALVE

$

$

Not available

33

Toro 99-0932

VALVE-EXHAUST

$

$

Not available

337

Toro 77-7330

PLUG-SPARK

$3.49

$

In Stock, Qty 20+

0

34

Toro 99-0933

VALVE-INTAKE

$

$

Not available

35

Toro 99-0934

SPRING-VALVE

$

$

Not available

36

Toro 99-0934

SPRING-VALVE

$

$

Not available

383

Toro 99-0944

Spark Plug Wrench

$

$

Not available

40

Toro 99-0935

RETAINER-SPRING, VALVE

$

$

Not available

45

Toro 99-0936

TAPPET-VALVE

$

$

Not available

5

Toro 99-0929

HEAD-CYLINDER
(Superseded to 117-7559)

$

$

Not available

51

Toro 99-0968

GASKET-INTAKE

Note: Included in Valve Overhaul Gasket Set-Ref. 1095.

$

$

Not available

51

Toro 99-0968

GASKET-INTAKE

Note: Included in Carburetor Gasket Set-Ref. 977.

$

$

Not available

51

Toro 99-0968

GASKET-INTAKE

Note: Included in Carburetor Overhaul Kit-Ref. 121.

$

$

Not available

51

Toro 99-0968

GASKET-INTAKE

Note: Included in Engine Gasket Set-Ref. 358.

$

$

Not available

619

Toro 99-0941

SCREW-HH

$

$

Not available

635

Toro 77-9190

ELBOW-PLUG, SPARK

$15.99

$

Usually ships in 3-6 days

0

7

Toro 99-0930

GASKET-HEAD, CYLINDER

Note: Included in Engine Gasket Set-Ref. 358.

$

$

Not available

7

Toro 99-0930

GASKET-HEAD, CYLINDER

Note: Included in Carburetor Overhaul Kit-Ref. 121.

$

$

Not available

830

Toro 99-0945

STUD-ARM, ROCKER

$

$

Not available

868

Toro 99-0946

SEAL-VALVE

Note: Included in Engine Gasket Set-Ref. 358.

$

$

Not available

868

Toro 99-0946

SEAL-VALVE

Note: Included in Valve Overhaul Gasket Set-Ref. 1095.

$

$

Not available

883

Toro 99-0947

GASKET-EXHAUST

Note: Included in Engine Gasket Set-Ref. 358.

$

$

Not available

883

Toro 99-0947

GASKET-EXHAUST

Note: Included in Valve Overhaul Gasket Set-Ref. 1095.

$

$

Not available

914

Toro 99-0942

SCREW-HEX

$

$

Not available

993

Toro 99-6264

GASKET-PLATE

Note: Included in Engine Gasket Set-Ref. 358.

$27.99

$

Usually ships in 3-6 days

0

993

Toro 99-6264

GASKET-PLATE

Note: Included in Valve Overhaul Gasket Set-Ref. 1095.

$27.99

$

Usually ships in 3-6 days

0
