20791 - Toro 53cm Super Recycler Walk-Behind Mower (SN: 220000001 - 220999999) (2002) CYLINDER ASSEMBLY ENGINE GTS 200 (ONLY ON: 20789) Parts Diagram

53cm Super Recycler Walk-Behind Mower

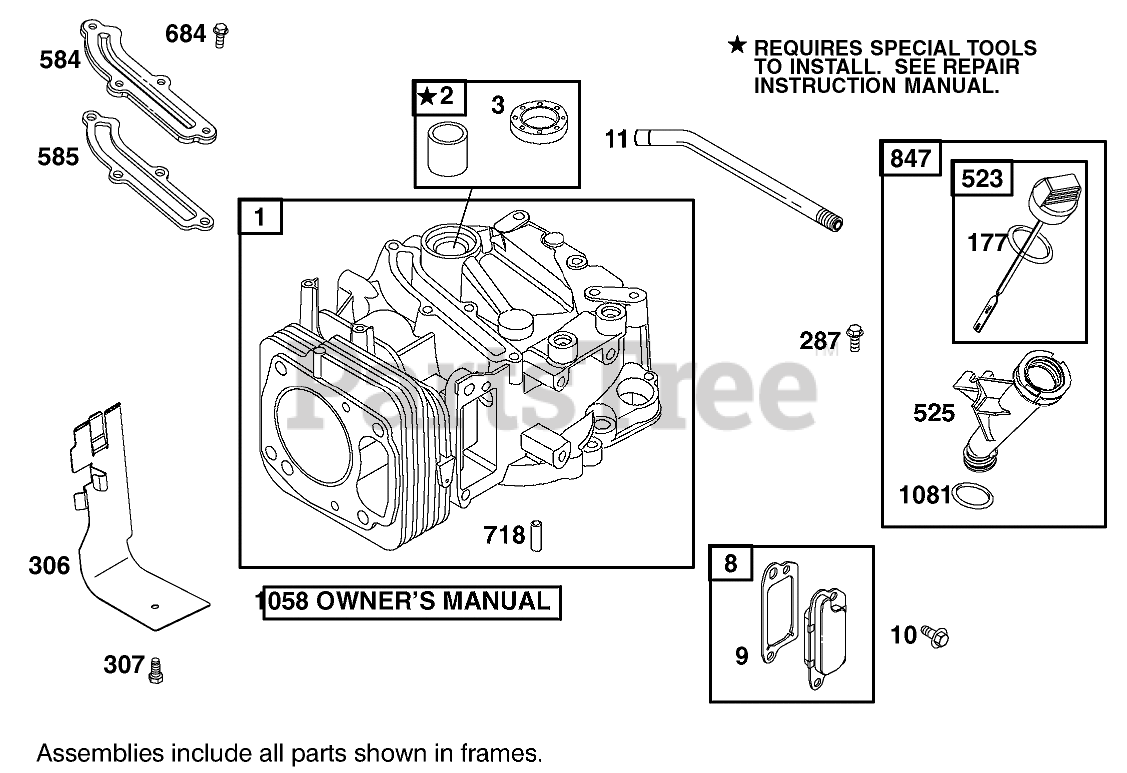

CYLINDER ASSEMBLY ENGINE GTS 200 (ONLY ON: 20789) Parts Diagram

  • Title

Toro 100-8797

SHORT BLOCK
(Superseded to 105-8616)

$814.99

$

Usually ships in 3-6 days

0

1

Toro 99-0900

CYLINDER ASM

$631.99

$

Usually ships in 3-6 days

0

2

Toro 99-0911

BUSHING

$

$

Not available

3

Toro 99-0912

Oil Seal
(Superseded to 77-9060)

Note: Included in Gasket Set-See Ref. 358.

$

$

Not available

8

Toro 77-9260

BREATHER ASM

$

$

Not available

9

Toro 99-0913

GASKET-BREATHER

Note: Included in Gasket Set-See Ref. 358.

$4.49

$

Usually ships in 3-6 days

0

9

Toro 99-0913

GASKET-BREATHER

Note: Included in Valve Overhaul Gasket Set-See Ref. 1003.

$4.49

$

Usually ships in 3-6 days

0

10

Toro 99-0914

SCREW-HH

$

$

Not available

11

Toro 99-0915

TUBE-BREATHER

$

$

Not available

177

Toro 99-0916

O-RING

Note: Included in Gasket Set-See Ref. 358.

$8.99

$

Usually ships in 3-6 days

0

287

Toro 99-0927

SCREW-HH

$8.49

$

Usually ships in 3-6 days

0

306

Toro 99-0919

SHIELD-CYLINDER

$

$

Not available

307

Toro 99-0920

SCREW-HH

$

$

Not available

523

Toro 77-7260

DIPSTICK-OIL

$

$

Not available

525

Toro 99-0906

TUBE-FILTER, OIL

$

$

Not available

584

Toro 99-0922

BAFFLE-CYLINDER

$

$

Not available

585

Toro 99-0923

GASKET-BREATHER

Note: Included in Gasket Set-See Ref. 358.

$13.99

$

Usually ships in 3-6 days

0

684

Toro 99-0920

SCREW-HH

$

$

Not available

718

Toro 99-0928

SLEEVE-DOWEL

$

$

Not available

847

Toro 99-9209

ALTERNATOR

$1037.99

$

Usually ships in 3-6 days

0

1081

Toro 99-0916

O-RING

Note: Included in Gasket Set-See Ref. 358.

$8.99

$

Usually ships in 3-6 days

0
