20791 - Toro 53cm Super Recycler Walk-Behind Mower (SN: 200000001 - 200999999) (2000) MUFFLER AND FUEL TANK ASSEMBLY ENGINE GTS 200 (ONLY ON: 20791) Parts Diagram

53cm Super Recycler Walk-Behind Mower

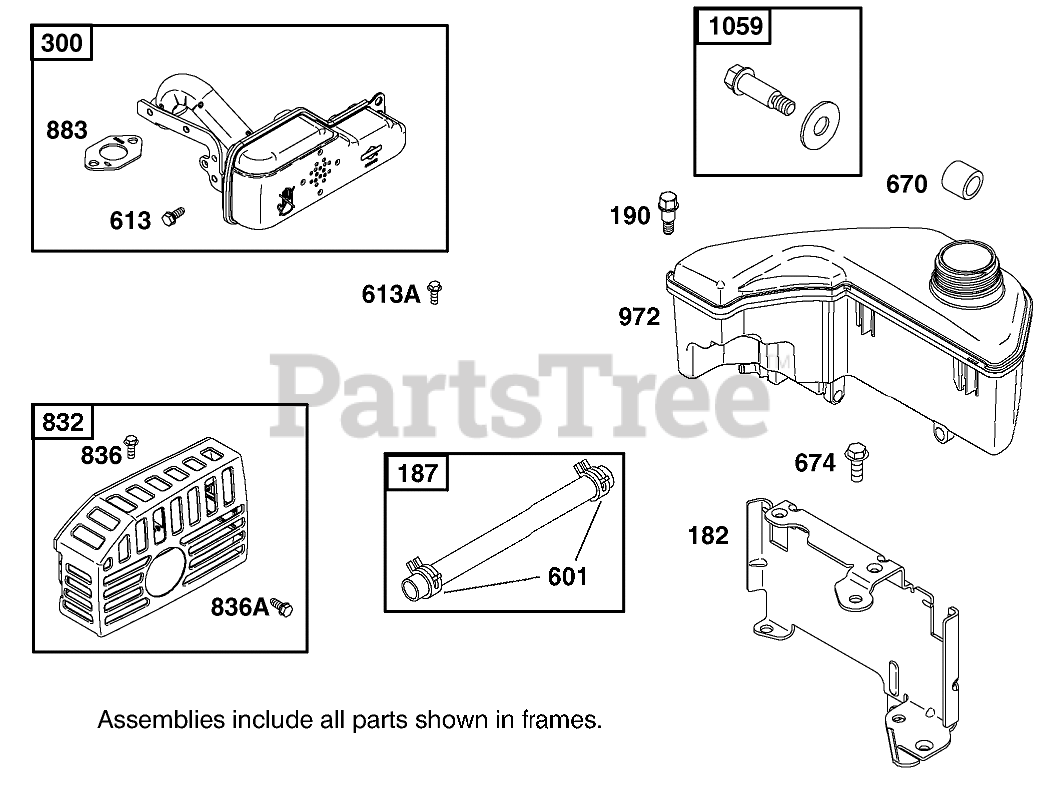

MUFFLER AND FUEL TANK ASSEMBLY ENGINE GTS 200 (ONLY ON: 20791) Parts Diagram

  • Title
182

Toro 98-9205

BRACKET-TANK, FUEL

$

$

Not available

187

Toro 99-0992

LINE-FUEL

$

$

Not available

190

Toro 99-0994

SCREW-HH

$

$

Not available

300

Toro 99-0995

MUFFLER-EXHAUST

$

$

Not available

601

Toro 78-4690

Clamp

$

$

Not available

613

Toro 99-1047

SCREW-HH

$

$

Not available

613A

Toro 99-0941

SCREW-HH

$

$

Not available

670

Toro 99-0997

SPACER-TANK, FUEL

$

$

Not available

674

Toro 98-9202

SCREW-BRACKET, TANK

$

$

Not available

832

Toro 98-9206

GUARD-MUFFLER

$133.99

$

Usually ships in 3-6 days

0

836

Toro 94-1674

SCREW-HH
(Superseded to 99-0999)

$8.49

$

Usually ships in 3-6 days

0

836A

Toro 99-0999

SCREW-HH

$8.49

$

Usually ships in 3-6 days

0

883

å99-0947

GASKET-EXHAUST

$

$

Not available

972

Toro 99-1000

TANK-FUEL

$

$

Not available

1059

Toro 99-0993

SCREW-SHOULDER

$

$

Not available
