20791 - Toro 53cm Super Recycler Walk-Behind Mower (SN: 200000001 - 200999999) (2000) CARBURETOR ASSEMBLY ENGINE GTS 200 (ONLY ON: 20791) Parts Diagram

53cm Super Recycler Walk-Behind Mower

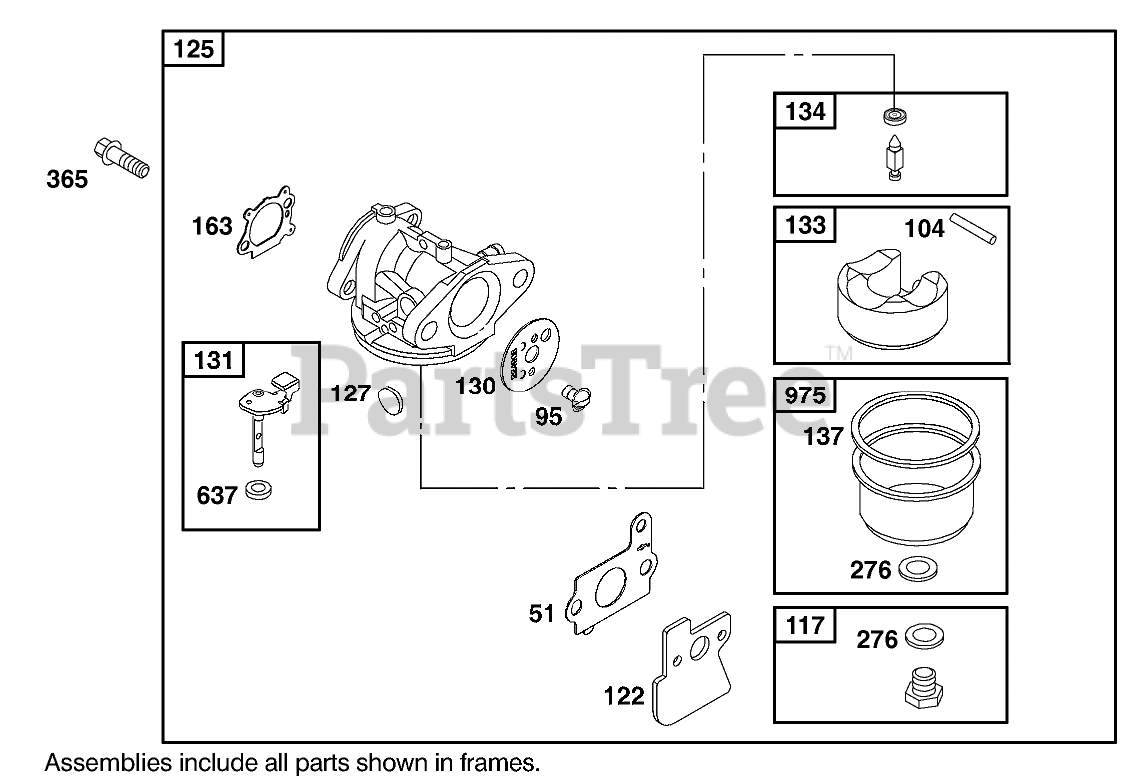

CARBURETOR ASSEMBLY ENGINE GTS 200 (ONLY ON: 20791) Parts Diagram

  • Title

51

Toro 99-0968

GASKET-INTAKE

Note: Included in Gasket Set-See Ref. 358.

$

$

Not available

51

Toro 99-0968

GASKET-INTAKE

Note: Included in Carburetor Gasket Set-See Ref. 977.

$

$

Not available

51

Toro 99-0968

GASKET-INTAKE

Note: Included in Valve Overhaul Gasket Set-See Ref. 1003.

$

$

Not available

51

Toro 99-0968

GASKET-INTAKE

Note: Included in Carburetor Kit-See Ref. 121.

$

$

Not available

95

Toro 99-0969

SCREW-SPH

$8.49

$

Usually ships in 3-6 days

0

104

Toro 99-0970

PIN-HINGE, FLOAT

Note: Included in Carburetor Kit-See Ref. 121.

$

$

Not available

117

Toro 99-0971

JET-MAIN

$

$

Not available

Toro 99-1041

JET-MAIN, HIGH ALTITUDE

$20.99

$

Usually ships in 3-6 days

0

122

Toro 99-0978

SPACER-CARBURETOR

Note: Included in Carburetor Gasket Set-See Ref. 977.

$43.99

$

Usually ships in 3-6 days

0

122

Toro 99-0978

SPACER-CARBURETOR

Note: Included in Gasket Set-See Ref. 358.

$43.99

$

Usually ships in 3-6 days

0

122

Toro 99-0978

SPACER-CARBURETOR

Note: Included in Valve Overhaul Gasket Set-See Ref. 1003.

$43.99

$

Usually ships in 3-6 days

0

122

Toro 99-0978

SPACER-CARBURETOR

Note: Included in Carburetor Kit-See Ref. 121.

$43.99

$

Usually ships in 3-6 days

0

125

Toro 99-0973

CARBURETOR

$

$

Not available

127

Plug-Welch(Sold in KitOnly)

Note: Included in Carburetor Kit-See Ref. 121.

$

$

Not available

130

Toro 99-0974

VALVE-THROTTLE

$11.99

$

Usually ships in 3-6 days

0

131

Toro 99-0975

SHAFT-THROTTLE

$32.99

$

Usually ships in 3-6 days

0

133

Toro 77-8170

FLOAT-CARBURETOR

$32.99

$

In Stock, only 1 left!

0

134

Toro 77-8110

VALVE-FLOAT

Note: Included in Carburetor Kit-See Ref. 121.

$23.99

$

Usually ships in 3-6 days

0

137

Gasket-FloatBowl (Sold in Kit Only)

Note: Included in Carburetor Kit-See Ref. 121.

$

$

Not available

137

Gasket-FloatBowl (Sold in Kit Only)

Note: Included in Carburetor Gasket Set-See Ref. 977.

$

$

Not available

163

Toro 99-0976

GASKET-CLEANER, AIR

Note: Included in Gasket Set-See Ref. 358.

$4.99

$

In Stock, Qty 6

0

163

Toro 99-0976

GASKET-CLEANER, AIR

Note: Included in Carburetor Kit-See Ref. 121.

$4.99

$

In Stock, Qty 6

0

163

Toro 99-0976

GASKET-CLEANER, AIR

Note: Included in Carburetor Gasket Set-See Ref. 977.

$4.99

$

In Stock, Qty 6

0

276

Washer-Bowl(Sold inKit Only)

Note: Included in Carburetor Kit-See Ref. 121.

$

$

Not available

276

Washer-Bowl(Sold inKit Only)

Note: Included in Carburetor Gasket Set-See Ref. 977.

$

$

Not available

365

Toro 100-5038

WASHER-SEALING
(Superseded to 77-8210)

$6.99

$

In Stock, Qty 5

0

975

Toro 99-0977

BOWL-FLOAT

$

$

Not available

637

Toro 100-5037

SEAL-DUST

Note: Included in Carburetor Kit-See Ref. 121.

$

$

Not available

637

Toro 100-5037

SEAL-DUST

Note: Included in Carburetor Gasket Set-See Ref. 977.

$

$

Not available
