20790 - Toro Walk-Behind Mower (SN: 000000001 - 000999999) (1980) GEAR CASE ASSEMBLY Parts Diagram

Walk-Behind Mower

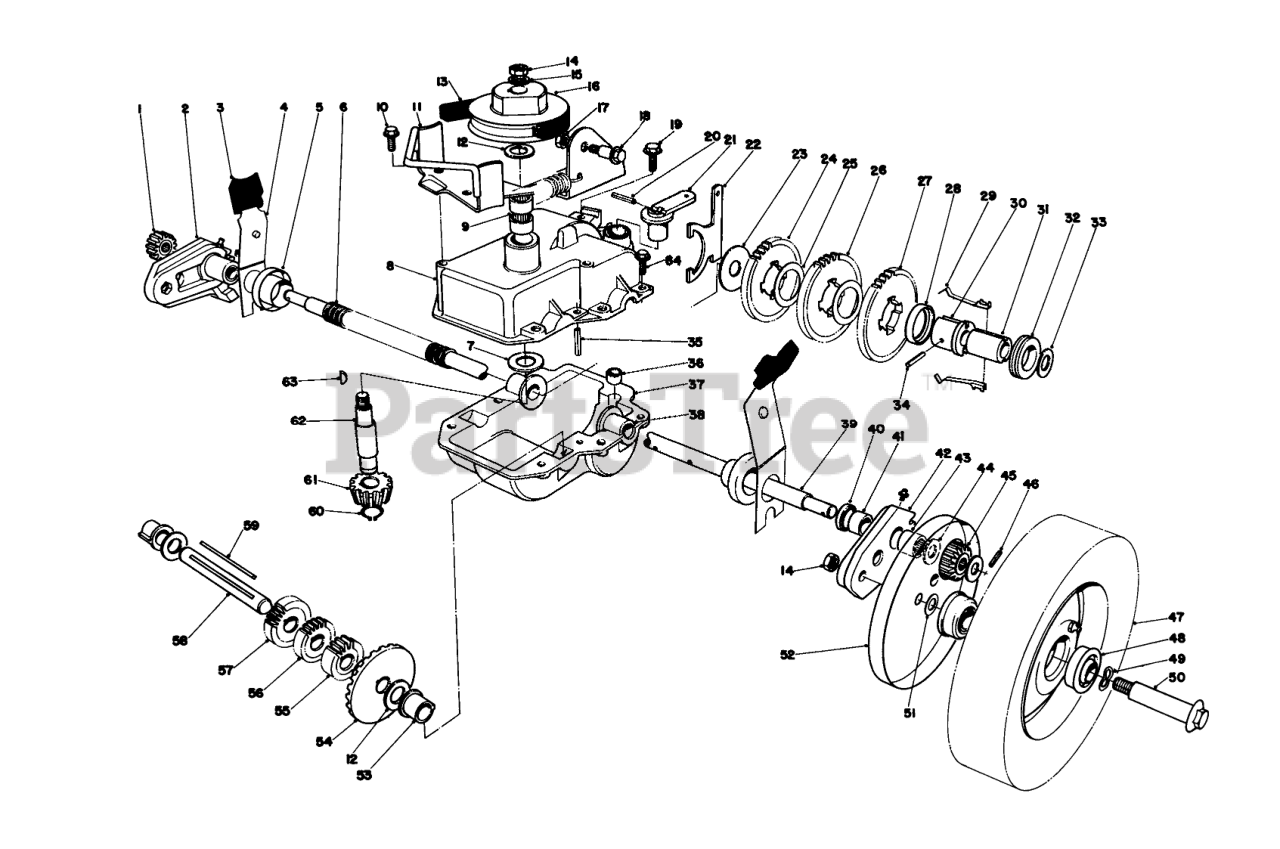

GEAR CASE ASSEMBLY Parts Diagram

  • Title

1

Toro 39-7740

RH CLUTCH & PINION

$177.99

$

Usually ships in 3-6 days

0

2

Toro 29-9590

Pivot Arm R.H. (Incl. Ref. #40, 41 & 43)
(Superseded to 49-7720)

$

$

Not available

3

Toro 25-7740

KNOB-ARM

$4.99

$

In Stock, Qty 20+

0

4

Toro 29-9540

Spring Arm
(Superseded to 44-1010)

$45.99

$

Usually ships in 3-6 days

0

5

Toro 3-2646

End Cap

$

$

Currently unavailable

6

Toro 24-7922

CONDUIT-CONVOLUTED, SPLIT

$10.99

$

Usually ships in 3-6 days

0

7

Toro 256-196

Thrust Washer
(Superseded to 47-2910)

$13.99

$

In Stock, only 1 left!

0

8

Toro 39-7281

Upper Gear Case

$

$

Not available

9

Toro 252-97

Bearing
(Superseded to 47-7270)

$30.99

$

In Stock, only 4 left!

0

10

Toro 11-9760

Screw
(Superseded to 49-2040)

$2.49

$

In Stock, Qty 20+

0

11

Toro 40-9730

Belt Guide Bracket

$

$

Not available

12

Toro 36-4790

WASHER-THRUST

$3.49

$

Usually ships in 3-6 days

0

13

Toro 36-8070

V-BELT

$14.99

$

In Stock, Qty 19

0

14

Toro 32146-6

Nut
(Superseded to 3296-6)

$1.99

$

In Stock, Qty 20+

0

15

Toro 3256-45

WASHER-FLAT

$0.99

$

In Stock, only 3 left!

0

16

Toro 39-6740

PULLEY

$54.99

$

Usually ships in 3-6 days

0

17

Toro 32153-4

NUT-HEX, SIDE DEFORM

$1.49

$

Usually ships in 3-6 days

0

18

Toro 26-5620

Shoulder Bolt
(Superseded to 43-7260)

$17.99

$

Usually ships in 3-6 days

0

19

Toro 32144-11

SCREW-HWHTF

$7.99

$

In Stock, Qty 6

0

20

Toro 32121-99

PIN-COIL

$1.49

$

In Stock, only 2 left!

0

21

Toro 29-9560

LEVER-SHIFT

$17.99

$

Usually ships in 3-6 days

0

22

Toro 29-9520

Shift Yoke
(Superseded to 60-8870)

$24.99

$

In Stock, only 2 left!

0

23

Toro 29-9690

WASHER

$13.99

$

Usually ships in 3-6 days

0

24

Toro 29-9250

Gear 38T
(Superseded to 42-4740)

$89.99

$

In Stock, only 2 left!

0

25

Toro 36-4770

WASHER

$6.49

$

Usually ships in 3-6 days

0

26

Toro 29-9260

Gear
(Superseded to 14-2009)

$

$

Not available

27

Toro 29-9270

Gear
(Superseded to 29-9271)

$94.99

$

Usually ships in 3-6 days

0

28

Toro 39-7830

KEY RETAINER

$

$

Not available

29

Toro 29-9330

KEY-SHIFT

$27.99

$

In Stock, only 3 left!

0

30

Toro 39-4730

Sleeve Body

$

$

Currently unavailable

31

Toro 39-4720

Sleeve

$

$

Currently unavailable

32

Toro 29-9340

COLLAR-SHIFT

$44.99

$

Usually ships in 3-6 days

0

33

Toro 36-4780

WASHER-PLAIN

$7.99

$

In Stock, Qty 20+

0

34

Toro 32121-95

COIL PIN
(Superseded to 32121-108)

$6.99

$

Usually ships in 3-6 days

0

35

Toro 32121-100

ROLL PIN 3/16 X 1 IN

$1.99

$

Usually ships in 3-6 days

0

36

Toro 29-9570

BUSHING-YOKE

$11.99

$

In Stock, only 4 left!

0

37

Toro 29-9410

LOWER GEAR CASE CAST

$

$

Not available

38

Toro 29-9310

Bushing
(Superseded to 47-5220)

$

$

Not available

39

Toro 29-9390

OUTPUT SHAFT

$

$

Not available

40

Toro 253-140

Seal
(Superseded to 47-6730)

$13.99

$

In Stock, Qty 20+

0

41

Toro 256-110

Bushing
(Superseded to 47-2890)

$3.99

$

Usually ships in 3-6 days

0

42

Toro 29-9640

Pivot Arm L.H. (Incl. Ref. #40, 41 & 43)
(Superseded to 49-7710)

$

$

Not available

43

Toro 252-96

Needle Baring
(Superseded to 117-3500)

$5.49

$

In Stock, Qty 16

0

44

Toro 29-9700

WASHER

$8.99

$

Usually ships in 3-6 days

0

45

Toro 39-7730

LH CLUTCH & PINION

$

$

Not available

46

Toro 32121-98

Pin
(Superseded to 32121-88)

$8.49

$

In Stock, only 2 left!

0

47

Toro 38-2930

Wheel & Tire Assy. (Incl. Ref. #48)

$

$

Not available

48

Toro 251-180

BEARING-BALL
(Superseded to 116-7257)

$18.99

$

In Stock, only 1 left!

0

49

Toro 3290-393

SPRING WASHER

$5.49

$

Usually ships in 3-6 days

0

50

Toro 26-4430

WHEEL BOLT

$54.99

$

Usually ships in 3-6 days

0

51

Toro 40-1940

WASHER

$2.99

$

In Stock, Qty 20+

0

52

Toro 36-5630

Cover-Wheel
(Superseded to 36-5630-03)

$36.99

$

Usually ships in 3-6 days

0

53

Toro 29-9350

Botching Shaft
(Superseded to 52-5410)

$

$

Not available

54

Toro 39-4670

Gear Bevel

$

$

Currently unavailable

55

Toro 39-6630

14 T GEAR

$

$

Not available

56

Toro 39-6640

16 T GEAR

$

$

Not available

57

Toro 39-6650

GEAR-18T

$14.99

$

In Stock, only 2 left!

0

58

Toro 39-4680

MTG BRKT WA B

$65.99

$

Usually ships in 3-6 days

0

59

Toro 39-7840

Key Square
(Superseded to 39-7842)

$2.99

$

In Stock, Qty 13

0

60

Toro 32151-57

RING-RETAINING

$5.49

$

In Stock, only 3 left!

0

61

Toro 39-6660

PINION-BEVEL

$42.99

$

In Stock, only 1 left!

0

62

Toro 8-6799

Input Shaft & Pinion Assembly (Incl. Ref. #61)

$

$

Not available

63

Toro 3257-1

KEY-WOODRUFF

$2.99

$

In Stock, Qty 14

0

64

Toro 32144-44

SCREW-HWH, THREAD ROLL

$1.49

$

In Stock, only 2 left!

0

Toro 39-5800

Gear Case Assembly-Complete

Note: Not illustrated

$

$

Not available
