20790 - Toro Walk-Behind Mower (SN: 000000001 - 000999999) (1980) ENGINE ASSEMBLY Parts Diagram

Walk-Behind Mower

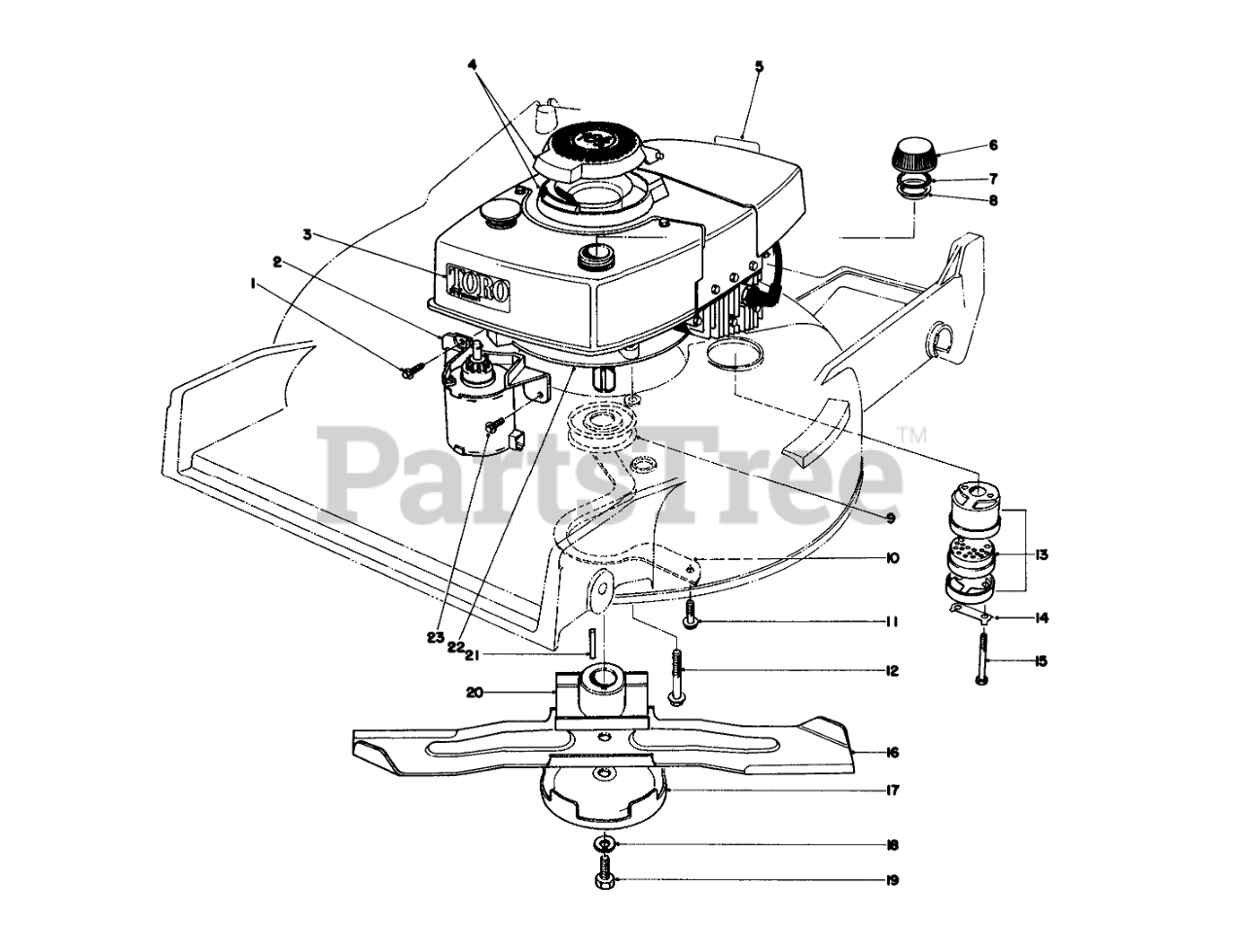

ENGINE ASSEMBLY Parts Diagram

  • Title

1

Toro 11-9760

Screw
(Superseded to 49-2040)

$2.49

$

In Stock, Qty 20+

0

2

Toro 25-3940

Starter Motor

$

$

Not available

3

Toro 40-2570

Decal
(Superseded to 70-2200)

$6.49

$

Usually ships in 3-6 days

0

4

Toro 38-4720

COVER ASM

$

$

Not available

5

Toro 37-1580

Decal-Maintenan

$

$

Not available

6

Toro 27-7870

Gas Cap (Incl. Ref. #7 & 8)
(Superseded to 42-0682)

$

$

Not available

7

Toro 2210-144

GASKET

$10.99

$

Usually ships in 3-6 days

0

8

Toro 2210-143

GAS CAP BAFFLE

$

$

Not available

9

Toro 21-5580

DRIVER PULLEY

$

$

Not available

10

Toro 39-1840

BELT GUIDE

$

$

Not available

11

Toro 11-9760

Screw
(Superseded to 49-2040)

$2.49

$

In Stock, Qty 20+

0

12

Toro 11-0590

SCREW-HWHTF
(Superseded to 32144-102)

$3.49

$

Usually ships in 3-6 days

0

13

Toro 5-4769

Muffler Assembly (Incl. Ref. 14 & 15)

$65.99

$

Usually ships in 3-6 days

0

14

Toro 3-5094

CLIP - LOCKING

$12.99

$

Usually ships in 3-6 days

0

15

Toro 321-20

SCREW-HH

$7.49

$

Usually ships in 3-6 days

0

16

Toro 26-0880

Blade
(Superseded to 107-4276-03)

$28.99

$

In Stock, only 4 left!

0

17

Toro 8-4240

AntiScalp Cup
(Superseded to 80-2770)

$17.99

$

In Stock, only 2 left!

0

18

Toro 3253-22

WASHER-LOCK

$2.99

$

In Stock, only 3 left!

0

19

Toro 23-0080

BLADE SCREW

$

$

Not available

20

Toro 23-0110

BLADE RETAINER WA(BLACK)
(Superseded to 23-0110-03)

$

$

Not available

21

Toro 27-8590

KEY-SQUARE

$6.49

$

Usually ships in 3-6 days

0

22

Toro 221-614

Engine

$

$

Currently unavailable

Toro 221-630

Engine

Note: Not illustrated

$

$

Currently unavailable

23

Toro 12-3270

SCREW

$3.49

$

In Stock, Qty 13

0

Toro 33-2930

Rope-Starter

Note: Not illustrated

$

$

Not available
