20789 - Toro 53cm Recycler Walk-Behind Mower (SN: 200000001 - 200999999) (2000) STARTER ASSEMBLY ENGINE GTS 200 (ONLY ON: 20791) Parts Diagram

53cm Recycler Walk-Behind Mower

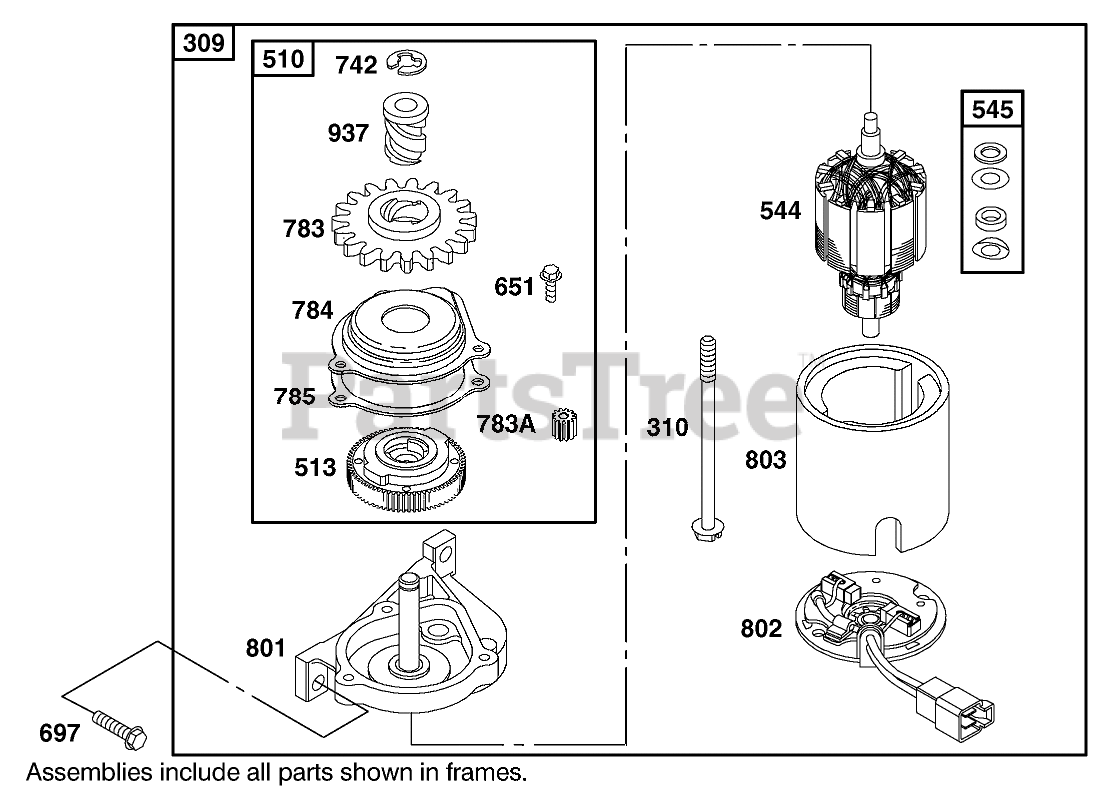

STARTER ASSEMBLY ENGINE GTS 200 (ONLY ON: 20791) Parts Diagram

  • Title
309

Toro 77-8670

MOTOR - STARTER

$

$

Not available

310

Toro 99-1019

SCREW

$

$

Not available

510

Toro 77-8910

DRIVE SET

$153.99

$

Usually ships in 3-6 days

0

513

Toro 99-1021

CLUTCH-DRIVE

$

$

Not available

544

Toro 99-1022

Armature-Starter
(Superseded to 77-8670)

$

$

Not available

545

Toro 77-8740

WASHER ASSEMBLY

$

$

Not available

651

Toro 99-1017

SCREW

$

$

Not available

697

Toro 99-1018

SCREW

$

$

Not available

742

Toro 77-8830

RETAINER - LOCK

$

$

Not available

783

Toro 99-1023

GEAR-STARTER

$

$

Not available

783A

Toro 99-1024

GEAR-STARTER

$

$

Not available

784

Toro 99-1025

COVER-GEAR

$

$

Not available

785

Toro 99-1026

GASKET-COVER

$

$

Not available

801

Toro 99-1027

CAP-DRIVE

$331.99

$

Usually ships in 3-6 days

0

802

Toro 99-1028

CAP-END

$96.99

$

Usually ships in 3-6 days

0

803

Toro 99-1029

HOUSING-STARTER

$186.99

$

Usually ships in 3-6 days

0

937

Toro 99-1030

SPLINE-STARTER

$29.99

$

Usually ships in 3-6 days

0
