20787 - Toro 53cm Recycler Walk-Behind Mower (SN: 089000001 - 089999999) (1998) GEAR CASE ASSEMBLY Parts Diagram

53cm Recycler Walk-Behind Mower

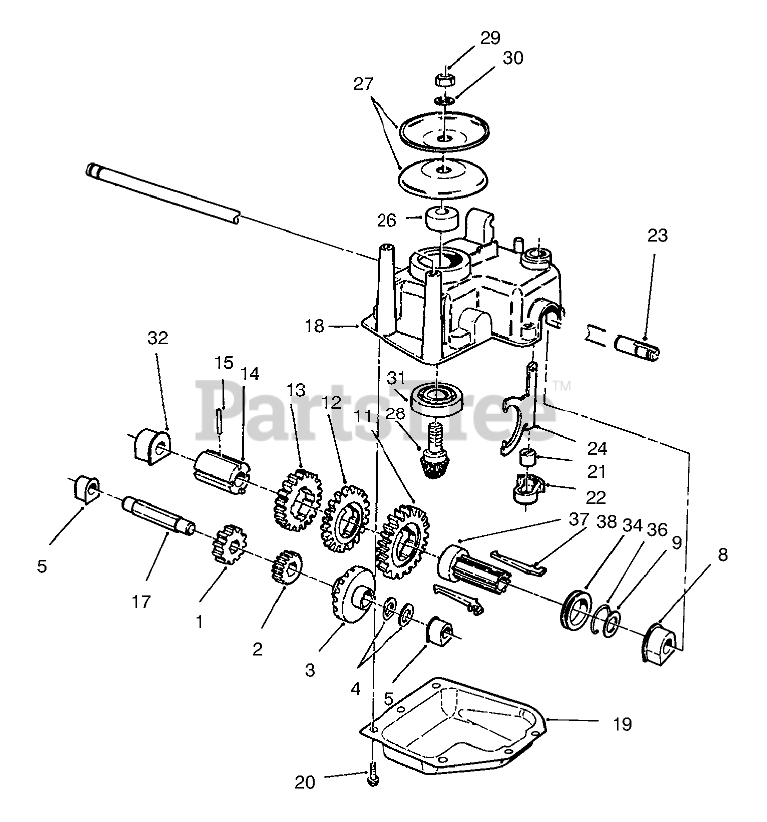

GEAR CASE ASSEMBLY Parts Diagram

  • Title
1

Toro 55-3800

PINION-25T

$46.99

$

Usually ships in 3-6 days

0

2

Toro 55-3780

PINION-20T

$40.99

$

In Stock, only 1 left!

0

3

Toro 55-3760

Gear-Bevel
(Superseded to 104-7668)

$34.99

$

In Stock, only 1 left!

0

4

Toro 36-4791

WASHER-THRUST

$2.49

$

In Stock, Qty 20+

0

5

Toro 60-8750

BUSHING

$6.99

$

In Stock, Qty 10

0

8

Toro 60-8770

BUSHING-OUTPUT

$7.99

$

In Stock, only 3 left!

0

9

Toro 36-4780

WASHER-PLAIN

$7.99

$

In Stock, only 3 left!

0

11

Toro 55-3770

GEAR-49T

$73.99

$

Usually ships in 3-6 days

0

12

Toro 55-3790

GEAR-44T

$73.99

$

Usually ships in 3-6 days

0

13

Toro 55-3810

GEAR-39T

$58.99

$

Usually ships in 3-6 days

0

14

Toro 60-8790

SLEEVE-GEAR

$58.99

$

Usually ships in 3-6 days

0

15

Toro 32121-120

PIN-SPRING

$1.99

$

In Stock, only 2 left!

0

17

Toro 60-8800

SHAFT-INTERMEDIATE
(Superseded to 614696)

$108.99

$

Usually ships in 3-6 days

0

18

Toro 60-8710

CASE-GEAR, UPPER

$

$

Not available

19

Toro 60-8730

Cover-Gearcase
(Superseded to 60-8730-03)

$

$

Not available

20

Toro 49-2040

SCREW-HWHTF

$2.49

$

In Stock, Qty 20+

0

21

Toro 29-9570

BUSHING-YOKE

$11.99

$

In Stock, only 4 left!

0

22

Toro 60-8810

RETAINER-FORK, SHIFT

$

$

Not available

23

Toro 65-4770

SHAFT-OUTPUT

$177.99

$

In Stock, only 1 left!

0

24

Toro 60-8870

YOKE-SHIFT

$23.99

$

In Stock, only 2 left!

0

26

Toro 62-6660

SPACER

$1.49

$

In Stock, only 3 left!

0

27

Toro 60-8840

Pulley Half
(Superseded to 100-1176)

$9.99

$

In Stock, only 2 left!

0

28

Toro 60-8890

Gear-Pinion
(Superseded to 104-7667)

$18.99

$

In Stock, only 1 left!

0

29

Toro 3296-5

NUT-HEX

$3.49

$

In Stock, Qty 8

0

30

Toro 3256-24

WASHER-FLAT

$0.99

$

In Stock, Qty 12

0

31

Toro 38-7820

BEARING-BALL

$13.99

$

In Stock, Qty 17

0

32

Toro 60-8850

BUSHING

$8.49

$

In Stock, Qty 17

0

34

Toro 76-0770

COLLAR-SHIFT

$21.99

$

In Stock, only 1 left!

0

36

Toro 65-5250

CLIP-SPRING

$0.99

$

In Stock, Qty 15

0

37

Toro 76-0780

SLEEVE-KEY, SHIFT

$6.99

$

In Stock, only 3 left!

0

38

Toro 76-0760

KEY-SHIFT

$

$

Not available

Toro 62-6673

GEARCASE ASM

$876.99

$

Usually ships in 3-6 days

0
